ENGINE MOUNTING XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & XLT S (4928842884C005)

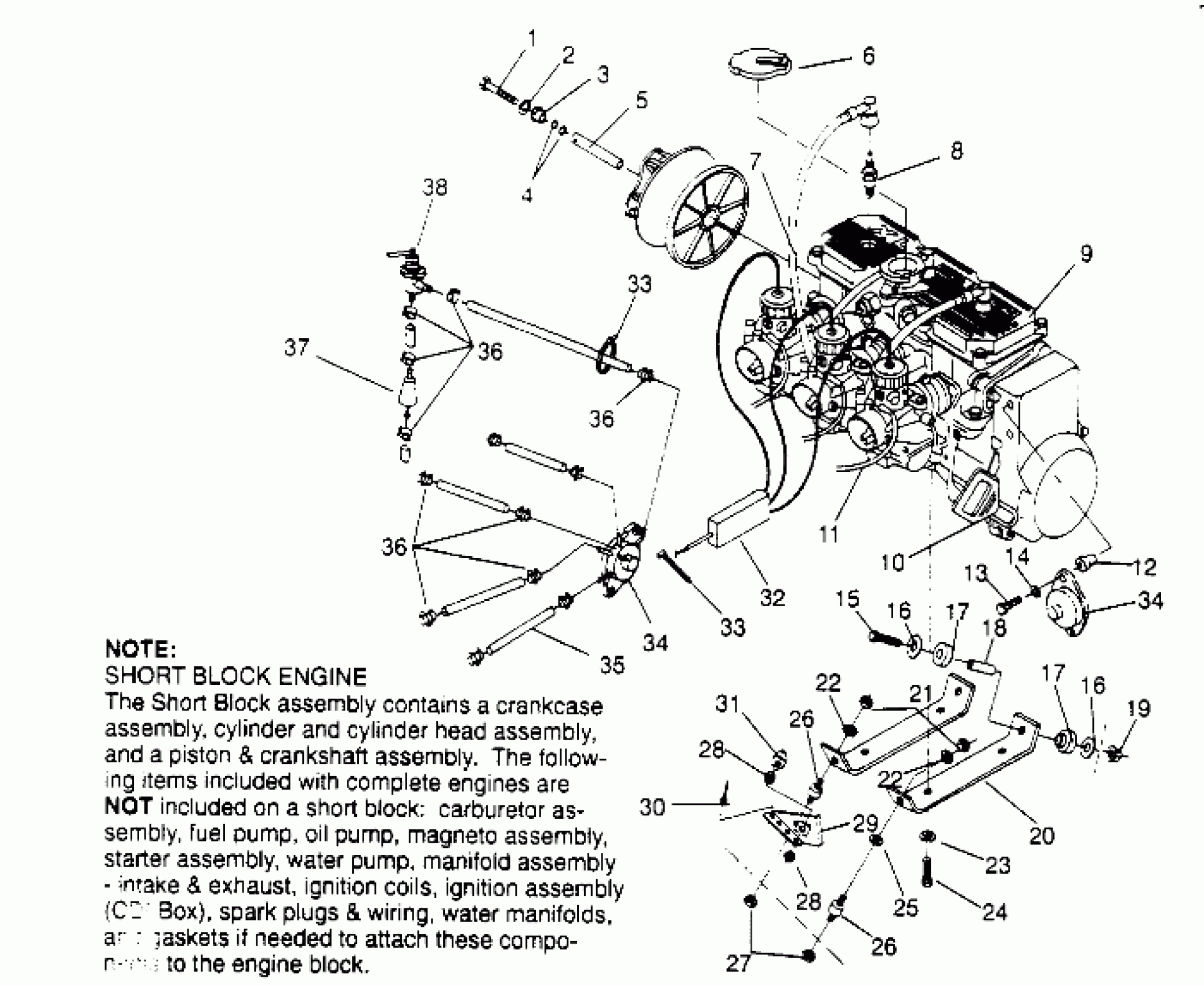

Polaris XLT - 0950756 ENGINE MOUNTING XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & XLT S (4928842884C005) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE Substituted by 2511256
2511217
Unavailable
7
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
8
SPARKPLUG, RN3C(8)
3070166
$3.99
9
ENG.(S.B.)EC58PL-03 [Cannot Purchase as Assembly]
3084684
Unavailable
10
HANDLE-RECOIL
5430520
Unavailable
11
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
12
NUT-WELL(10)
7541923
$5.59
13
SCREW(10)
7512279
$1.49
14
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
15
SCREW(10)
7512530
$5.59
16
WASHER(10)
7555740
$1.59
16
WASHER(10)
7555740
$1.59
17
MOUNT, ENGINE
5410390
Unavailable
17
MOUNT, ENGINE
5410390
Unavailable
18
TUBE,SPACER
5333354
Unavailable
19
NUT,FLANGE(10)
7542522
$5.59
20
PLATE,MTR.MT,RH Substituted by 5242182
5240796
Unavailable
20
PLATE,MTR.MT,LH
5240795
Unavailable
21
NUT-LOCK(10)
7542439
$1.49
22
WASHER(10) Substituted by 7555806
7555720
$0.79
22
WASHER(10) Substituted by 7555806
7555720
$0.79
23
WASHER LOCK(10)
7553101
$3.99
24
BOLT(10)
7512575
Unavailable
25
WASHER,FLAT(10)
7555915
$3.19
26
MOUNT
3110022
Unavailable
26
MOUNT
3110022
Unavailable
27
NUT LOCK(10)
7542411
$3.19
28
NUT, JAM(10)
7542432
$3.99
28
NUT, JAM(10)
7542432
$3.99
29
LIMITER
1011503-067
Unavailable
30
RIVET-3/16-.090-.290
7661637
$1.49
31
MOUNT,TORQUESTOP,RUBBER
3110034
Unavailable
32
CABLE,THROTTLE,W/OIL
7080458
$157.84
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
34
Fuel Pump (See Pg. A39)
-------
Unavailable
34
Fuel Pump (See Pg. A39)
-------
Unavailable
35
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
36
HOSE CLAMP, RED
7080003
$1.49
36
HOSE CLAMP, RED
7080003
$1.49
36
HOSE CLAMP, RED
7080003
$1.49
37
FILTER FUEL,(10)
2530008
$4.84
38
VALVE,FUEL SHUT-OFF
7052039
Unavailable
