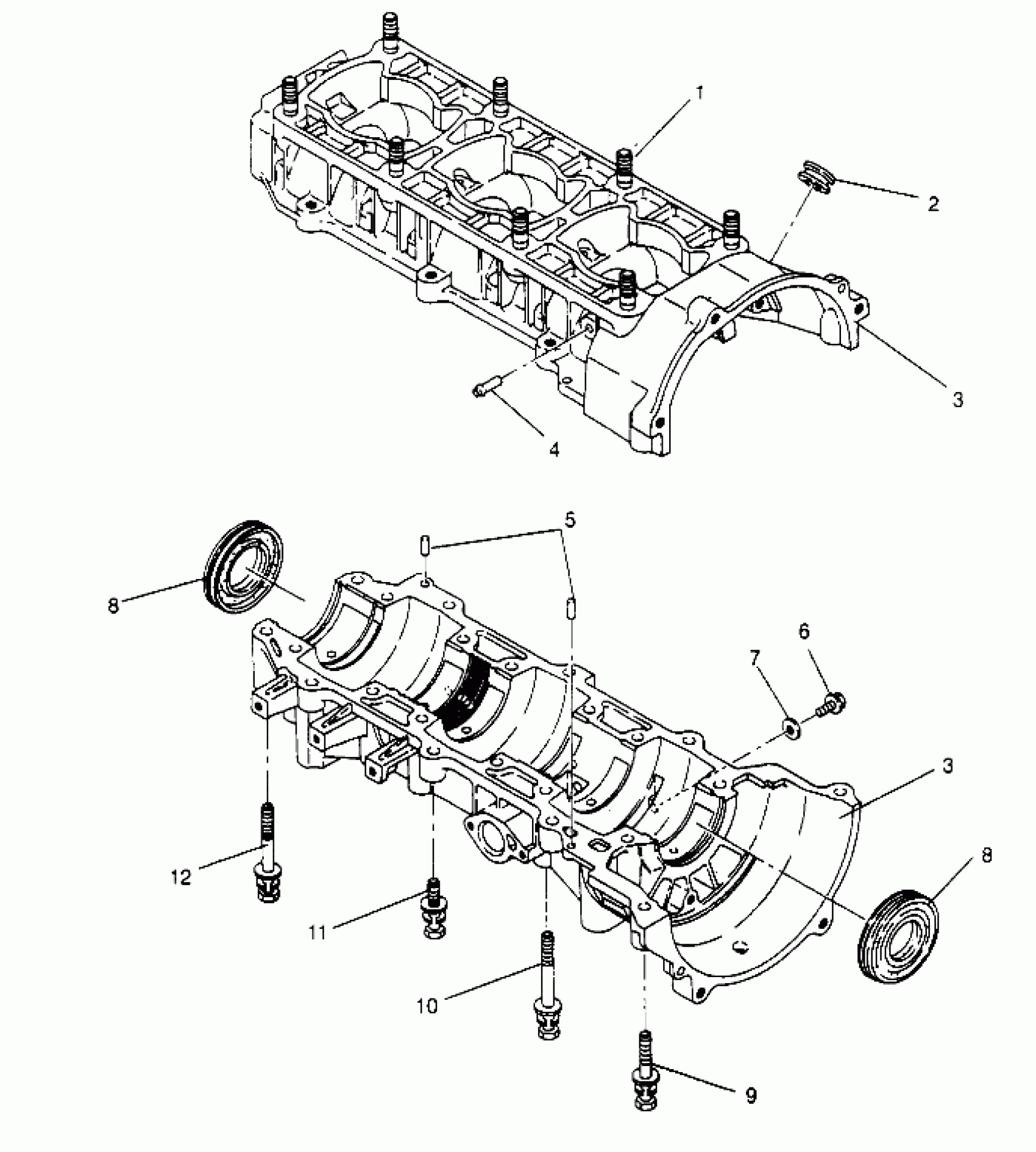

Polaris XLT - 0950756 CRANKCASE ASSEMBLY XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & XL (4928842884C009) Diagram

#

Description

Price

1

STUD Substituted by 3084119

3080745

Unavailable

2

GROMMET

3082875

$7.99

3

CRANKCASE ASM. (Incl. 1, 4-5, 9-12)

3084669

$744.99

3

CRANKCASE ASM. (Incl. 1, 4-5, 9-12)

3084669

$744.99

4

PIPE, PULSE (Pulse)

3083798

$9.52

5

PIN, DOWEL Substituted by 3086838

3080103

$7.14

6

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

7

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

8

SEAL, OIL(10)

3083045

$36.41

8

SEAL, OIL(10)

3083045

$36.41

9

BOLT AND WASHER ASSY.

3082097

Unavailable

10

BOLT&WASHER ASM.

3084670

Unavailable

11

BOLT&WASHER ASM.

3084225

$3.99

12

BOLT&WASHER ASM.

3084671

Unavailable
