COOLING SYSTEM XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & XLT SK (4928842884B008)

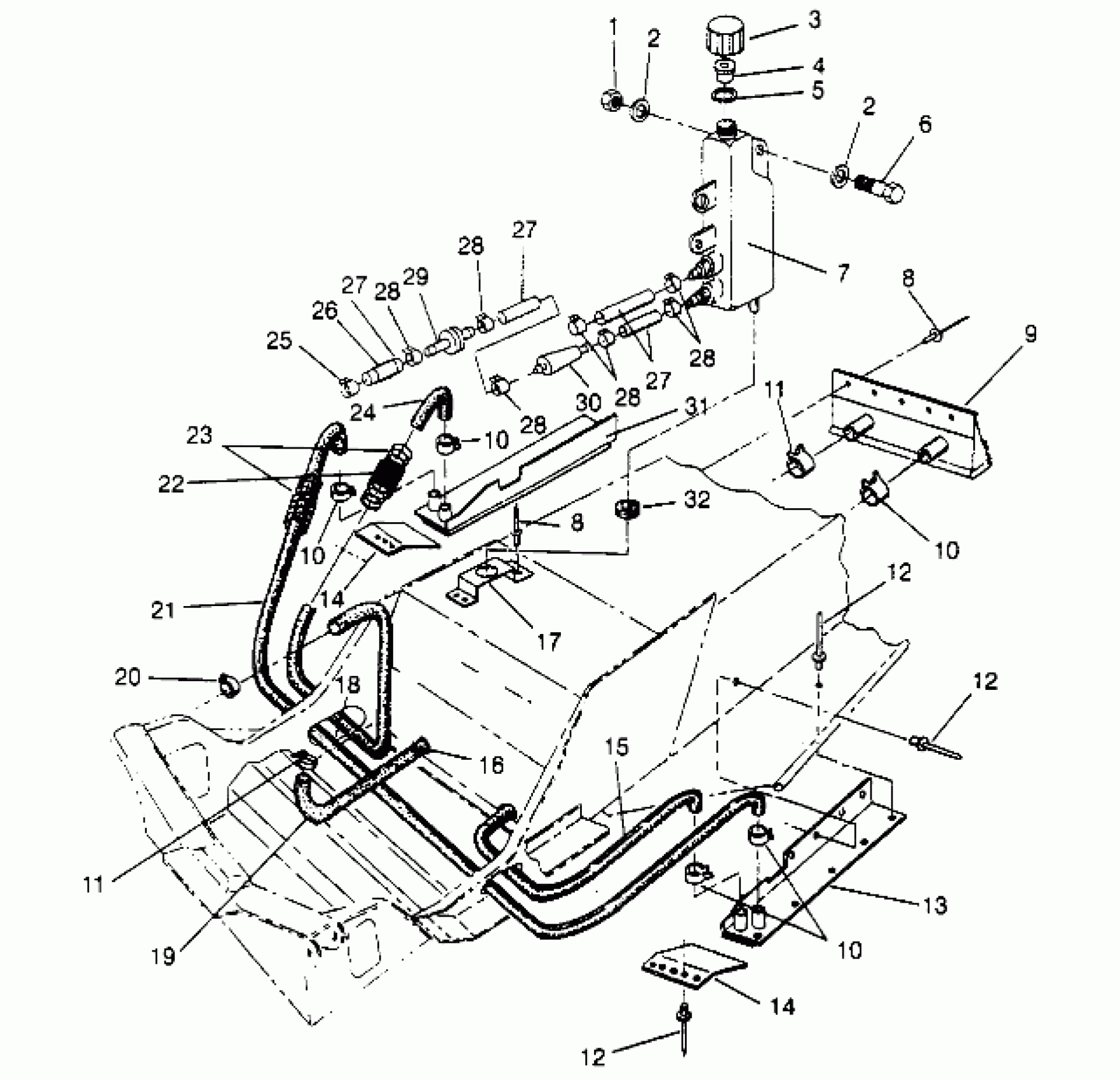

Polaris XLT - 0950756 COOLING SYSTEM XLT 0950756, XLT SKS 0950556, XLT SKS EURO E950556 & XLT SK (4928842884B008) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
EXT.,LH COOLING Substituted by 2511257
2511228
Unavailable
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
HOSE, CENTER
5410673
Unavailable
17
BRACKET
5223985
Unavailable
18
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
19
SPRING,HOSE RETAINER
7042041
Unavailable
20
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
21
HOSE-CROSSOVER
5410324
Unavailable
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
23
SPRING,HOSE RETAINER
7041079
$4.95
24
HOSE,ENG/SIDE EXT.
5410738
Unavailable
25
CLAMP-HOSE(10)
7080134
Unavailable
26
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
27
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
27
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
27
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
VALVE, CHECK
7052038
$10.51
30
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
31
EXT.,RH.COOLING. Substituted by 2511258
2511229
Unavailable
32
GROMMET RUBBER
5410021
Unavailable
