REAR TORQUE ARM ASSEMBLY XLT 0940767, XLT SP 0930667 & XLT SKS 0940567 (4925022502024A)

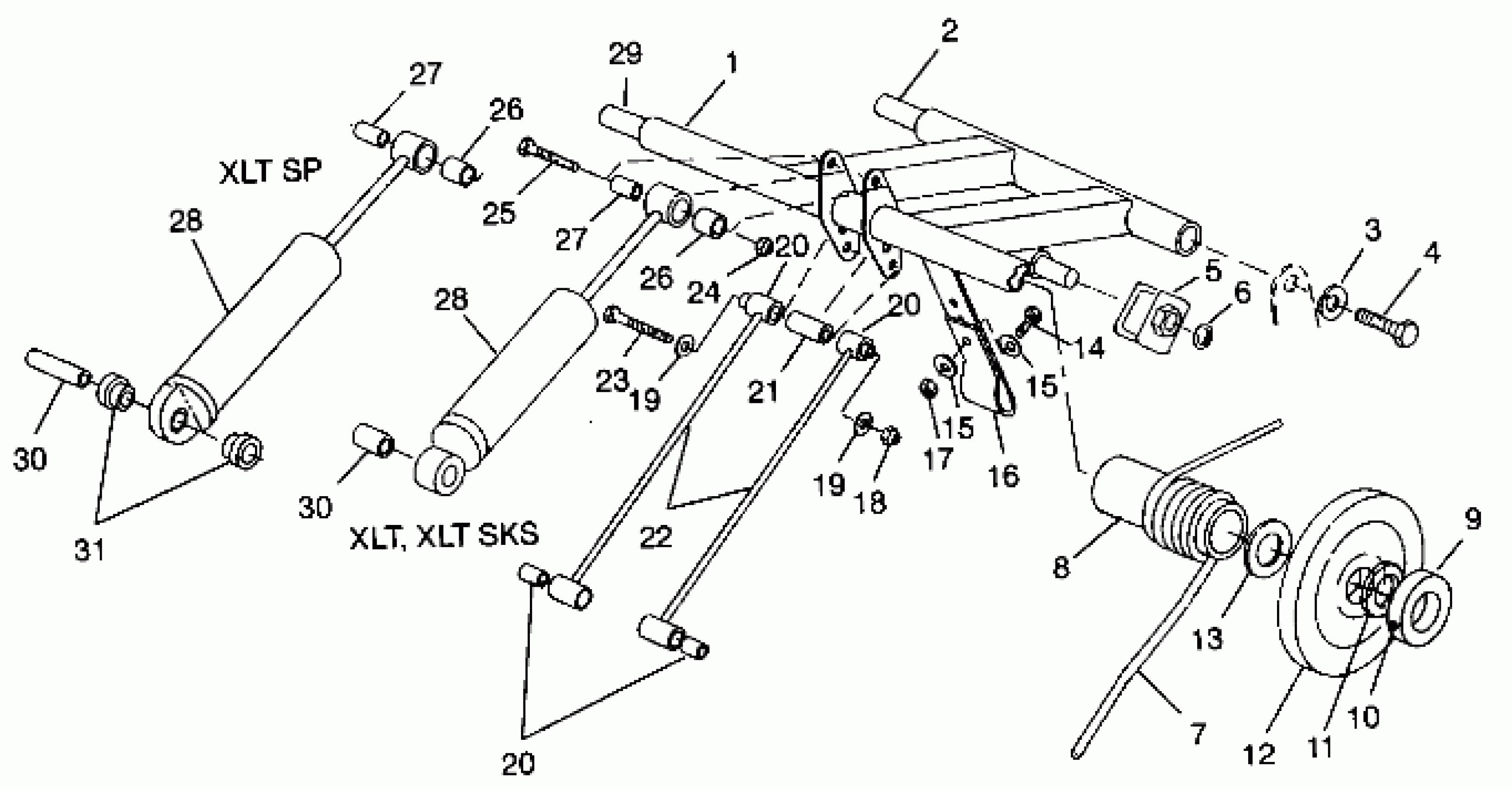

Polaris XLT - 0940767 REAR TORQUE ARM ASSEMBLY XLT 0940767, XLT SP 0930667 & XLT SKS 0940567 (4925022502024A) Diagram
#
1
ARM,R.TORQUE,BLK.
1540793-067
Unavailable
2
SHAFT,R.TORQUE ARM Substituted by 5020727
5020559
Unavailable
3
WASHER(10)
7552603
$1.49
4
BOLT(10)
7515526
$1.19
5
ROLLER, SPRING ADJ.
5431168
Unavailable
6
CLIP-PUSH ON
7080394
$2.39
7
SPRING,RH,R.SUSP,BLK.
7041249-067
$99.21
7
SPRING,LH,R.SUSP,BLK.
7041248-067
Unavailable
8
Tube, Spring
5521234
Unavailable
9
COLLAR-BRG. LOCK
5010155
Unavailable
10
SCREW-SET(10)
7512257
$3.99
11
WASHER-WAVE(10)
7571605
$6.39
12
Wheel, Carrier
1543023
Unavailable
13
WASHER SPECIAL(10)
7556509
$1.59
14
BOLT(10)
7512247
$2.39
15
WASHER(10)
7558221
$2.39
15
WASHER(10)
7558221
$2.39
16
STRAP, LIMITER
5410587
Unavailable
17
NUT, LOCK(10)
7542103
$5.59
18
NUT FLEX LOC,(10)
7542402
$6.39
19
WASHER(10) Substituted by 7555806
7555720
$0.79
19
WASHER(10) Substituted by 7555806
7555720
$0.79
20
BUSHING,PIVOT TUBE
5020561
$1.59
20
BUSHING,PIVOT TUBE
5020561
$1.59
20
BUSHING,PIVOT TUBE
5020561
$1.59
21
SPACER,R.PIVOT ARM
5333026
$3.03
22
ROD, SUSP,BLK.
1540792-067
Unavailable
23
SCREW(10)
7512463
$5.43
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
25
BOLT(10)
7512329
$3.99
26
BUSHING
5430537
$3.99
26
BUSHING
5430537
$3.99
27
BUSHING,R.SHOCK
5333030
Unavailable
27
BUSHING,R.SHOCK
5333030
Unavailable
28
SHOCK,R.TORQUE ARM (XLT,SKS)
7041331
Unavailable
28
SHOCK,GAS,REAR (SP)
7041295
Unavailable
28
SHOCK,R.TORQUE ARM (XLT,SKS)
7041331
Unavailable
28
SHOCK,GAS,REAR (SP)
7041295
Unavailable
29
SHAFT, MTG, REAR
5020570
Unavailable
30
BUSHING, 1.40
5020657
$15.99
30
BUSHING, 1.40
5020657
$15.99
31
BUSHING,SHOCK,.340
5431542
Unavailable
