FRONT TORQUE ARM ASSEMBLY XLT 0940767, XLT SP 0940667 & XLT SKS 0940567 (4925022502023A)

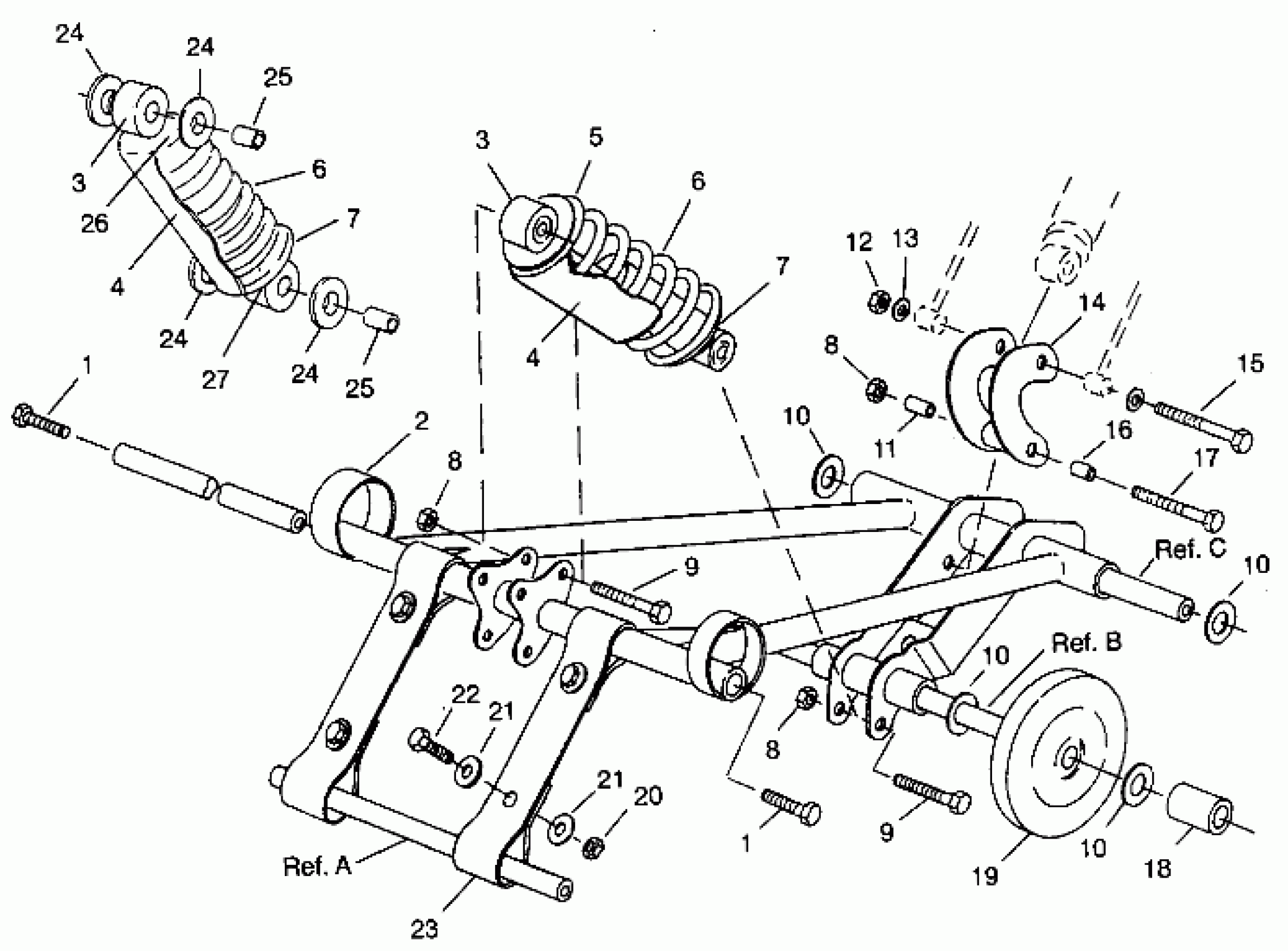

Polaris XLT - 0940767 FRONT TORQUE ARM ASSEMBLY XLT 0940767, XLT SP 0940667 & XLT SKS 0940567 (4925022502023A) Diagram
#
1
BOLT(10)
7515432
Unavailable
1
BOLT(10)
7515432
Unavailable
2
ARM,FR.TORQUE,BLK.
1540794-067
Unavailable
3
SHOCK,CTR.SUSP. (XLT, SKS)
7041281
Unavailable
3
SHOCK,GAS,MIDDLE (SP)
7041294
Unavailable
3
SHOCK,CTR.SUSP. (XLT, SKS)
7041281
Unavailable
3
SHOCK,GAS,MIDDLE (SP)
7041294
Unavailable
4
SHIELD-SPRING
5430671
$24.27
4
SHIELD-SPRING
5430671
$24.27
5
RETAINER-TOP
5220225
$10.39
6
SPRING-SHOCK SUSP (XLT, SKS)
7041140
Unavailable
6
SPRING,BLACK,COMP. (SP)
7041253-067
$95.22
6
SPRING-SHOCK SUSP (XLT, SKS)
7041140
Unavailable
6
SPRING,BLACK,COMP. (SP)
7041253-067
$95.22
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
NUT-LOCK(10)
7542439
$1.49
8
NUT-LOCK(10)
7542439
$1.49
8
NUT-LOCK(10)
7542439
$1.49
9
BOLT(10)
7515415
$1.49
9
BOLT(10)
7515415
$1.49
10
MACHINERY BUSHING(10)
7556301
$3.19
10
MACHINERY BUSHING(10)
7556301
$3.19
10
MACHINERY BUSHING(10)
7556301
$3.19
10
MACHINERY BUSHING(10)
7556301
$3.19
11
BUSHING,PIVOT TUBE
5020561
$1.59
12
NUT FLEX LOC,(10)
7542402
$6.39
13
WASHER(10) Substituted by 7555806
7555720
$0.79
14
SHOCK ARM WELD,BLK.
1540791-067
$55.56
15
BOLT(10)
7515414
Unavailable
16
Spacer
5333028
$1.59
17
BOLT(10)
7515438
$4.79
18
SPACER, OUTER
5332784
Unavailable
19
Asm., Bogie Wheel (See Pg. A21, Ref. 24 - XLT, SKS) (See Pg. A22, Ref. 22 - SP)
-------
Unavailable
20
NUT-5/16-18 NYLOK-Y
7542324
$1.49
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
BOLT(10)
7515307
$3.99
23
STRAP, LIMITER
5410397
Unavailable
24
BUSHING,SHOCK,.260 Substituted by 1500184 (SP)
5431541
Unavailable
24
BUSHING,SHOCK,.260 Substituted by 1500184 (SP)
5431541
Unavailable
24
BUSHING,SHOCK,.260 Substituted by 1500184 (SP)
5431541
Unavailable
24
BUSHING,SHOCK,.260 Substituted by 1500184 (SP)
5431541
Unavailable
25
BUSHING, (1.24) (SP)
5020640
Unavailable
25
BUSHING, (1.24) (SP)
5020640
Unavailable
26
RETAINER,SPRING,SLOTTED (SP)
5020618
$24.99
27
RETAINER, SPRING BODY (SP)
5020617
Unavailable
