ENGINE MOUNTING XLT 0940767, XLT SP 0940667 & XLT SKS 0940567 (4925022502027A)

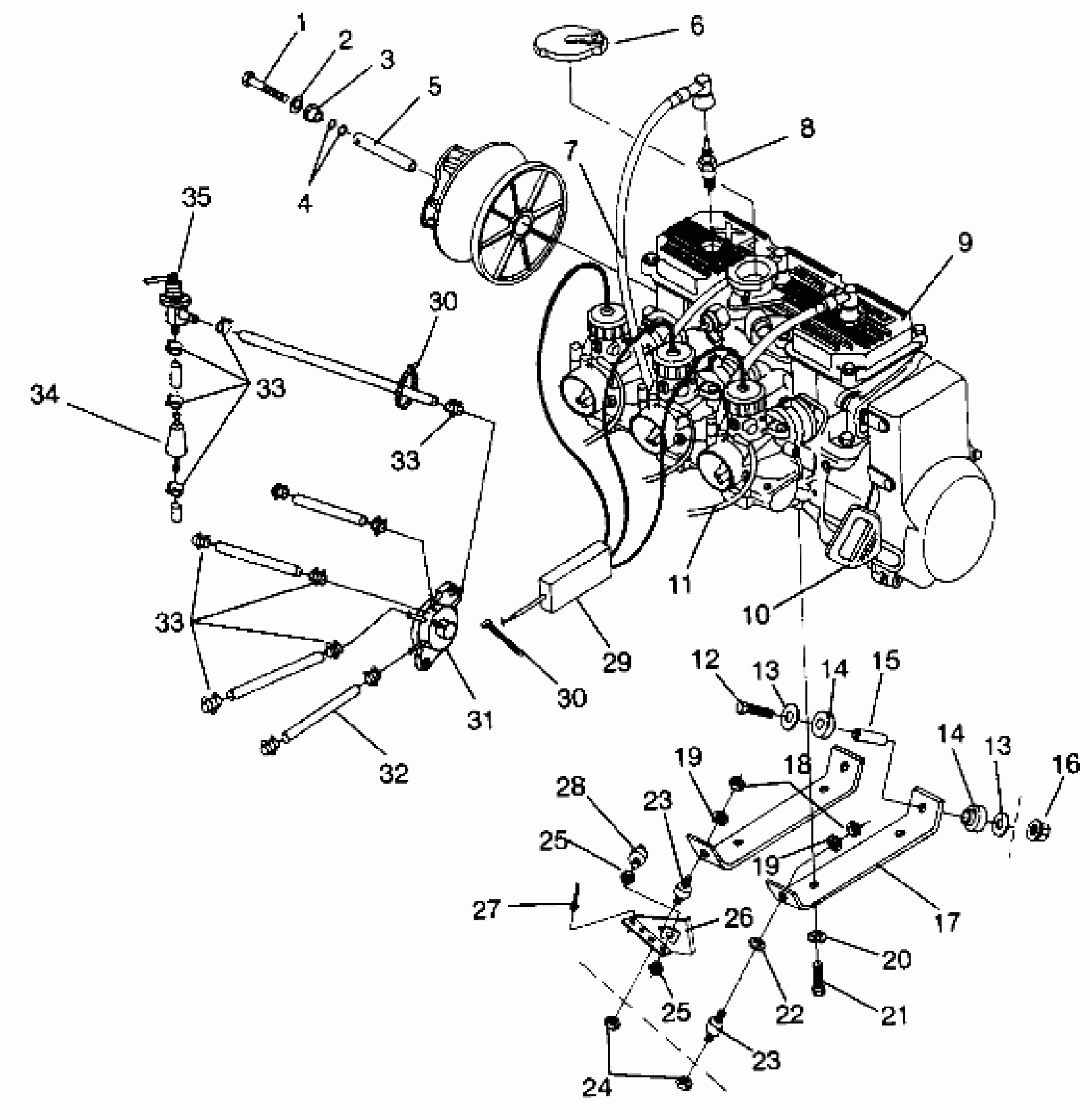

Polaris XLT - 0940767 ENGINE MOUNTING XLT 0940767, XLT SP 0940667 & XLT SKS 0940567 (4925022502027A) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE Substituted by 2511256
2511217
Unavailable
7
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
8
SPARKPLUG, RN3C(8)
3070166
$3.99
9
ENG.EC58PL-01 [No Longer Available]
1211517
Unavailable
9
ENG.(S.B.)EC58PL-03 [Cannot Purchase as Assembly]
3084684
Unavailable
10
HANDLE-RECOIL
5430520
Unavailable
11
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
12
SCREW(10)
7512530
$5.59
13
WASHER(10)
7555740
$1.59
13
WASHER(10)
7555740
$1.59
14
MOUNT, ENGINE
5410390
Unavailable
14
MOUNT, ENGINE
5410390
Unavailable
15
SPACER, (MTR.MT.)
5332778
Unavailable
16
NUT,FLANGE(10)
7542522
$5.59
17
PLATE,LH MTR.MT.
5222761
Unavailable
17
PLATE,RH MTR.MT.
5222762
$61.90
18
NUT-LOCK(10)
7542439
$1.49
19
WASHER(10) Substituted by 7555806
7555720
$0.79
19
WASHER(10) Substituted by 7555806
7555720
$0.79
20
WASHER LOCK(10)
7553101
$3.99
21
BOLT(10)
7512575
Unavailable
22
WASHER(10)
7555721
$1.49
23
MOUNT
3110022
Unavailable
23
MOUNT
3110022
Unavailable
24
NUT LOCK(10)
7542411
$3.19
25
NUT, JAM(10)
7542432
$3.99
25
NUT, JAM(10)
7542432
$3.99
26
LIMITER
1011503-067
Unavailable
27
RIVET-3/16-.090-.290
7661637
$1.49
28
MOUNT,TORQUESTOP,RUBBER
3110034
Unavailable
29
CABLE,THROTTLE,W/OIL
7080458
$157.84
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
Fuel Pump (See Pg. A39, Ref. 1)
-------
Unavailable
32
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
33
HOSE CLAMP, RED
7080003
$1.49
33
HOSE CLAMP, RED
7080003
$1.49
33
HOSE CLAMP, RED
7080003
$1.49
34
FILTER FUEL,(10)
2530008
$4.84
35
VALVE,FUEL SHUT-OFF
7052039
Unavailable
