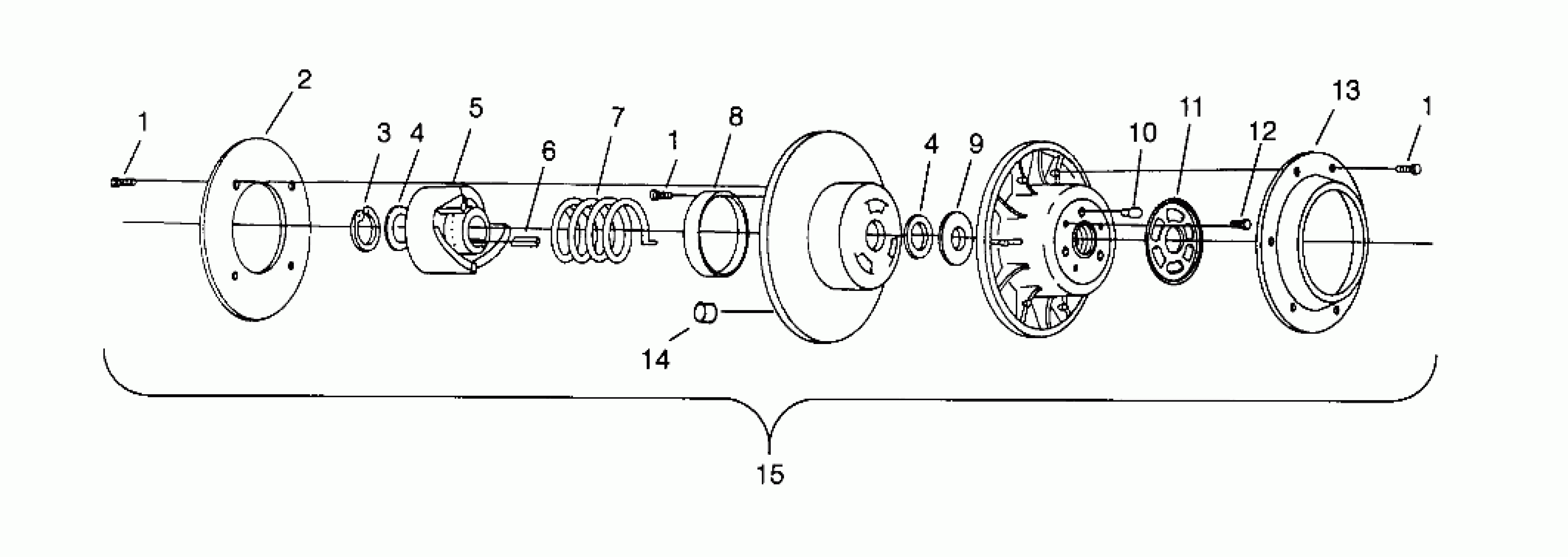

Polaris XLT - 0940767 DRIVEN CLUTCH ASSEMBLY XLT 0940767, XLT SP 0940667 & XLT SKS 0940567 (4925022502C002) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE

5210749

$30.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10)

7556804

$1.49

4

WASHER(10)

7556804

$1.49

5

RAMP,DRIVEN,34 DEGREE

5130896

Unavailable

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,BLUE,DRIVEN CLUTCH (Blue)

7041296

Unavailable

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER,DRIVE CLUTCH(10)

7555865

$6.39

10

PIN, CLUTCH

5020653

$34.99

11

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

12

SCREW(10)

7515133

$3.99

13

CAP DRIVEN

5230101

Unavailable

14

BUTTON-RAMP,(10)

5430466

$6.46

15

CLUTCH,34DEG.ADJ,DRIVEN Substituted by 1321925 (Incl. 1-13)

1322156

Unavailable
