COOLING SYSTEM XLT 0940767, XLT SP 0940667 & XLT SKS 0940567 (4925022502015A)

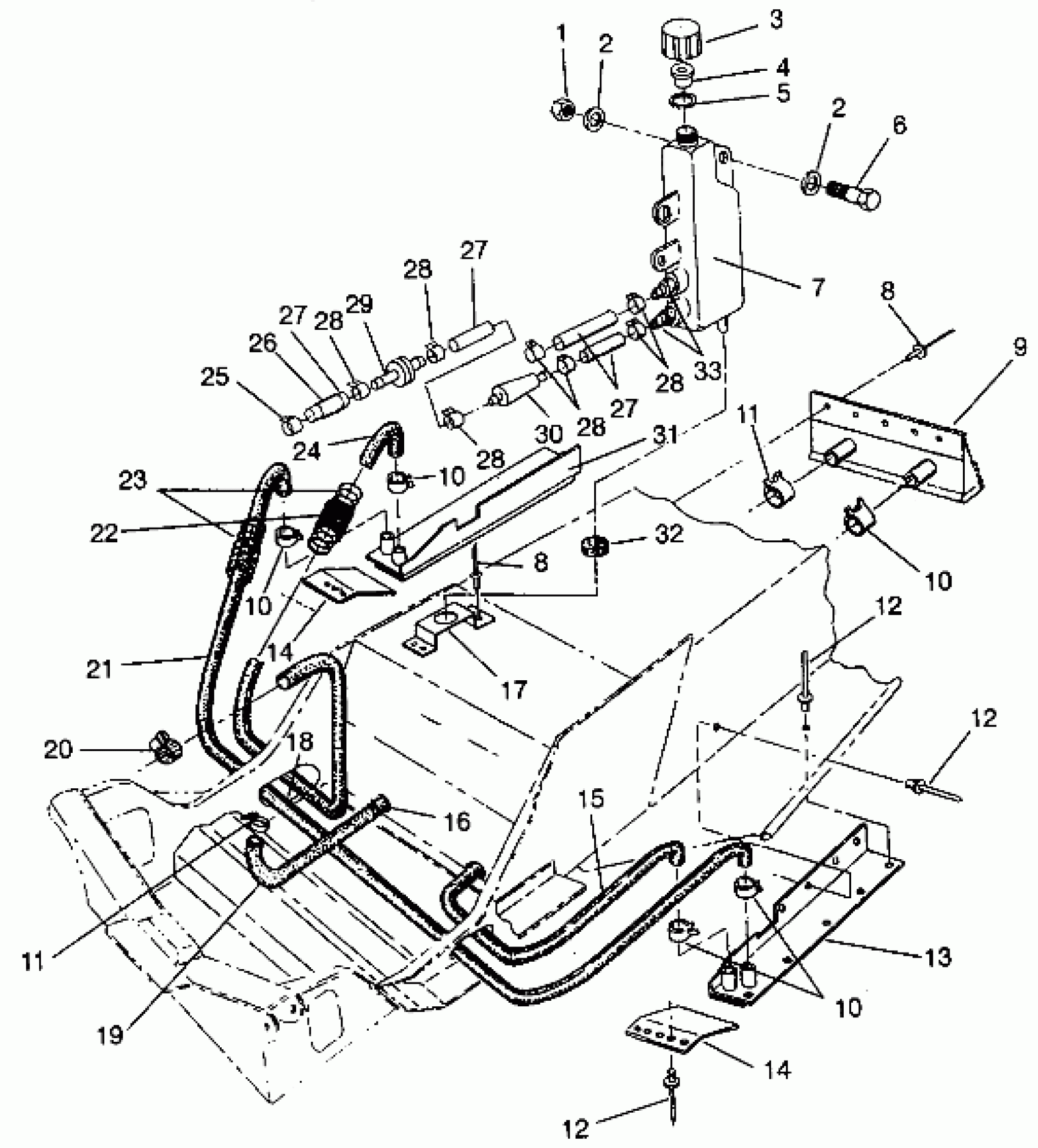

Polaris XLT - 0940767 COOLING SYSTEM XLT 0940767, XLT SP 0940667 & XLT SKS 0940567 (4925022502015A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE, OVERFLOW Substituted by 5431733
5431054
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLING WELD,LH
2511223
$113.32
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
HOSE, CENTER
5410673
Unavailable
17
BRACKET
5223985
Unavailable
18
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
19
SPRING,HOSE RETAINER
7042041
Unavailable
20
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
21
HOSE-CROSSOVER
5410324
Unavailable
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
23
SPRING,HOSE RETAINER
7041079
$4.95
24
HOSE,ENG/SIDE EXT. (XLT, SKS)
5410738
Unavailable
25
CLAMP-HOSE(10)
7080134
Unavailable
26
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
27
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
27
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
27
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
VALVE, CHECK
7052038
$10.51
30
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
31
COOLING WELD,RH
2511224
Unavailable
32
GROMMET RUBBER
5410021
Unavailable
33
FITTING, OUTLET
7052042
$8.99
