TUNNEL ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301001A)

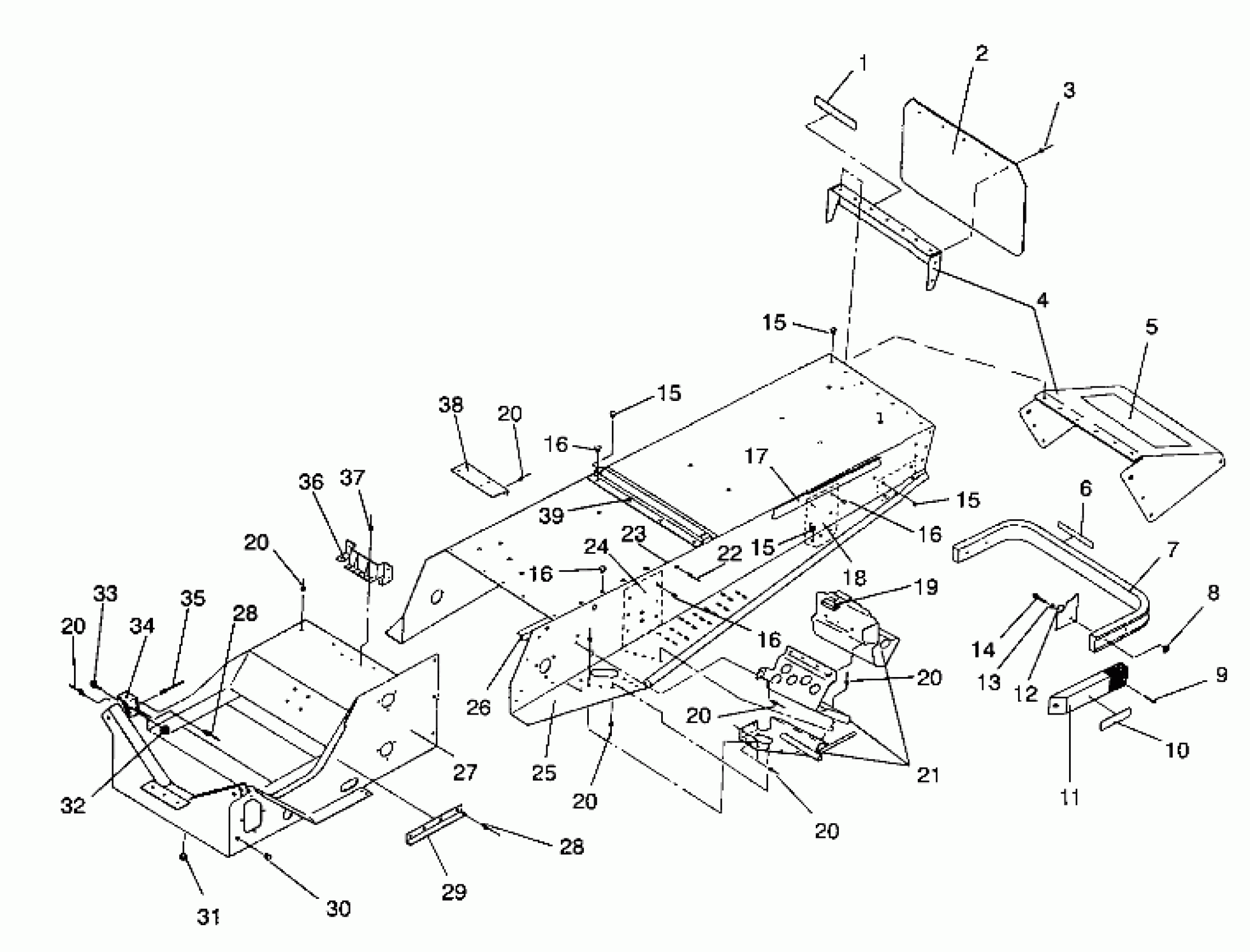

Polaris XLT - 0930767 TUNNEL ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301001A) Diagram
#
1
DECAL,TRACK/SEAT,SILVER [No Longer Available] (Silver)
7073123
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067 (XLT & SP)
5220478
Unavailable
4
PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (SKS)
1011694
Unavailable
5
DECAL,R.CLOSEOFF(XLTSKS) [No Longer Available] (SKS)
7073662
Unavailable
6
DECAL,R.BUMPER(XLT) [No Longer Available]
7073649
Unavailable
7
BUMPER,REAR,BLK. (XLT & SP)
5224334-067
Unavailable
7
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
SCREW(10)
7511863
$1.99
10
REFLECTOR RED
2670070
$9.91
11
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
12
WASHER(10)
7558301
$1.49
13
LOCK WASHER(10)
7552801
$1.59
14
BOLT(10)
7512240
$3.99
15
RIVET ,(50)
7661829
Unavailable
15
RIVET ,(50)
7661829
Unavailable
15
RIVET ,(50)
7661829
Unavailable
15
RIVET ,(50)
7661829
Unavailable
16
RIVET,(50)
7661825
$1.49
16
RIVET,(50)
7661825
$1.49
16
RIVET,(50)
7661825
$1.49
16
RIVET,(50)
7661825
$1.49
17
DECAL,RH.TUNNEL(XLT) [No Longer Available]
7073645
Unavailable
17
DECAL,LH.TUNNEL(XLT) [No Longer Available]
7073644
Unavailable
18
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
18
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
18
BRKT,RH,R.SUSP. (XLT,SP)
1011858-067
Unavailable
18
BRKT,LH,R.SUSP (XLT,SP)
1011857-067
Unavailable
19
EXTRUSION,CLUTCHGUARD
5521238
$6.46
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
21
FOOTREST ASM, LH
1011861
Unavailable
21
FOOTREST ASM,RH,BLK.
1011892
Unavailable
22
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
23
SNAP-MALE(10)
7080227
Unavailable
24
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
25
TUNNEL ASM,STRT.LIQ.BLK. (XLT & SP) (Incl. 4, 18, 24, 26 & 39)
1011920
Unavailable
25
TUNNEL,BLK,STRT,LIQ,BLK.SKS (SKS)(Incl. 4, 18, 24, 26 & 39)
1011922
Unavailable
26
BRACE,TUNNEL REINF.
5222412
Unavailable
27
BULKHEAD,(500 HD)
1011846-067
$436.51
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
29
GUARD
5223789
Unavailable
30
PLUG, HOLE(10)
7080416
$5.65
31
PLUG-HOLE
7080398
$4.84
32
NUT LOCK(10)
7542321
$1.49
33
SCREW(10)
7512307
$3.99
34
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
35
RIVET(50)
7621452
$1.49
36
BRKT,GASTANK,WELD.
1011733-067
$19.73
37
RIVET(50)
7621301
$3.99
38
BRKT, TOOL BOX
5220973
Unavailable
39
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
