PISTON and CRANKSHAFT XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301035A)

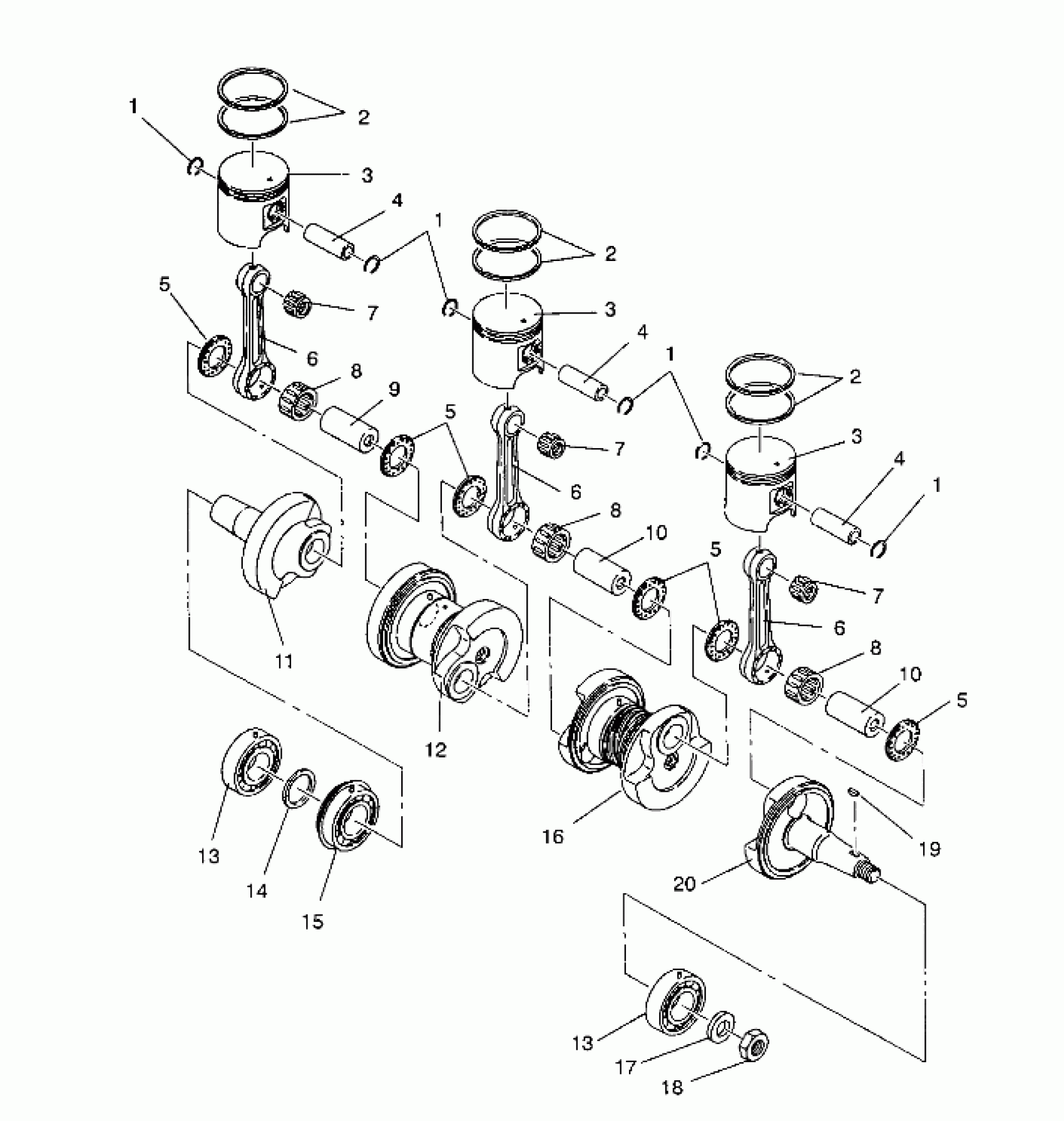

Polaris XLT - 0930767 PISTON and CRANKSHAFT XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301035A) Diagram
#
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
2
RING,PISTON(.010 O/S) (0.25mm/.010" O/S)
3084453
Unavailable
2
RING,PISTON(.020 O/S) (0.50mm/.020" O/S)
3084454
Unavailable
2
RING,PISTON,(STD.) (Standard)
3084452
$49.59
2
RING,PISTON(.010 O/S) (0.25mm/.010" O/S)
3084453
Unavailable
2
RING,PISTON(.020 O/S) (0.50mm/.020" O/S)
3084454
Unavailable
2
RING,PISTON,(STD.) (Standard)
3084452
$49.59
2
RING,PISTON(.010 O/S) (0.25mm/.010" O/S)
3084453
Unavailable
2
RING,PISTON(.020 O/S) (0.50mm/.020" O/S)
3084454
Unavailable
2
RING,PISTON,(STD.) (Standard)
3084452
$49.59
3
PISTON, (.020 O/S) (0.50m/.020" O/S)
3084451
$94.99
3
PISTON, (.010 O/S) (0.25m/.010" O/S)
3084450
Unavailable
3
PISTON, (STD.) (Standard)
3084449
$142.84
3
PISTON, (.020 O/S) (0.50m/.020" O/S)
3084451
$94.99
3
PISTON, (.010 O/S) (0.25m/.010" O/S)
3084450
Unavailable
3
PISTON, (STD.) (Standard)
3084449
$142.84
3
PISTON, (.020 O/S) (0.50m/.020" O/S)
3084451
$94.99
3
PISTON, (.010 O/S) (0.25m/.010" O/S)
3084450
Unavailable
3
PISTON, (STD.) (Standard)
3084449
$142.84
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
PIN, CRANK, #2 Substituted by 3083254
3084448
Unavailable
10
PIN, CRANK, #1
3084447
$32.15
10
PIN, CRANK, #1
3084447
$32.15
11
CRANKSHAFT 3
3084445
Unavailable
12
CRANKSHAFT,PTO SIDE (PTO Side)
3084444
$549.99
13
BEARING, BALL Substituted by 3084586
3083480
$44.99
13
BEARING, BALL Substituted by 3084586
3083480
$44.99
14
SPACER,CRANKSHAFT
3080447
$1.99
15
BALL BEARING, C-4 Substituted by 3084599
3083708
Unavailable
16
CRANKSHAFT,CENTER Substituted by 3085421 (Center)
3084442
$999.99
16
CRANKSHAFT,MAG SIDE (Mag Side)
3084443
Unavailable
17
Washer
3084457
Unavailable
18
NUT
3083093
$19.99
19
KEY WOODRUFF
3081543
$12.94
20
CRANKSHAFT ASM. Substituted by 3084596 (Incl. 5, 6, 8-18)
3084440
$1,219.99
20
CRANKSHAFT 1 Substituted by 3084597
3084441
$226.99
