OIL TANK/AIR BOX ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301030A)

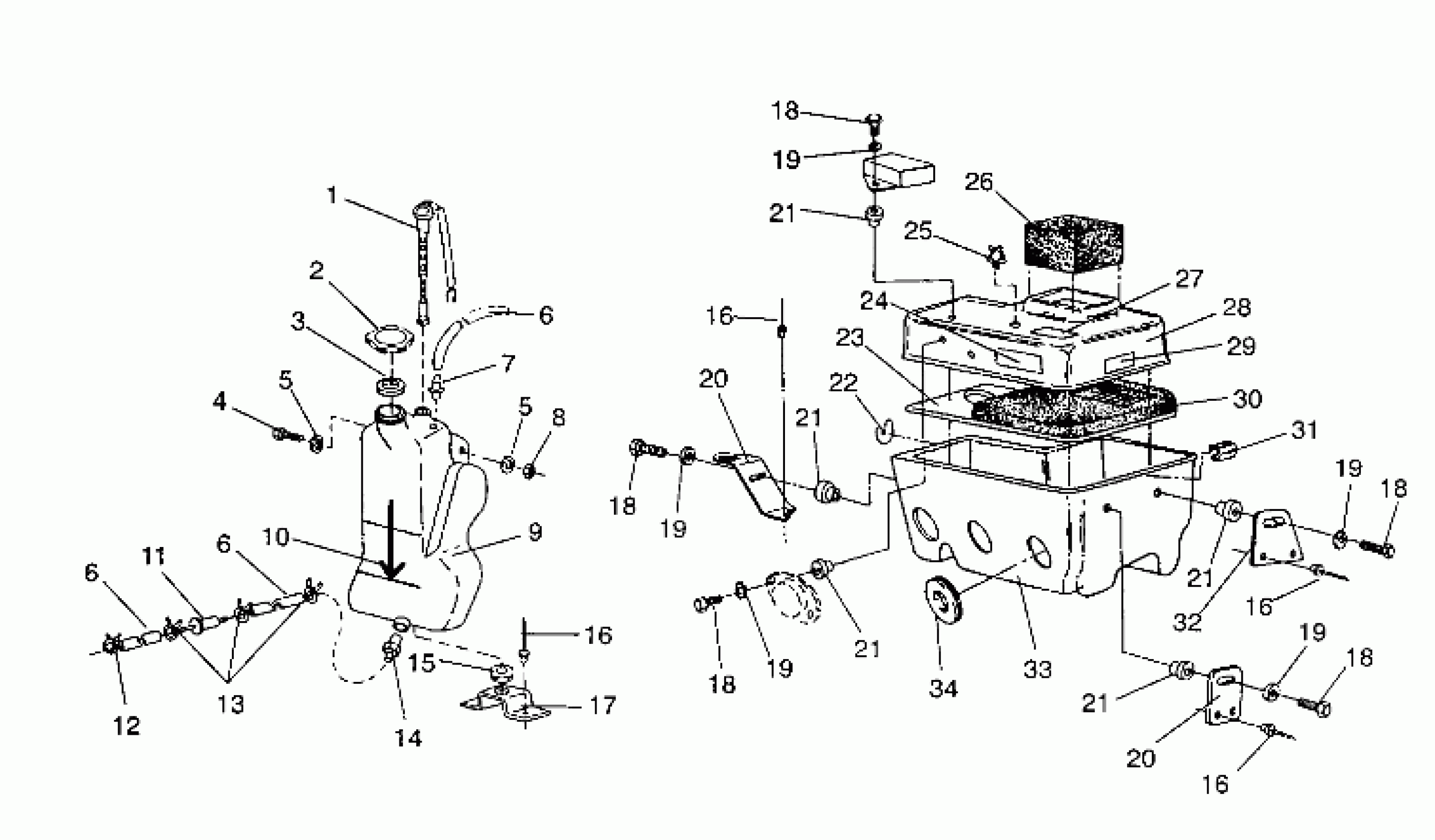

Polaris XLT - 0930767 OIL TANK/AIR BOX ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301030A) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
KIT-TANK VENT
2200190
Unavailable
6
KIT-TANK VENT
2200190
Unavailable
6
KIT-TANK VENT
2200190
Unavailable
7
FITTING,(10)
7052077
$6.39
8
NUT-LOCK(10)
7542122
$1.49
9
TANK, OIL
5430997
Unavailable
10
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
11
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
12
CLAMP-HOSE,(10)
7080236
$1.59
13
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
14
FITTING, OUTLET
7052042
$8.99
15
GROMMET RUBBER
5410021
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
BRACKET
5223985
Unavailable
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
20
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
22
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
23
PLATE, AIR SILENCER
5850102
Unavailable
24
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
25
CLAMP,WIRE ROUTING(10)
7080409
$2.39
26
INTAKE ASM, FOAM
1253107
$36.41
27
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
28
COVER,SILENCER,DRILLED
5431430
Unavailable
29
DECAL, GREASING [No Longer Available]
7073426
$7.27
30
BAFFLE ASM.
1253110
Unavailable
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
BRACKET, SILENCER
5211274
$9.70
33
SILENCER,INTAKE,DRILLED
5431417
Unavailable
34
BOOT
5410403
$12.99
