HOOD ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301005A)

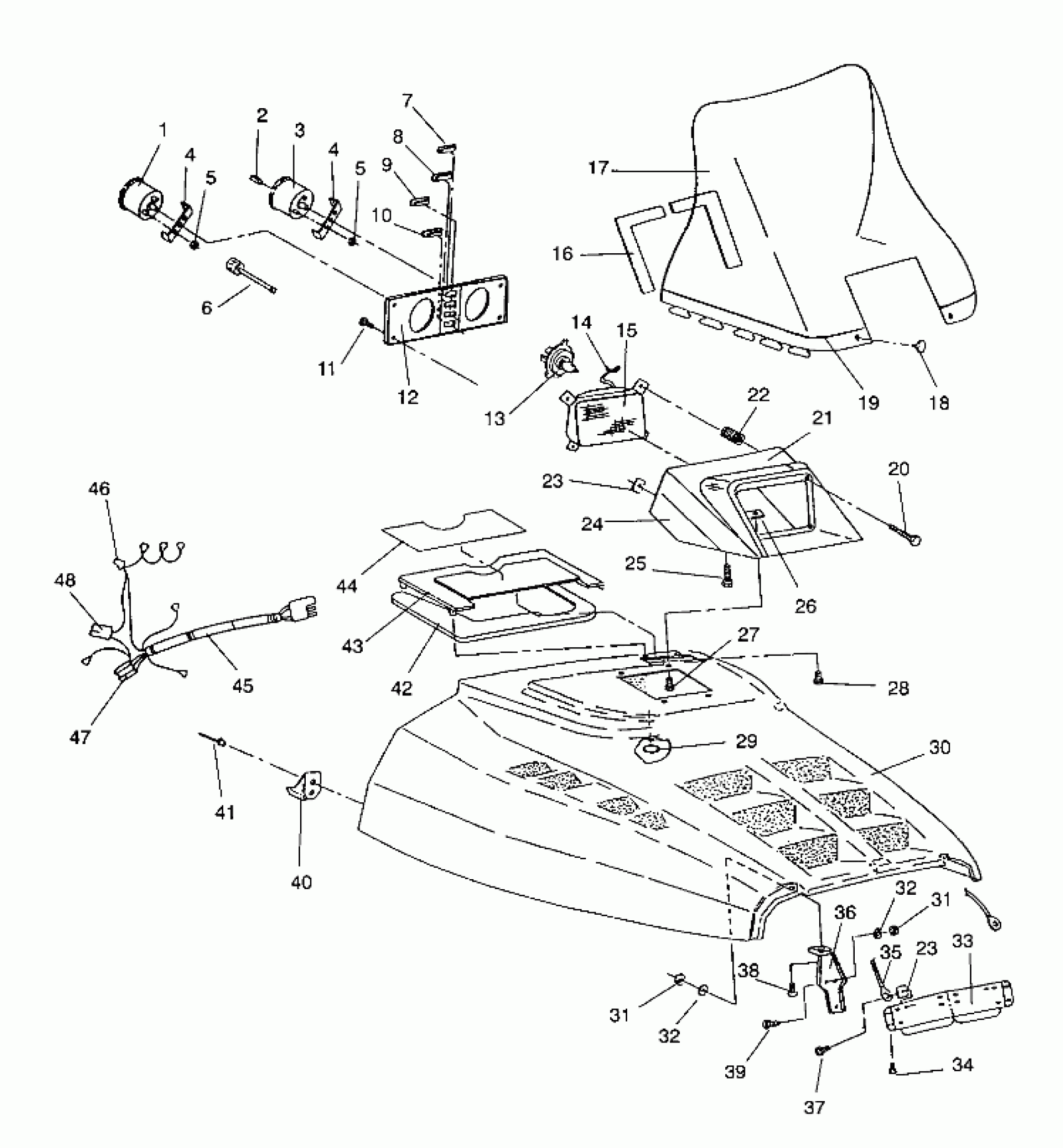

Polaris XLT - 0930767 HOOD ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301005A) Diagram
#
1
TACHOMETER, 6 PULSE (Incl. 4 & 5)
3280127
Unavailable
2
KNOB,TRIP ODOMETER
3280103
$3.83
3
SPEEDOMETER (Incl. 4 & 5)
3280092
$111.99
3
SPEEDO.,(KILOMETER) (Incl. 4 & 5)
3280097
$125.65
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
NUT
3280063
Unavailable
5
NUT
3280063
Unavailable
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST.
5430924
Unavailable
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD,W/S,LH,BLACK
5810437
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
WINDSHIELD,LOW,SMOKE Substituted by 2870785 (SP)
5431456
Unavailable
17
WINDSHIELD,STD,SMOKE Substituted by 5431144 (XLT & SKS)
5431457
$134.99
18
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
19
DECAL,W/S PINSTRIPE [No Longer Available]
7073668
Unavailable
20
SCREW, ADJ.(10)
4032003
Unavailable
21
HSG,INST,TOP,BLK
5430923-070
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
30
HOOD,BLK.SAPPHIRE Substituted by 2631574-173 (Incl. Foam & Foil)
5431194-173
Unavailable
31
NUT-LOCK(10)
7542122
$1.49
31
NUT-LOCK(10)
7542122
$1.49
32
WASHER,WROUGHT(10)
7558302
$1.59
32
WASHER,WROUGHT(10)
7558302
$1.59
33
PLATE,RE-INF.,(HD.)
5222105
$49.51
34
SCREW(10)
7511861
Unavailable
35
CABLE,HOOD RETAINER
7080368
$10.51
36
HINGE ASM,HD,BLK
2635005-067
$16.67
37
SCREW(10)
7511989
Unavailable
38
BOLT-CARRIAGE(10)
7512263
$3.99
39
BOLT(10)
7512193
$2.39
40
CUP, HOOD LATCH,(10)
5430733
$4.84
41
RIVET(50)
7621334
$1.49
42
SEAL, INTAKE
5810597
Unavailable
43
PANEL,INTAKE,BLK.SAPPHIRE Substituted by 2620078-173
5431195-173
Unavailable
44
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
45
HARNESS,HEADLIGHT
2460382
Unavailable
46
HOUSING
4020052
Unavailable
47
Housing
4020115
$1.59
48
HOUSING
4020114
Unavailable
48
DESC NOT_AVAILABLE
2652099
Unavailable
