FRONT SUSPENSION and SKI XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301011A)

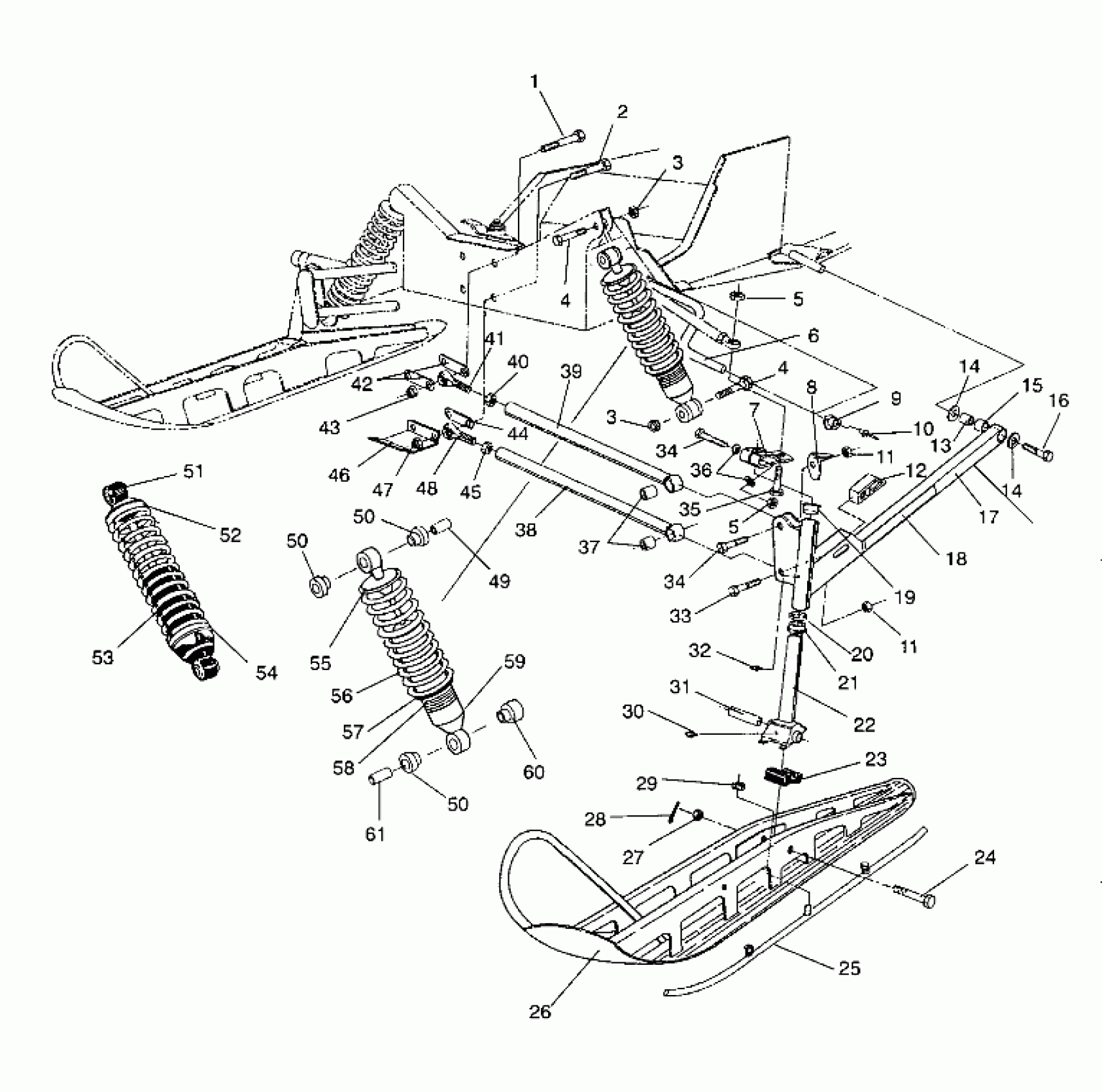

Polaris XLT - 0930767 FRONT SUSPENSION and SKI XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
6
BAR,SWAY,9/16,BLK. (XLT)
5224476-067
Unavailable
6
BAR, SWAY, (BLK.) (SP)
5224240-067
$49.21
7
Arm, Steering
5220326-067
Unavailable
8
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
8
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
9
BUSHING-SWAYBAR (XLT, SKS)
5410383
Unavailable
9
BUSHING,SWAYBAR (SP)
5410386
Unavailable
10
RIVET(50)
7621433
$1.49
11
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
11
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
12
SLIDE-SWAYBAR (XLT, SKS)
5410384
Unavailable
12
SLIDE,(FR.SUSP.) (SP)
5410385
Unavailable
13
PIVOT-TRAILING ARM
5410382
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
BOLT(10)
7512557
$7.60
17
ARM,TRLG,LH,BLK. Substituted by 1822427 (Incl. 13, 15)
1822053-067
Unavailable
17
ARM,TRLG,RH,BLK. Substituted by 1822428 (Incl. 13, 15)
1822052-067
Unavailable
18
DECAL,LH.IFS [No Longer Available]
7073663
Unavailable
18
DECAL,RH,IFS [No Longer Available]
7073664
Unavailable
19
BUSHING-FLANGE
3573909
$2.39
20
WASHER SPECIAL(10)
7556509
$1.59
21
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
22
SPINDLE,GREASABLE Substituted by 6230073-067 (XLT, SKS)
5130919-067
Unavailable
22
SPINDLE,BLK,HARDENED Substituted by 6230075-067 (SP)
5130920-067
Unavailable
23
STOP-RUBBER
5521094
Unavailable
24
BOLT(10)
7515462
$8.79
25
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
26
SKI WELD, BLK
1820332-067
Unavailable
27
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
28
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
29
NUT-5/16-18 NYLOK-Y
7542324
$1.49
30
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
31
BUSHING,PIVOT,(10)
5010158
$19.99
32
ZERK,FITTING,THREADED(10)
7080433
$1.49
33
BOLT(10) Substituted by 7515540
7515492
$4.62
34
BOLT(10) Substituted by 7517583
7515491
Unavailable
34
BOLT(10) Substituted by 7517583
7515491
Unavailable
35
BOLT Substituted by 7512404
7515490
Unavailable
36
WASHER(10) Substituted by 7555832
7555851
Unavailable
37
BUSHING-RADIUS ROD,(10)
5010127
$7.99
38
ROD,RADIUS,BLACK (SKS)
1822045-067
Unavailable
38
ROD,RADIUS,(BLK.)LOW (XLT, SP)
1822055-067
Unavailable
39
ROD,RADIUS,BLACK (SKS)
1822037-067
Unavailable
39
ROD, RADIUS,(BLK.) (XLT, SP)
1822054-067
Unavailable
40
NUT JAM(10)
7542520
$2.39
41
ROD END, RH Substituted by 7061010
7060155
Unavailable
42
STRAP,SPACER TOP
5211344
$7.27
43
NUT, LOCK,(10)
7542503
$10.39
44
STRAP,SPACER BOTTOM
5211345
$12.99
45
NUT-JAM(10)
7542711
$2.39
46
BRACE, PAN
5223997-067
Unavailable
47
NUT FLEX,(10)
7542703
Unavailable
48
ROD END,RH Substituted by 7061011
7060156
Unavailable
49
BUSHING, (1.16 IN.) (SP)
5020613
Unavailable
50
BUSHING,SHOCK,.220 Substituted by 1500137 (SP)
5431540
$24.99
50
BUSHING,SHOCK,.220 Substituted by 1500137 (SP)
5431540
$24.99
50
BUSHING,SHOCK,.220 Substituted by 1500137 (SP)
5431540
$24.99
51
SHOCK,FR.SUSP. (XLT, SKS)
7041285
Unavailable
52
RETAINER-TOP (XLT, SKS)
5220225
$10.39
53
SPRING Substituted by 7041261-067 (XLT, SKS)
7041261-156
$164.99
54
SPACER,SHOCK RETAINER(10) (XLT, SKS)
5210953
$6.39
54
SPACER,SHOCK RETAINER(10) (XLT,SKS)
5210953
$6.39
55
RETAINER,SPRING,SLOTTED (SP)
5020618
$24.99
56
SPRING,(BLK.),IFS COMP. (SP)
7041252-067
Unavailable
57
RETAINER, SPRING BODY (SP)
5020617
Unavailable
58
RING, RETAINING(10) (SP)
7710424
$0.63
59
SHOCK,GAS,LH,(IFS-IFP) (SP)
7041291
Unavailable
59
SHOCK,GAS,RH,(IFS-IFP) (SP)
7041292
Unavailable
60
BUSHING,SHOCK,.400 (SP)
5431543
Unavailable
61
BUSHING, (1.34 IN.) (SP) NOTE: For the XLT SP, Fox replacement, See page 29.
5020612
Unavailable
