ENGINE MOUNTING XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301028A)

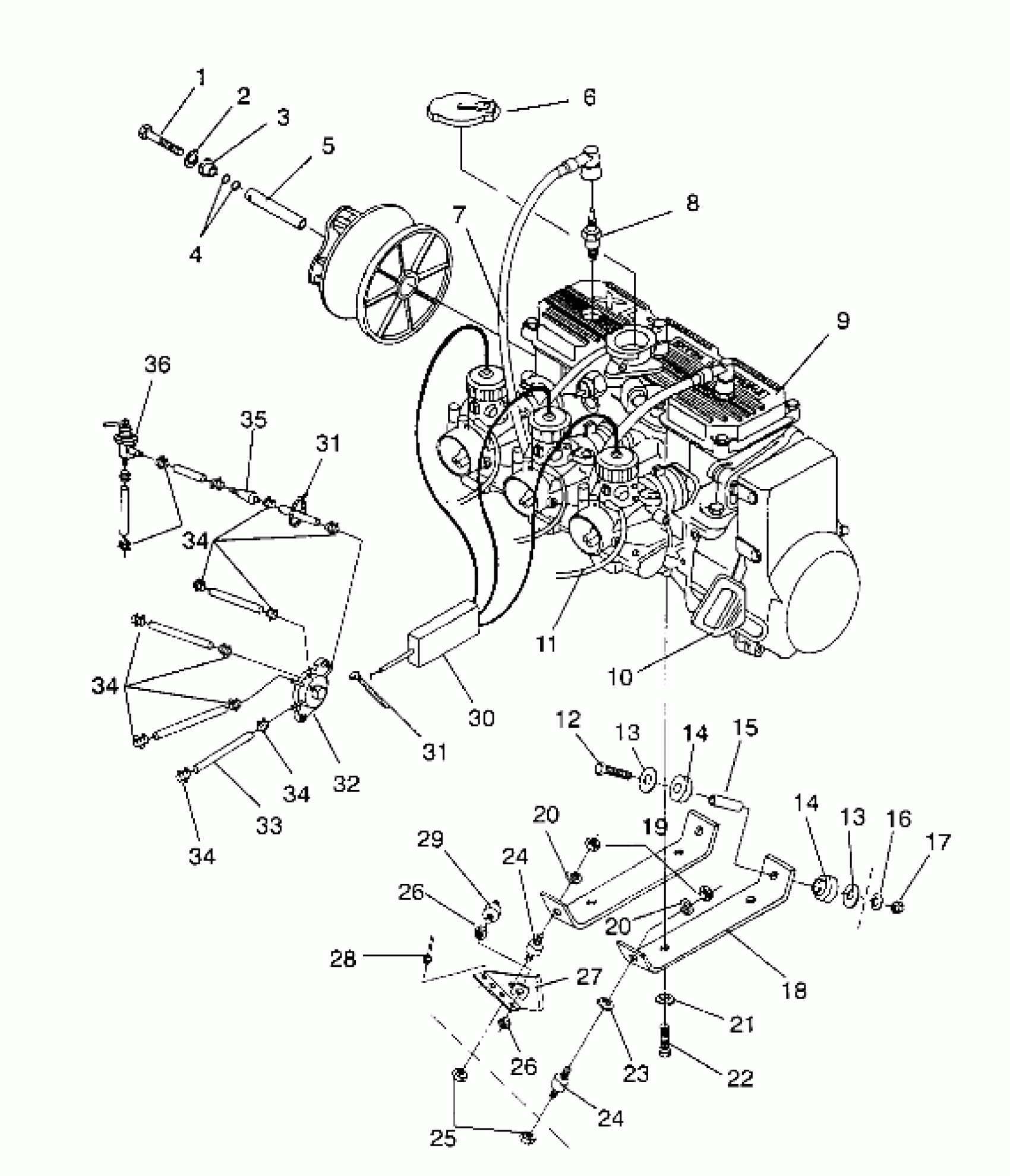

Polaris XLT - 0930767 ENGINE MOUNTING XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301028A) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE Substituted by 2511256
2511217
Unavailable
7
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
8
SPARKPLUG(8)
3070165
$3.99
9
ENG.EC58PL-01 [No Longer Available]
1211517
Unavailable
10
HANDLE-RECOIL
5430520
Unavailable
11
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
12
SCREW(10)
7512530
$5.59
13
WASHER(10)
7555740
$1.59
13
WASHER(10)
7555740
$1.59
14
MOUNT, ENGINE
5410390
Unavailable
14
MOUNT, ENGINE
5410390
Unavailable
15
SPACER, (MTR.MT.)
5332778
Unavailable
16
WASHER(10)
7555817
Unavailable
17
NUT,FLEX LOC(10)
7542507
$3.99
18
PLATE,LH MTR.MT.
5222761
Unavailable
18
PLATE,RH MTR.MT.
5222762
$61.90
19
NUT-LOCK(10)
7542439
$1.49
20
WASHER(10) Substituted by 7555806
7555720
$0.79
20
WASHER(10) Substituted by 7555806
7555720
$0.79
21
WASHER LOCK(10)
7553101
$3.99
22
BOLT(10)
7512575
Unavailable
23
WASHER(10)
7555721
$1.49
24
MOUNT
3110022
Unavailable
24
MOUNT
3110022
Unavailable
25
NUT LOCK(10)
7542411
$3.19
26
NUT, JAM(10)
7542432
$3.99
26
NUT, JAM(10)
7542432
$3.99
27
LIMITER
1011503-067
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
29
MOUNT,TORQUESTOP,RUBBER
3110034
Unavailable
30
CABLE,THROTTLE,W/OIL
7080458
$157.84
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
32
Fuel Pump (See pg.35)
-------
Unavailable
33
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
34
HOSE CLAMP, RED
7080003
$1.49
34
HOSE CLAMP, RED
7080003
$1.49
34
HOSE CLAMP, RED
7080003
$1.49
34
HOSE CLAMP, RED
7080003
$1.49
35
FILTER FUEL,(10)
2530008
$4.84
36
VALVE,FUEL SHUT-OFF
7052039
Unavailable
