DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301018A)

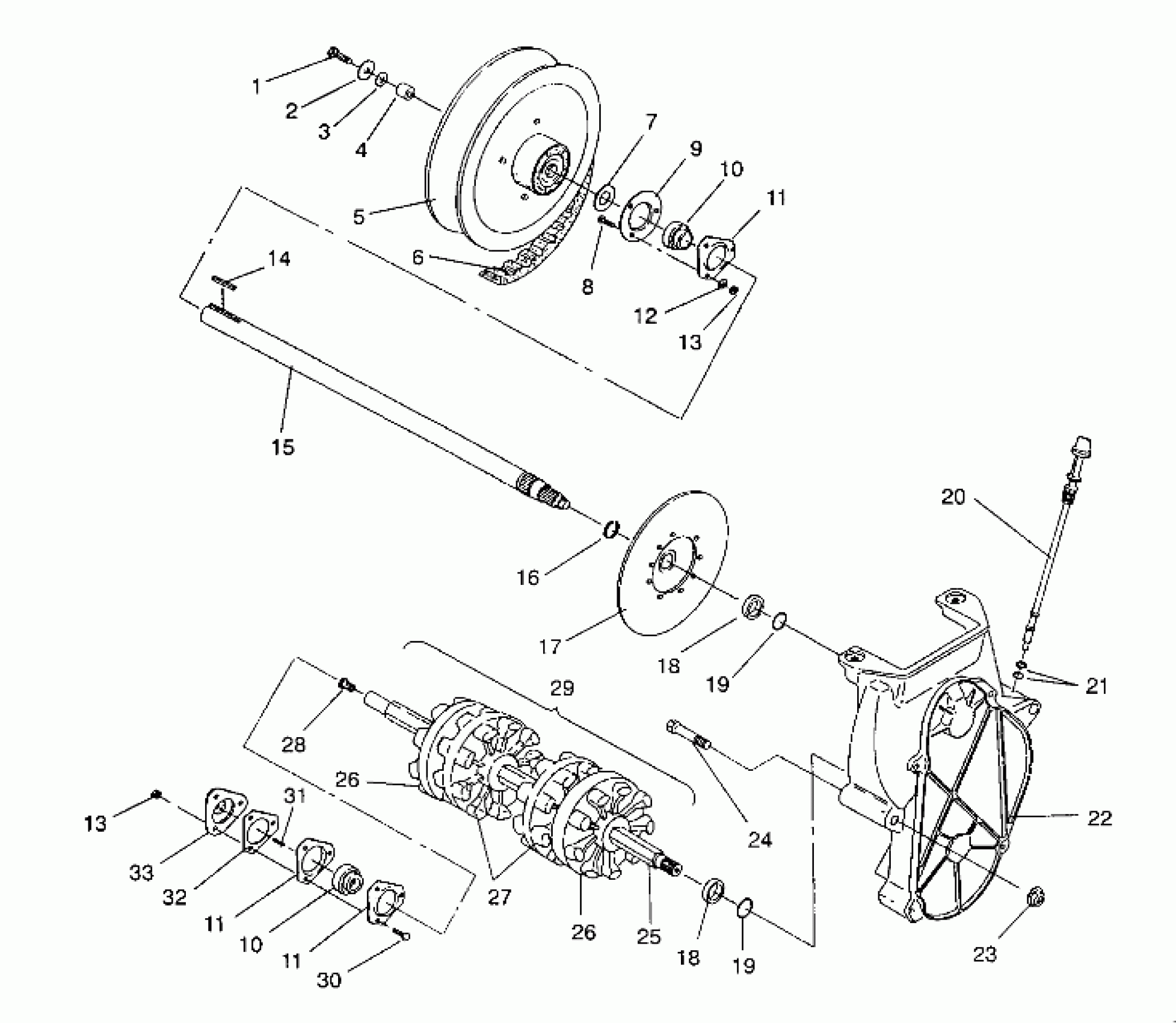

Polaris XLT - 0930767 DRIVE TRAIN ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301018A) Diagram
#
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
CLUTCH,34DEG,DRIVEN Substituted by 1322154 (See pg. 25)
1322106
Unavailable
5
CLUTCH,34DEG,DRIVEN Substituted by 1322154 (See pg. NO TAG)
1322106
Unavailable
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
10
BEARING,JACKSHAFT
3514519
$64.99
10
BEARING Substituted by 3514518
3514513
$64.99
10
BEARING,JACKSHAFT
3514519
$64.99
10
BEARING Substituted by 3514518
3514513
$64.99
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
11
FLANGETTE Substituted by 5222751
5222591
Unavailable
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
KEY-SQUARE(10)
7721204
$3.19
15
JACKSHAFT ASM, BLK. (Incl. 16)
1332141-067
$190.46
16
RING, RETAINING(10)
7710422
$3.99
17
DISC ASM, BRAKE
1910086
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
DIPSTICK Substituted by 1332143
5431419
Unavailable
21
O-RING
5410675
$1.60
22
Asm., Chaincase (See page 15)
-------
Unavailable
22
Asm., Chaincase (See page NO TAG)
-------
Unavailable
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
26
SPROCKET, 9T
5430571
Unavailable
26
SPROCKET, HALF,9T
5430993
Unavailable
26
SPROCKET, 9T
5430571
Unavailable
26
SPROCKET, HALF,9T
5430993
Unavailable
27
SPROCKET, 9T
5430571
Unavailable
27
SPROCKET, HALF,9T
5430993
Unavailable
28
BUSHING METAL SPEEDO
3280019
$11.99
29
DRIVESHAFT ASM. Substituted by 1590245 (Incl. 25-28)
1590229
Unavailable
30
BOLT(10)
7512331
$3.99
31
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
