COOLING SYSTEM XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301013A)

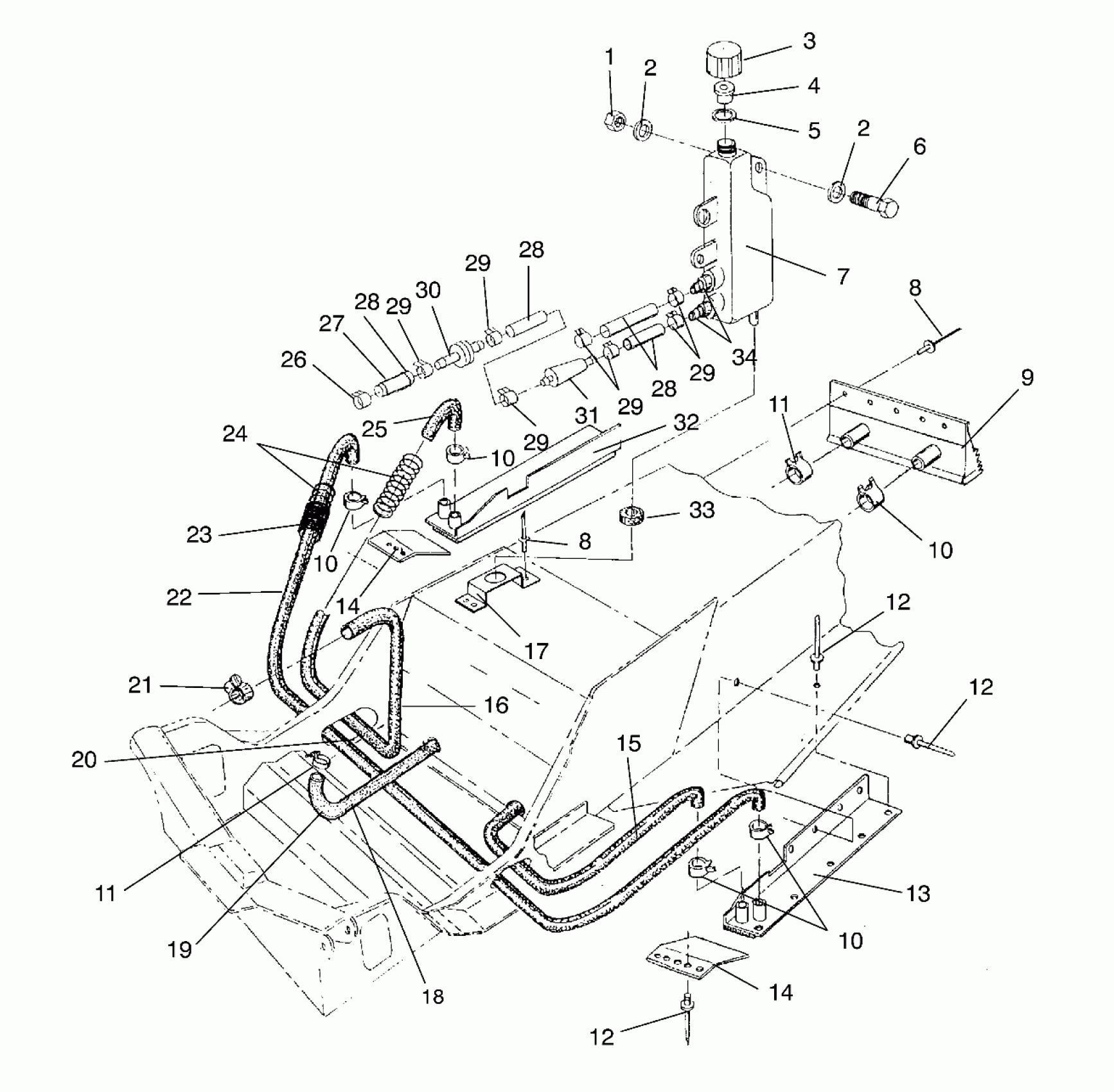

Polaris XLT - 0930767 COOLING SYSTEM XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301013A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE, OVERFLOW Substituted by 5431733
5431054
$36.41
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
RIVET Substituted by 7661638
7661625
$1.19
12
RIVET Substituted by 7661638
7661625
$1.19
12
RIVET Substituted by 7661638
7661625
$1.19
13
COOLING WELD,LH
2511223
$113.32
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
HOSE, ENGINE/SIDE COOLER
5410738
Unavailable
17
BRACKET
5223985
Unavailable
18
HOSE, CENTER EXT TO PUMP
5410673
Unavailable
19
SPRING,HOSE RETAINER
7042041
Unavailable
20
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
21
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
22
HOSE-CROSSOVER
5410324
Unavailable
23
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
24
SPRING,HOSE RETAINER
7041079
$4.95
25
HOSE,ENG/SIDE EXT.
5410738
Unavailable
26
CLAMP-HOSE(10)
7080134
Unavailable
27
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
VALVE, CHECK
7052038
$10.51
31
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
32
COOLING WELD,RH
2511224
Unavailable
33
GROMMET RUBBER
5410021
Unavailable
34
FITTING, OUTLET
7052042
$8.99
