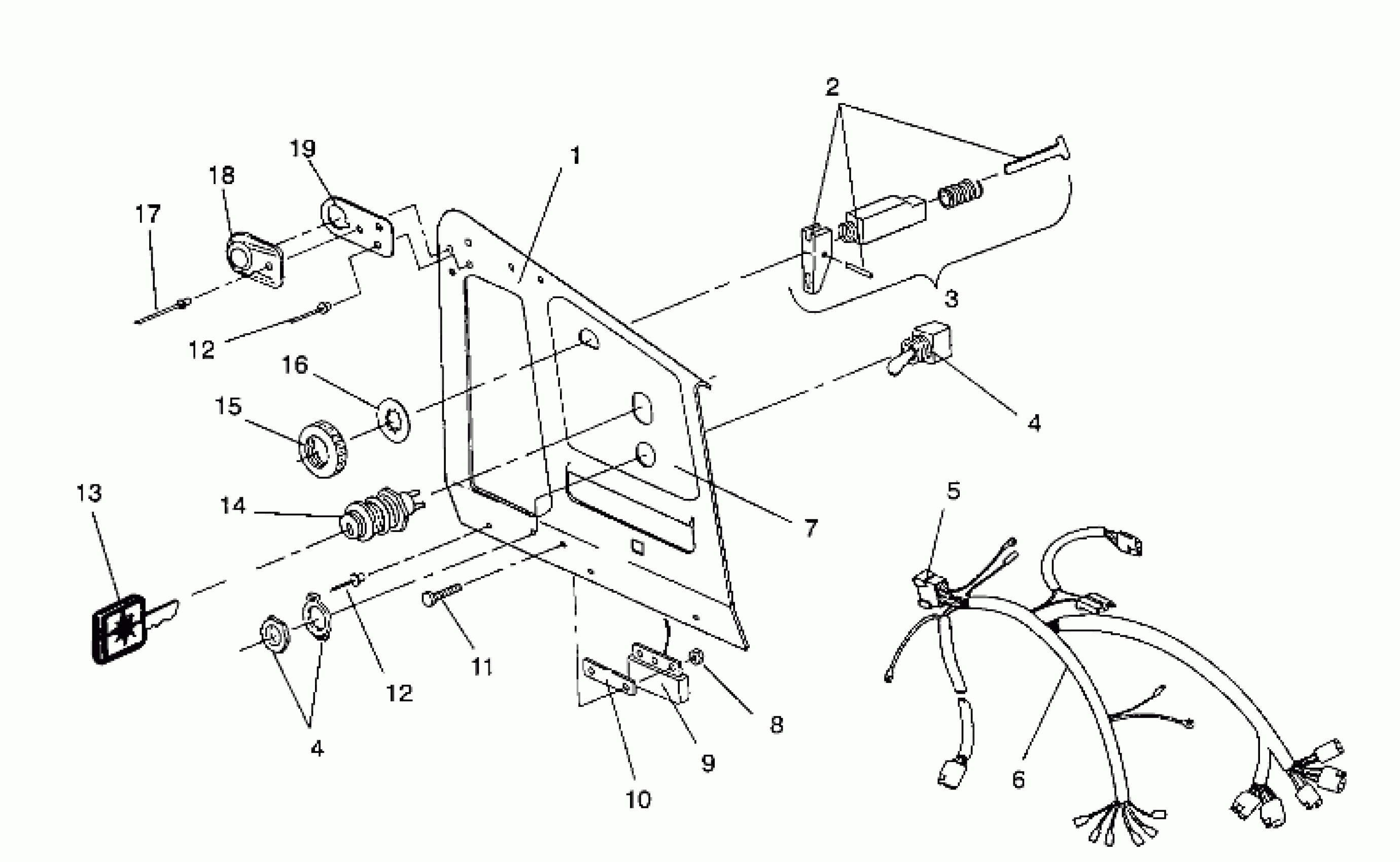

Polaris XLT - 0930767 CONSOLE XLT/0930767,XLT SP/0930667 & XLT SKS/0930567 (4923012301009A) Diagram

CONSOLE

5222756-067

Unavailable

CONSOLE,BLK,(SCAND)

5222758-067

$53.59

KIT,CHOKE CONTROL

2200189

$20.22

CABLE, CHOKE

7080283

$109.99

SW,HEATER,HI-LOW

4110077

Unavailable

SW,HEATER,HI-LOW

4110077

Unavailable

Housing w/Receptacle

4020057

$3.51

HARNESS,MAIN,(EURO)

2460406

Unavailable

HARNESS, MAIN WIRE

2460371

Unavailable

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

NUT(10)

7541925

$1.49

REGULATOR, VOLTAGE

4060092

Unavailable

HEAT SINK

5210650

Unavailable

SCREW(10)

7512007

$3.99

RIVET Substituted by 7661638

7661625

$1.19

RIVET Substituted by 7661638

7661625

$1.19

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

KIT,IGN. SWITCH (Incl. 13)

2200357

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

RIVET,(50)

7621477

$1.19

GUIDE, RECOIL

5431385

$10.51

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console.

5222682-067

Unavailable
