CARBURETOR ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/09305673 (4923012301036A)

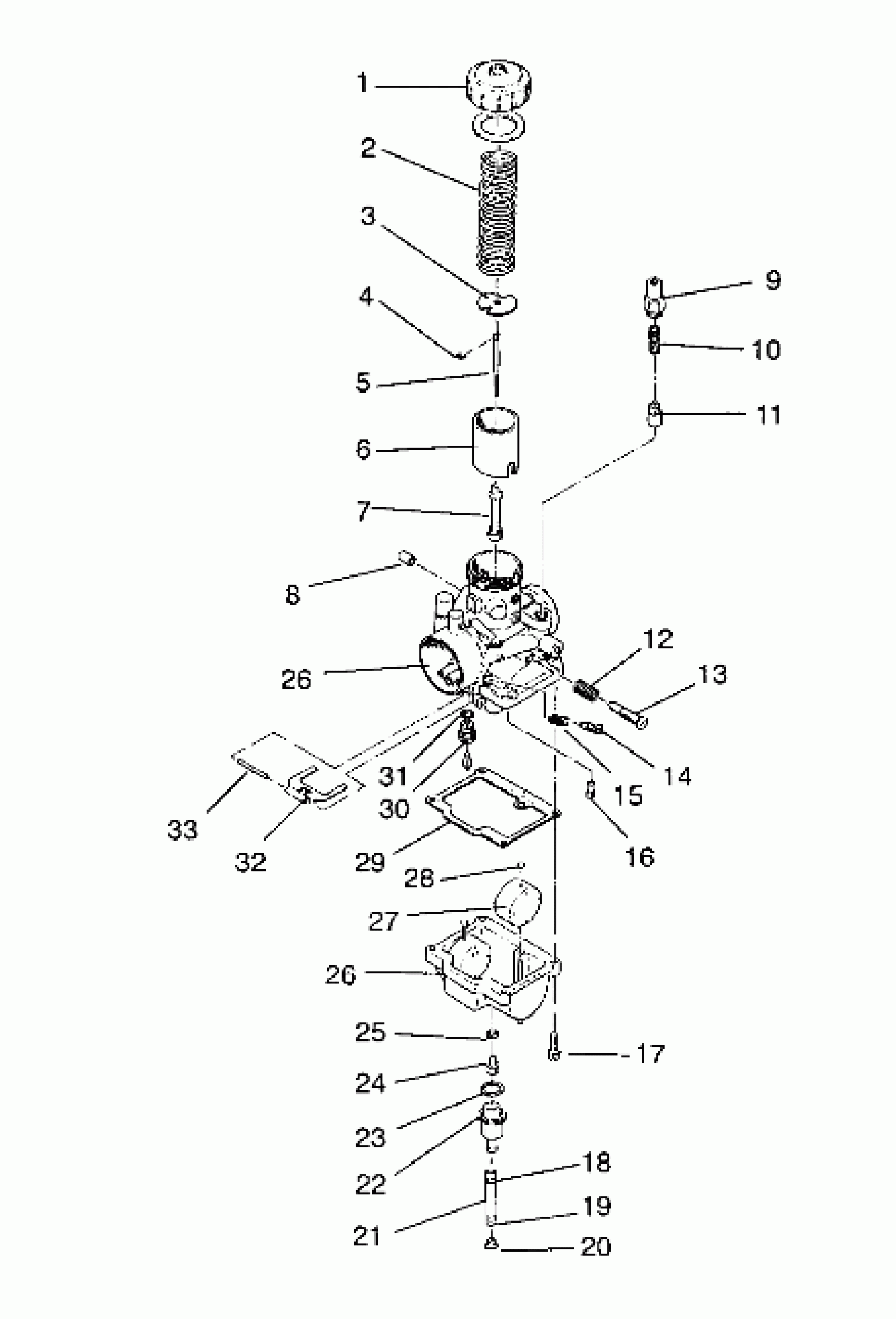

Polaris XLT - 0930767 CARBURETOR ASSEMBLY XLT/0930767,XLT SP/0930667 & XLT SKS/09305673 (4923012301036A) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING,THROTTLE
3130439
$13.59
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET, NEEDLE (6DP17-3)
3130374
Unavailable
6
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
7
NEEDLE JET,(Q-2) (166)
3130376
Unavailable
8
CAP
3130386
Unavailable
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
SPRING,THROTTLE ADJ.
3130010
$8.89
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SCREW,AIR
3130011
$19.99
15
SPRING,AIR ADJUST
3130012
$8.89
16
JET,PILOT,#35(10) (#35)
3130066
$8.89
17
SCREW & WASHER(10)
3130025
$3.19
18
CLAMP-HOSE,(10)
7080236
$1.59
19
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
20
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
21
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
22
NIPPLE Substituted by 5020476
3130387
$10.56
23
O RING
3130239
Unavailable
24
JET,MAIN,HX.HD#200(10) (#200)
3130123
$7.27
25
WASHER (10)
3130014
$1.59
26
CARBURETOR (Incl. 1-17, 23-33)
3130463
$347.60
26
CARBURETOR (Incl. 1-17, 23-33)
3130463
$347.60
27
FLOAT ASM.
3130430
$43.56
28
CAP,(10)
3130237
$4.03
29
PACKING,FLOAT CHAMBER
3130020
$16.17
30
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
31
PACKING(10)
3130017
$4.03
32
ARM,FLOAT
3130018
$24.27
33
PIN, FLOAT Substituted by 3130361
3130235
$8.89
