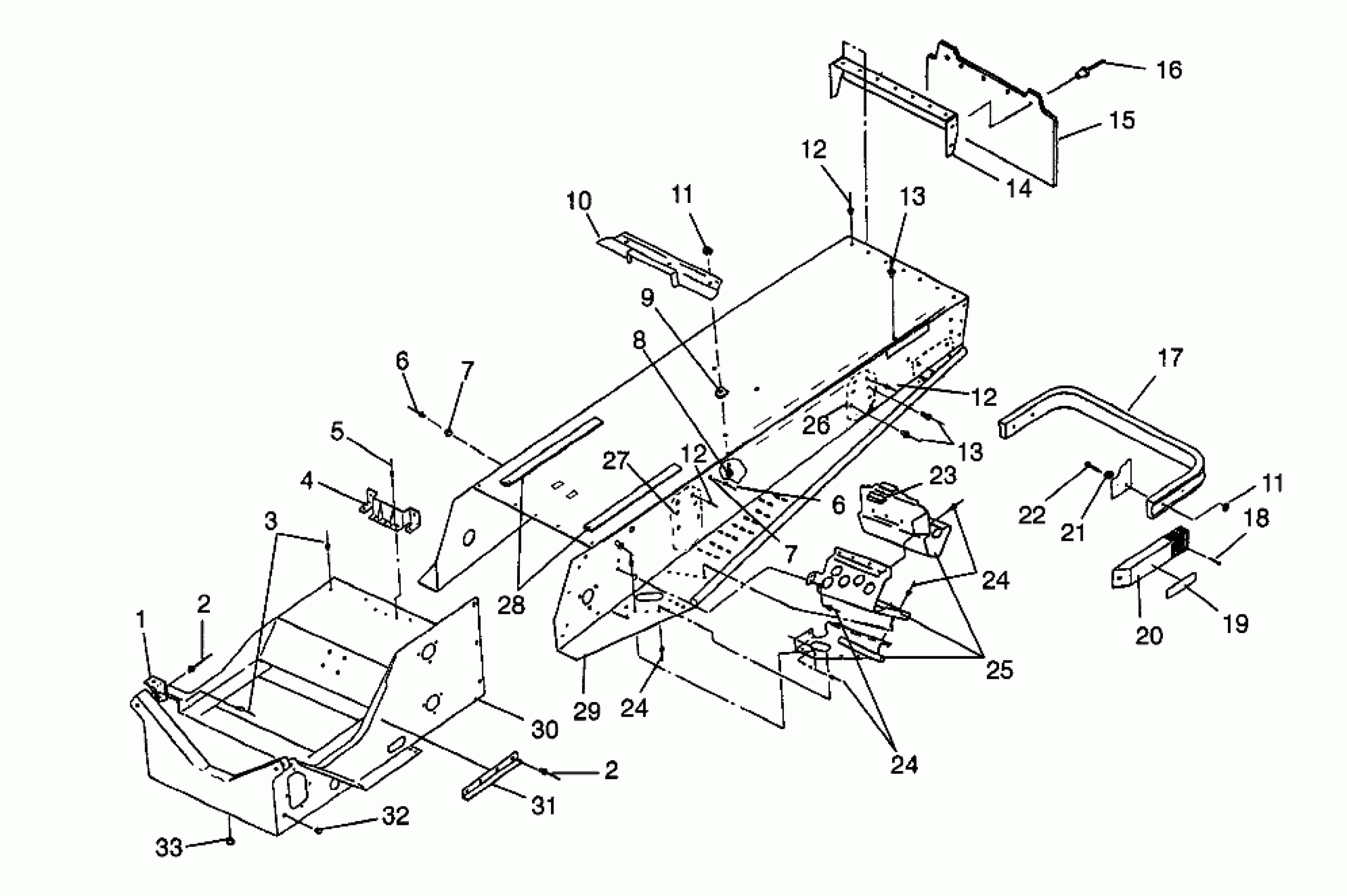

Polaris XCF - 0981643 TUNNEL XCF 0981643 (4942774277A005) Diagram
#
1
SUPPORT,MUFFLER,BLK.
1012233-067
Unavailable
2
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
2
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
3
RIVET-3/16-.090-.290
7661637
$1.49
4
BRKT,GASTANK,WELD.
1011733-067
$19.73
5
RIVET(50)
7621301
$3.99
6
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
6
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
7
SNAP-MALE(10)
7080227
Unavailable
7
SNAP-MALE(10)
7080227
Unavailable
8
BOLT(10)
7512193
$2.39
9
SPEED NUT(10)
7670021
$6.99
10
STRAP,GASTANK,BLK
1011732-067
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
11
NUT-LOCK(10)
7542122
$1.49
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
13
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
13
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
14
PANEL,TUNNELBACK
5241053-067
$308.99
15
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
16
POP RIVET(50)
7621418
$1.49
17
BUMPER,REAR,STD.
5224674-067
Unavailable
18
SCREW(10)
7511863
$1.99
19
REFLECTOR RED
2670070
$9.91
20
CAP, BUMPER, BLK.
5430930-070
Unavailable
21
WASHER(10)
7558301
$1.49
22
BOLT(10)
7512240
$3.99
23
EXTRUSION,CLUTCHGUARD
5521238
$6.46
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
25
FOOTREST ASM, LH
1011861
Unavailable
25
FOOTREST ASM,RH,BLK.
1012471
Unavailable
26
PAD,LH,R.SUSP.
5241268-067
Unavailable
26
PAD,RH,R.SUSP.
5241269-067
Unavailable
27
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
27
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
28
PAD-GAS TANK
5810063
$4.95
29
TUNNEL,F/C,BLK Substituted by 1012614-067 (Incl. 14, 26, 27)
1012614
Unavailable
30
BULKHEAD,CRC
1012613-067
Unavailable
31
GUARD,ADAPTER,DRIVE
5240441
Unavailable
32
PLUG, HOLE(10)
7080416
$5.65
33
PLUG-HOLE
7080398
$4.84
