OIL TANK/AIR BOX XCF 0981643 (4942774277C003)

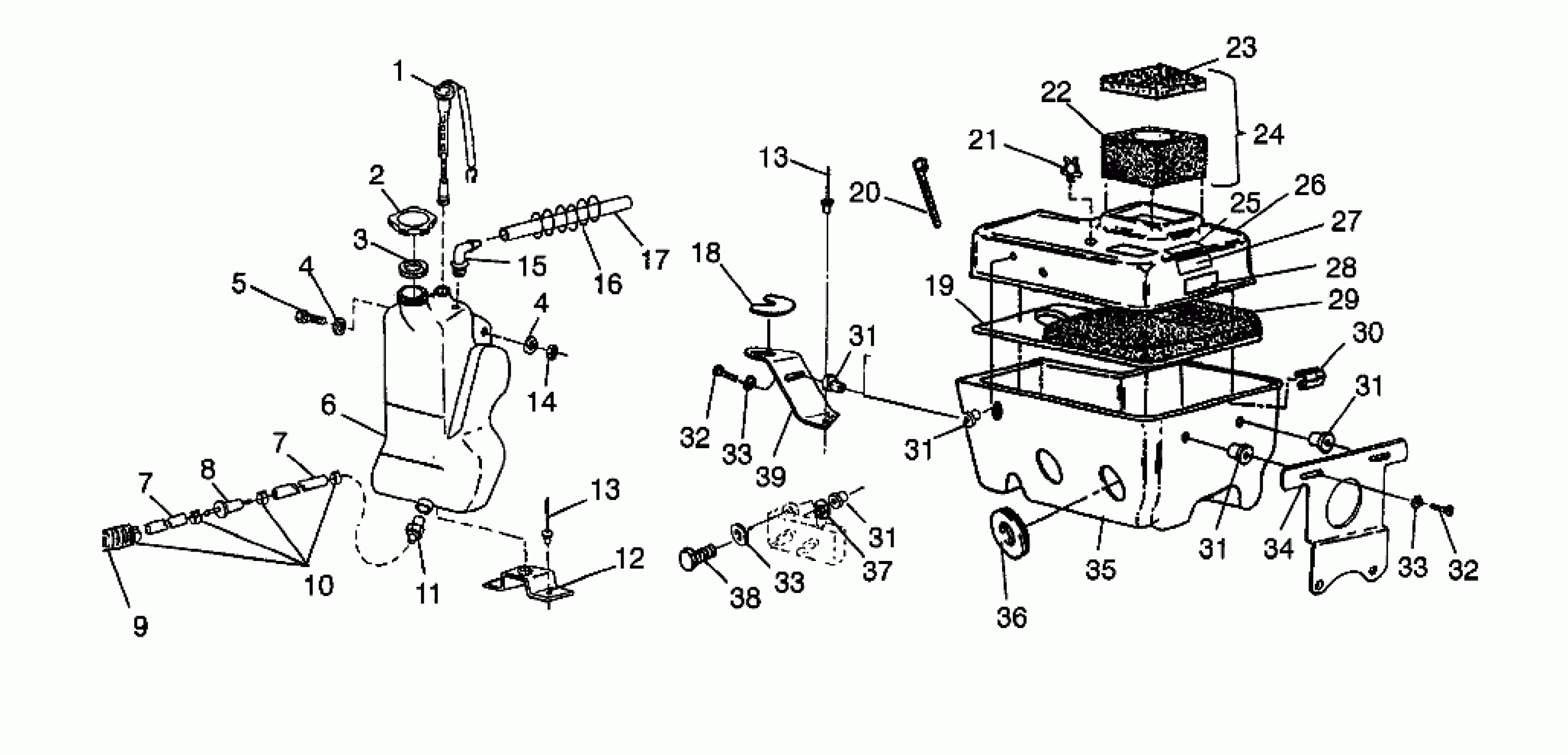

Polaris XCF - 0981643 OIL TANK/AIR BOX XCF 0981643 (4942774277C003) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
TANK, OIL
5430997
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
8
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
9
CONDUIT,CONVOL(30 CM)
4010051-30
Unavailable
10
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
11
FITTING, OUTLET
7052042
$8.99
12
BRKT,OILTANK,COINED (Coined)
5241334
$9.70
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
NUT-LOCK(10)
7542122
$1.49
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
16
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
18
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
19
PLATE,AIR SILENCER
5850075
$24.27
20
STRAP, BLK
7080272
Unavailable
21
CLIP, PLASTIC(10)
4020139
$4.79
22
FOAM, INTAKE
5810468
Unavailable
23
FOAM,INTAKE,TOP
5810457
Unavailable
24
INTAKE ASM, FOAM (Incl. 22, 23)
1253107
$36.41
25
DECAL,CAUTION,AIRBOX
7075351
Unavailable
26
COVER,SILENCER,DRILLED
5432243
Unavailable
27
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
28
DECAL, GREASING [No Longer Available]
7073426
$7.27
29
BAFFLE ASM. (Incl. 19)
1253102
$64.75
30
CLIP, AIR BOX,(10)
7670055
$7.99
31
NUT-WELL(10)
7541923
$5.59
31
NUT-WELL(10)
7541923
$5.59
31
NUT-WELL(10)
7541923
$5.59
31
NUT-WELL(10)
7541923
$5.59
31
NUT-WELL(10)
7541923
$5.59
32
SCREW(10)
7512279
$1.49
32
SCREW(10)
7512279
$1.49
33
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
33
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
33
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
34
BRKT,AIR BOX
5241080-067
Unavailable
35
SILENCER,INTAKE,DRILLED
5431925
Unavailable
36
BOOT
5410403
$12.99
37
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
38
SCREW(10)
7512222
$2.39
39
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
