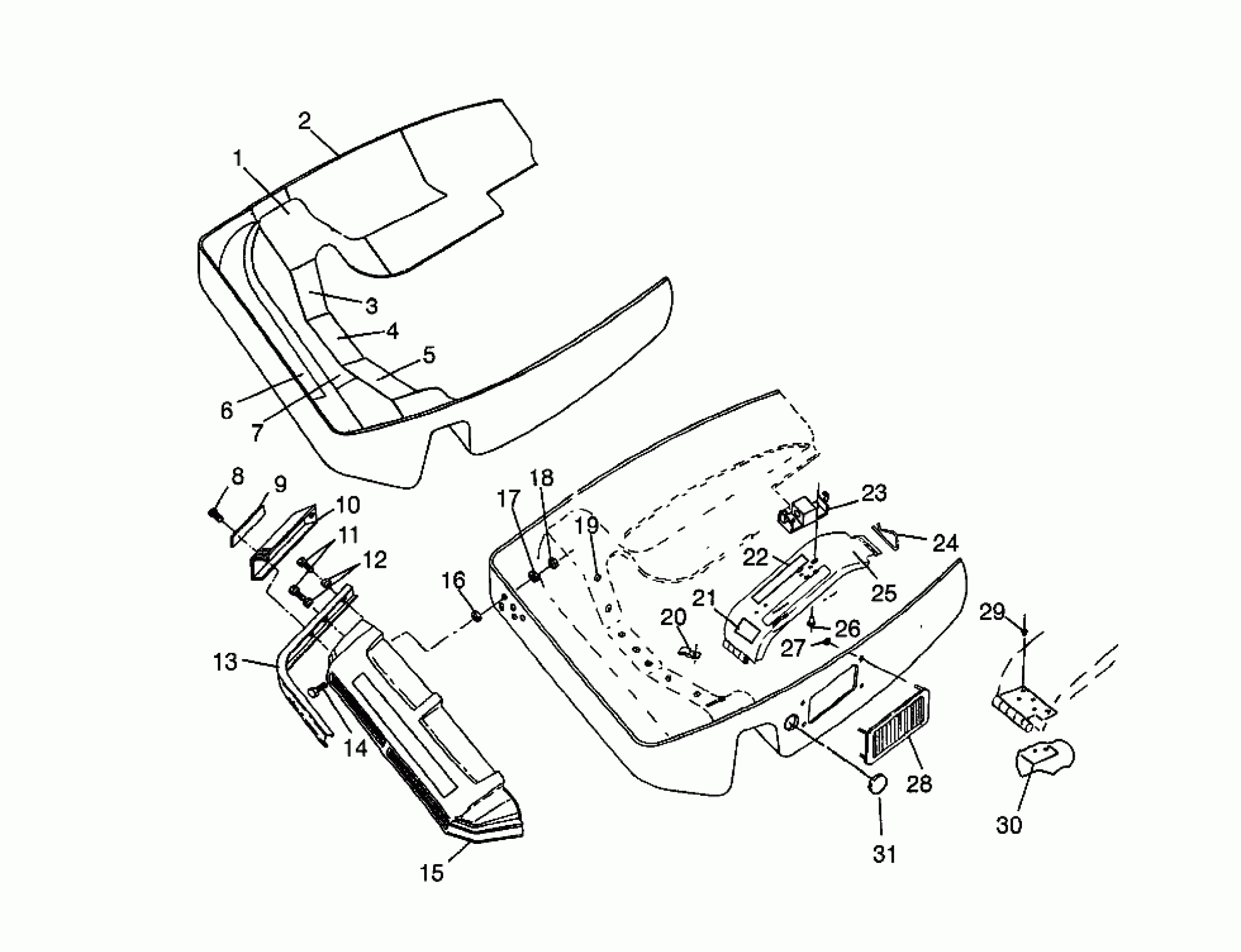

Polaris XCF - 0981643 NOSEPAN XCF 0981643 (4942774277A008) Diagram
#
Description
Price
1
TAPE,FOIL,PAN#6 Substituted by 5811723
5810496
Unavailable
2
TAPE,FOIL,PAN#7
5810497
Unavailable
3
TAPE,FOIL,PAN#3
5810493
Unavailable
4
TAPE,FOIL,PAN#5
5810495
$5.65
5
TAPE,FOIL,PAN#4
5810494
Unavailable
6
TAPE,FOIL,PAN#1
5810491
Unavailable
7
TAPE,FOIL,PAN#2
5810492
Unavailable
8
SCREW(10)
7511863
$1.99
9
EMBLEM,POLARIS,RED
5431876-136
Unavailable
10
CAP,BUMPER,WHITE
5430930-133
Unavailable
11
SCREW(10)
7512113
$3.99
12
LOCK WASHER(10)
7552801
$1.59
13
BUMPER,FR.LW,WHITE
5224517-133
$154.99
14
SCREW(10)
7515187
$3.03
15
NOSECONE,BR.WHT.MET/BLK
5430931-1074
Unavailable
16
CAP, TOWER
5020517
$16.49
17
WASHER(10)
7558301
$1.49
18
NUT-LOCK(10)
7542122
$1.49
19
RIVET, BLIND(50)
7621467
$1.49
20
CLIP,WIRING
7080665
Unavailable
21
DECAL,TRBLSHOOT.X-10
7077211
Unavailable
22
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
23
CADDY,SPARKPLUG
5431761
$11.59
24
PIN,RETAINING,(10)
7080216
$9.70
25
GUARD ASM,CLUTCH,F/C Substituted by 1012823 (Incl. Hinge)
1012510
$65.87
26
RIVET, POP(50)
7621330
$1.49
27
PALNUT(10)
7670009
$2.39
28
GRILL,BLK,LOUVERED
5430958-070
$36.41
29
POP RIVET(50)
7621402
$1.49
30
PLATE,BACKER,CLUTCH GUARD
5211722
$10.51
31
PLUG,NOSEPAN HOLE
5410820
$15.99
