FRONT TORQUE ARM XCF 0981643 (4942774277B011)

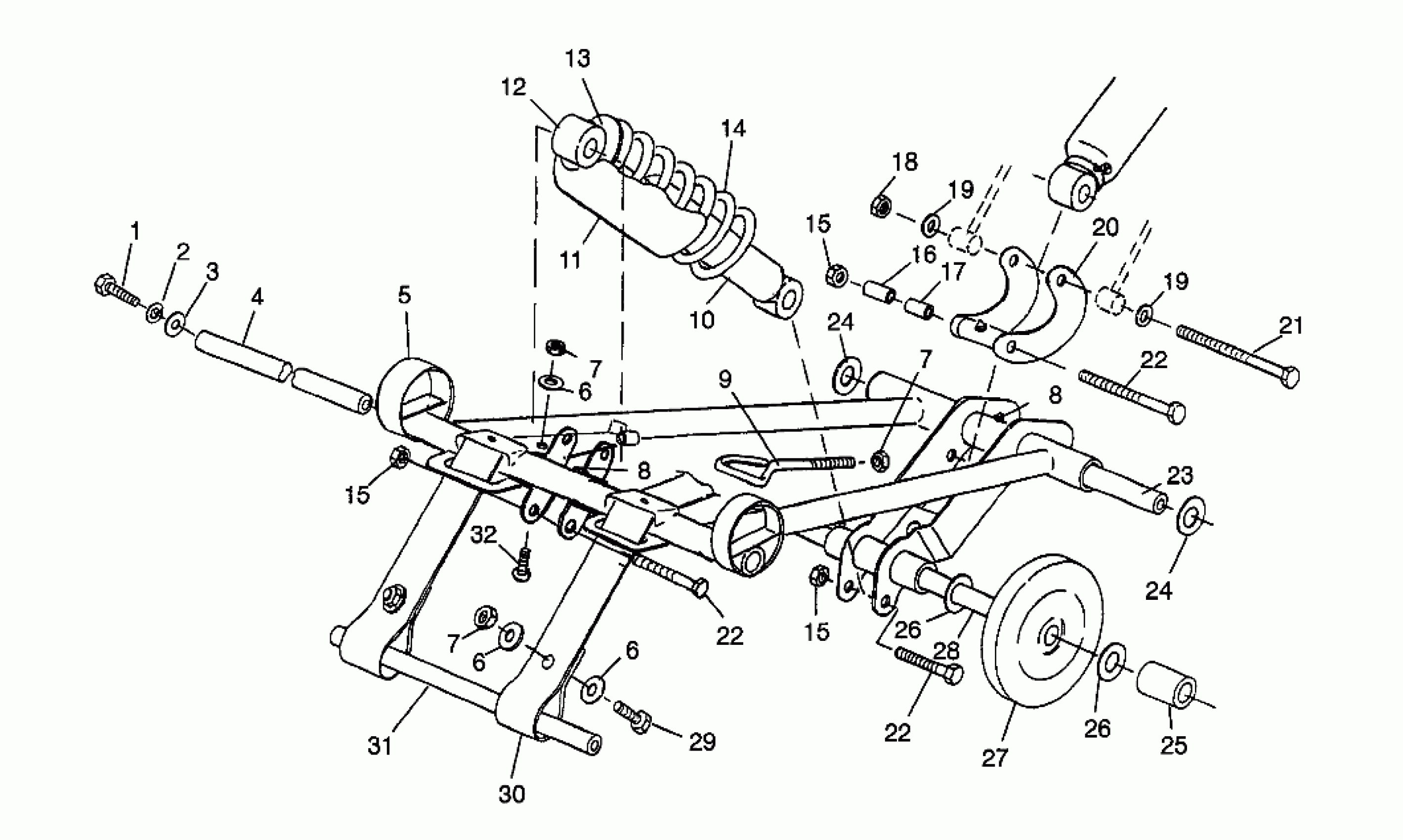

Polaris XCF - 0981643 FRONT TORQUE ARM XCF 0981643 (4942774277B011) Diagram
#
1
SCREW,SEMS Substituted by 7517247
7517236
$3.17
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
Shaft
5131450
Unavailable
5
ARM,F.TORQUE,X-10 Substituted by 1541203-067
1541140-067
Unavailable
6
WASHER(10)
7555716
$1.59
6
WASHER(10)
7555716
$1.59
6
WASHER(10)
7555716
$1.59
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
BOLT,EYE
7010050
Unavailable
10
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
11
SHIELD-SPRING
5430671
$24.27
12
SHOCK,F.TRK,X-10,FX
7041596
Unavailable
13
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
14
SPRING,BLACK,COMP.
7041253-067
$95.22
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
16
Spacer
5333028
$1.59
17
BUSHING,PIVOT TUBE
5020561
$1.59
18
NUT LOCK(10)
7542411
$3.19
19
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
19
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
20
ARM,SHOCK
1540942-067
Unavailable
21
BOLT(10)
7515472
$2.39
22
BOLT(10)
7515438
$4.79
22
BOLT(10)
7515438
$4.79
22
BOLT(10)
7515438
$4.79
23
Shaft (See Pg. A23, Ref. 20)
-------
Unavailable
24
WASHER(10)
7555893
$1.49
24
WASHER(10)
7555893
$1.49
25
SPACER, OUTER
5332784
Unavailable
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
27
Bogie Wheel (See Pg. A24, Ref. 20)
-------
Unavailable
28
Shaft (See Pg. A23, Ref. 18)
-------
Unavailable
29
SCREW ,(10)
7517313
$4.79
30
STRAP,LIMITER,FRONT
5411045
Unavailable
31
Shaft, Pivot Arm (See Pg. A23, Ref. 17)
-------
Unavailable
32
BOLT(10)
7512377
$4.79
