FRONT SUSPENSION XCF 0981643 (4942774277B001)

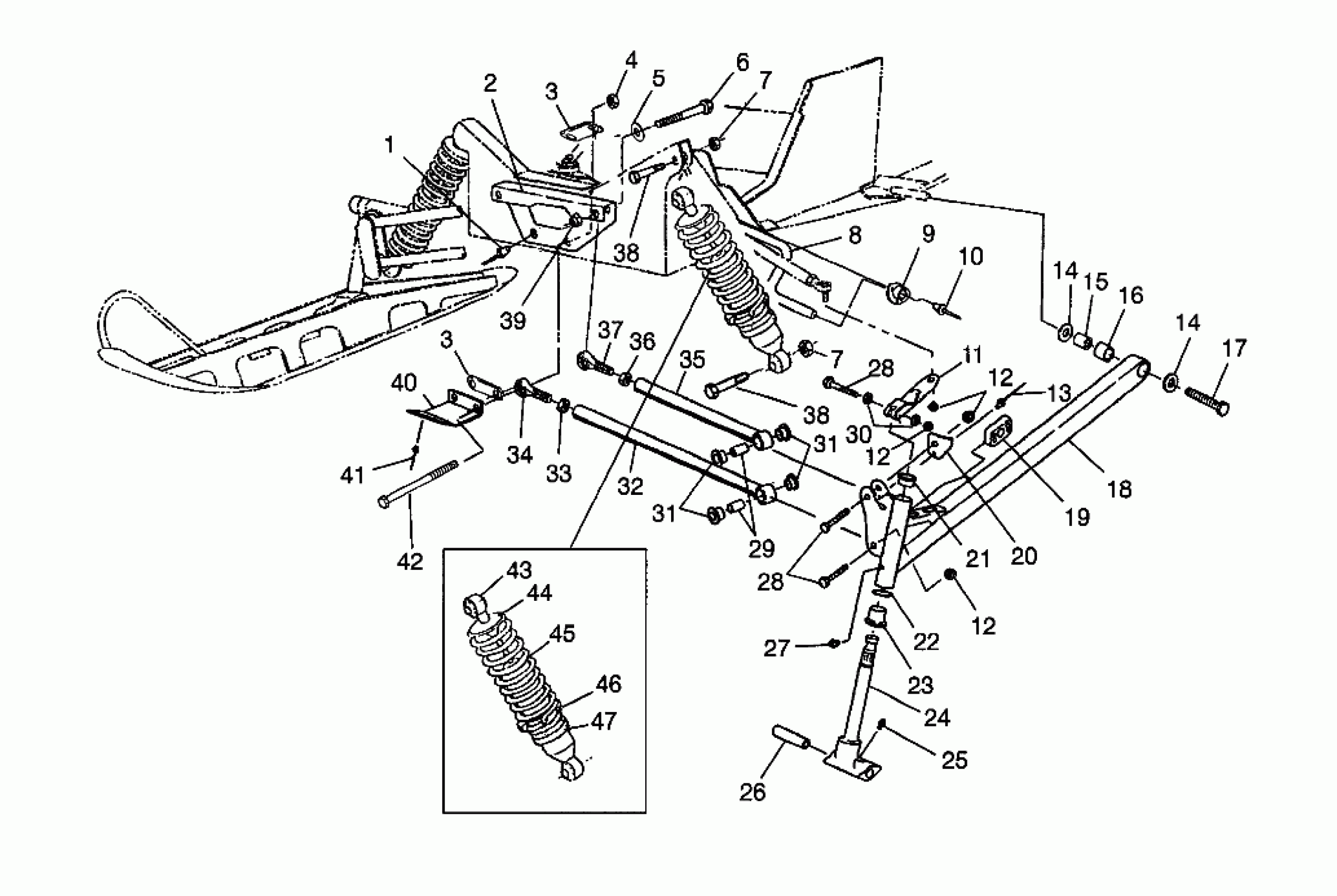

Polaris XCF - 0981643 FRONT SUSPENSION XCF 0981643 (4942774277B001) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,FR.BULKH.,BLK Substituted by 5242112-067
5241641-067
Unavailable
3
STRAP,SPACER BOTTOM
5211345
$12.99
3
STRAP,SPACER BOTTOM
5211345
$12.99
4
NUT FLEX,(10)
7542703
Unavailable
5
WASHER THRUST(10)
7558702
$1.59
6
BOLT(10)
7512551
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BAR,SWAY,9/16,X-10,BLK
5224743-067
$70.39
9
BUSHING,SWAY BAR
5432412
$15.99
10
RIVET,(50)
7621477
$1.19
11
ARM,LH,STRG,BLK.
5241660-067
Unavailable
11
ARM,RH,STRG,BLK.
5241661-067
Unavailable
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
RIVET(50) Substituted by 7661130
7661643
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE, BUSHING
5010310
$9.70
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH (Incl. 15, 16)
1822449
Unavailable
18
ARM,TRLG,RH (Incl. 15, 16)
1822450
Unavailable
19
SLIDE,SWAYBAR,9/16
5432332
$32.37
20
STOP,LH,STRG,BLK
5241777-067
$15.08
20
STOP,RH,STRG,BLK.
5241778-067
$18.23
21
BUSHING-FLANGE
3573909
$2.39
22
WASHER SPECIAL(10)
7556509
$1.59
23
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
24
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
25
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
ZERK,FITTING,THREADED(10)
7080433
$1.49
28
BOLT(10) Substituted by 7517583
7515491
Unavailable
28
BOLT(10) Substituted by 7517583
7515491
Unavailable
29
BUSHING-RADIUS ROD,(10)
5010127
$7.99
30
WASHER(10) Substituted by 7555832
7555851
Unavailable
31
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
31
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
32
ROD,RAD,LOWER,BLK
1822377-067
Unavailable
33
NUT-JAM(10)
7542711
$2.39
34
ROD END Substituted by 7061027
7060162
$48.56
35
ROD,RAD,UPPER,BLK
1822375-067
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD,END,7/16 LINED Substituted by 7061049
7061010
Unavailable
38
BOLT(10) Substituted by 7515415
7515515
Unavailable
38
BOLT(10) Substituted by 7515415
7515515
Unavailable
39
NUT, LOCK,(10)
7542503
$10.39
40
BRACE, PAN
5223997-067
Unavailable
41
RIVET(50)
7621452
$1.49
42
BOLT(10)
7512684
Unavailable
43
SHOCK,GAS,IFS,SELECT
7041523
Unavailable
44
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
45
SPRING,COMP,IFS
7041552-067
$44.51
46
RING,SPRING PRELOAD ADJ.
5431734
$52.60
47
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
