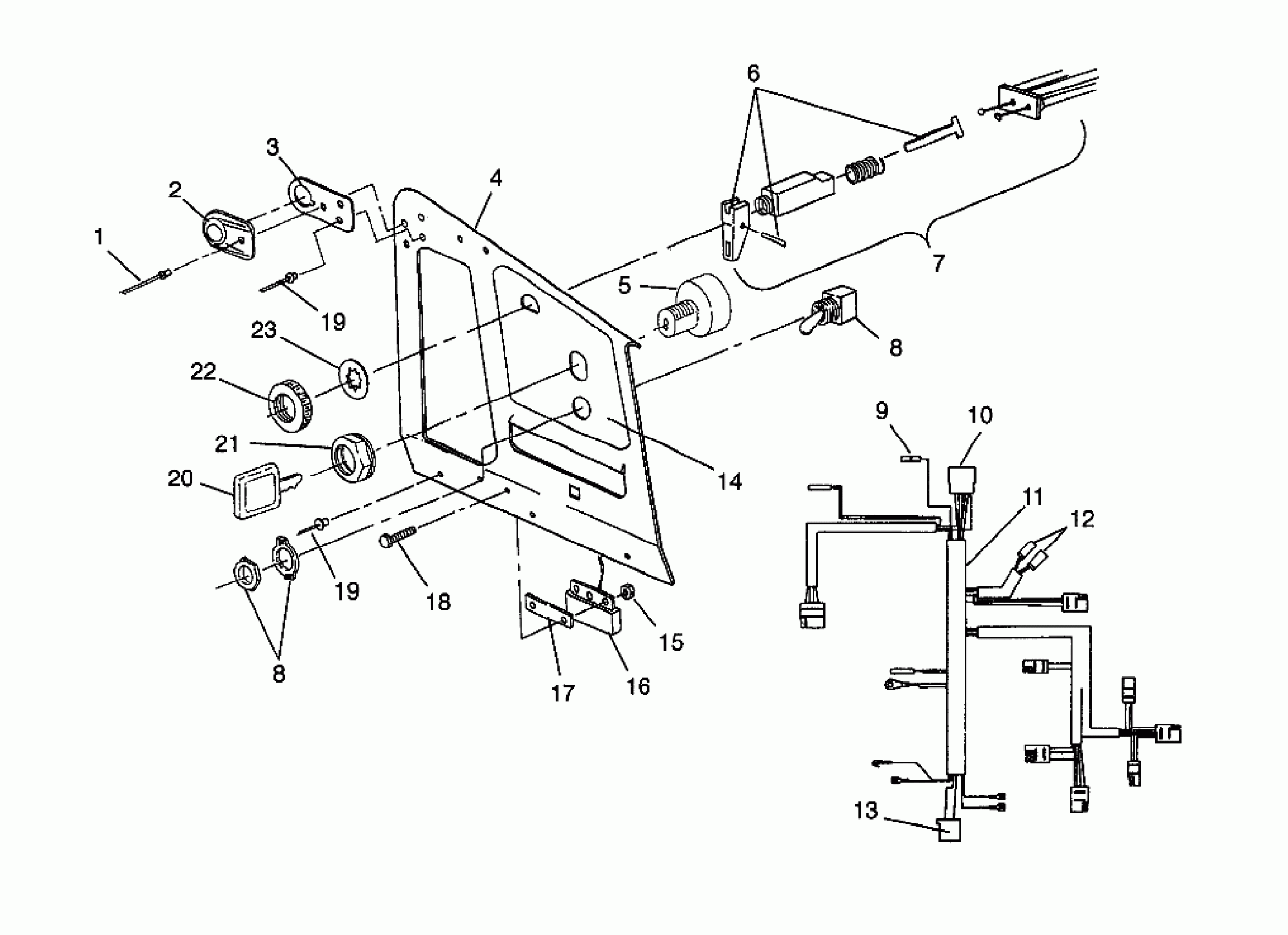

Polaris XCF - 0981643 CONSOLE XCF 0981643 (4942774277A013) Diagram
#
Description
Price
1
RIVET(50) Substituted by 7661130
7661643
Unavailable
2
GUIDE, RECOIL
5431385
$10.51
3
BRKT,ROPE GUIDE,BLK.
5222682-067
Unavailable
4
CONSOLE,W/IGNITION,BLK,SP.
5241518-067
Unavailable
5
KIT,IGN. SWITCH (Incl. 20)
2200357
Unavailable
6
KIT-CHOKE CONTROL
2200188
$24.27
7
Cable, Choke Control
7080290
$105.22
8
SWITCH,H-BAR HEATER
4110066
Unavailable
8
SWITCH,H-BAR HEATER
4110066
Unavailable
9
HOUSING
4020133
Unavailable
10
Housing w/Receptacle
4020057
$3.51
11
HARNESS,MAIN WIRE
2460590
$108.06
12
Housing
4020153
$1.49
13
HOUSING
4020063
$3.19
14
DECAL,CONSOLE,VENTED
7076251
Unavailable
15
NUT(10)
7541925
$1.49
16
REGULATOR,14 VAC.LR-9
4060122
Unavailable
17
SPACER,REGULATOR
5211573
Unavailable
18
BOLT(10)
7512031
$2.23
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch bo
5410611
Unavailable
21
NUT,IGNITION
7547035
$8.79
22
Nut
7080229
$19.99
23
WASHER-LOCK(10)
7571610
$3.99
