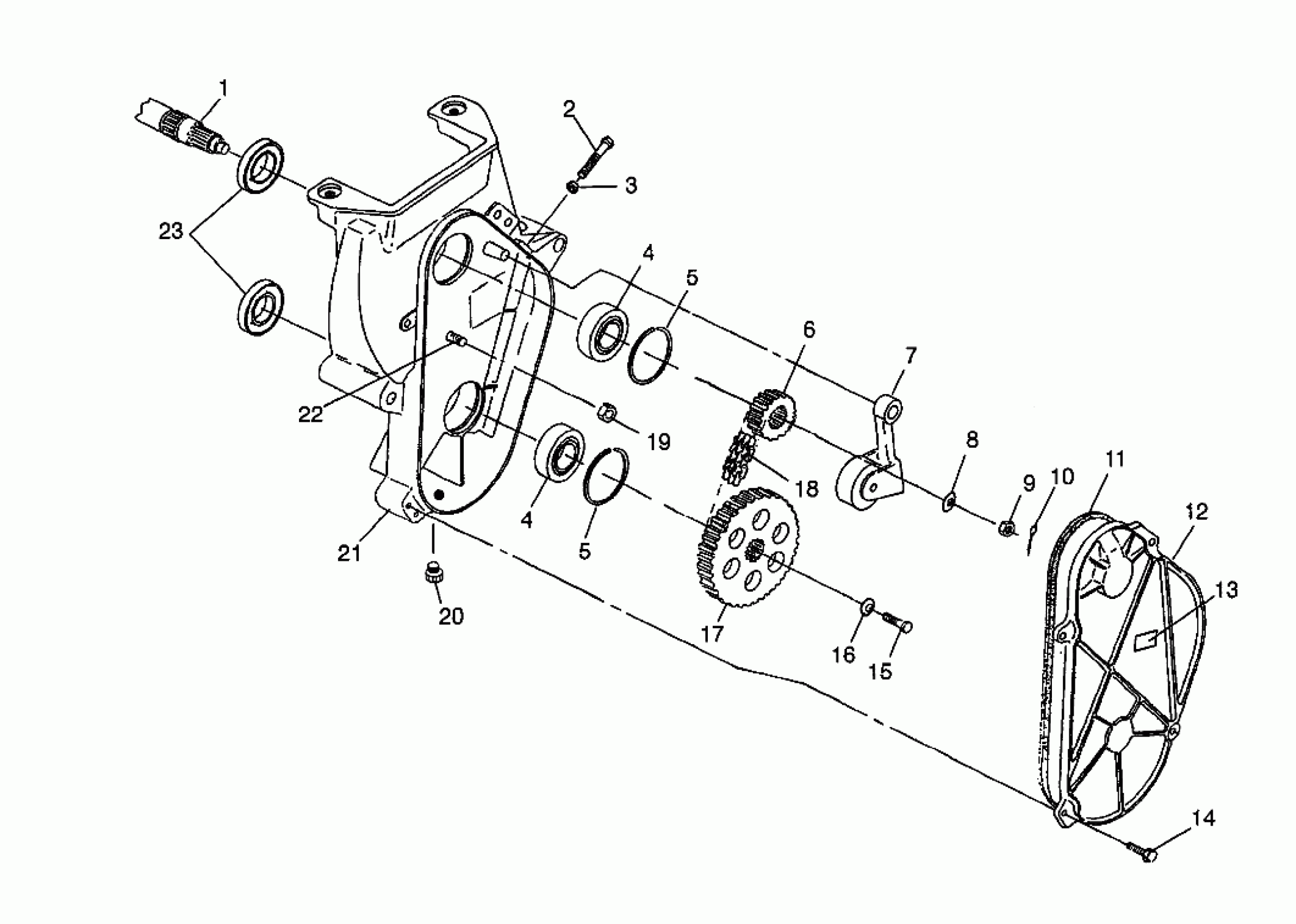

Polaris XCF - 0981643 CHAINCASE XCF 0981643 (4942774277B007) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. A22, Ref. 16)
-------
Unavailable
2
SCREW(10)
7515511
$3.99
3
NUT(10)
7542404
$1.59
4
BEARING
3514308
Unavailable
4
BEARING
3514308
Unavailable
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
SPKT,19T,3/4W,15T SPL,HYVO Substituted by 2900003 (3/4W)
3221086
Unavailable
7
PIN,CHAIN TIGHTENER
7662210
Unavailable
7
TIGHTENER ASM,GEARCASE Substituted by 1332213 (Incl. following)
1332096
$159.99
7
BEARING
3553002
$11.99
7
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
7
WHEEL,C/C IDLER
5630123
Unavailable
7
WASHER THRUST(10)
7558702
$1.59
8
WASHER, SLOTTED(10)
7571620
$7.19
9
NUT
7542811
Unavailable
10
COTTER PIN(10)
7661401
$1.49
11
GASKET-CHAINCASE
5410277
$24.99
12
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
13
DECAL,CAUT.SPKT/CHAIN
7076764
Unavailable
14
SCREW(10)
7512242
$2.39
15
SCREW(10)
7515350
$3.97
16
WASHER(10)
7571618
$6.39
17
SPKT,39T,3/4W,15T SPL,HYVO Substituted by 2900012 (3/4W)
3222105
$22.79
18
CHAIN,66P,3/4W,HYVO Substituted by 3221113 (3/4W)
3224071
$124.99
19
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
20
PLUG(10)
7052115
$5.65
21
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
22
BOLT(10)
7515477
$34.99
23
SEAL-OIL
3610030
$20.22
