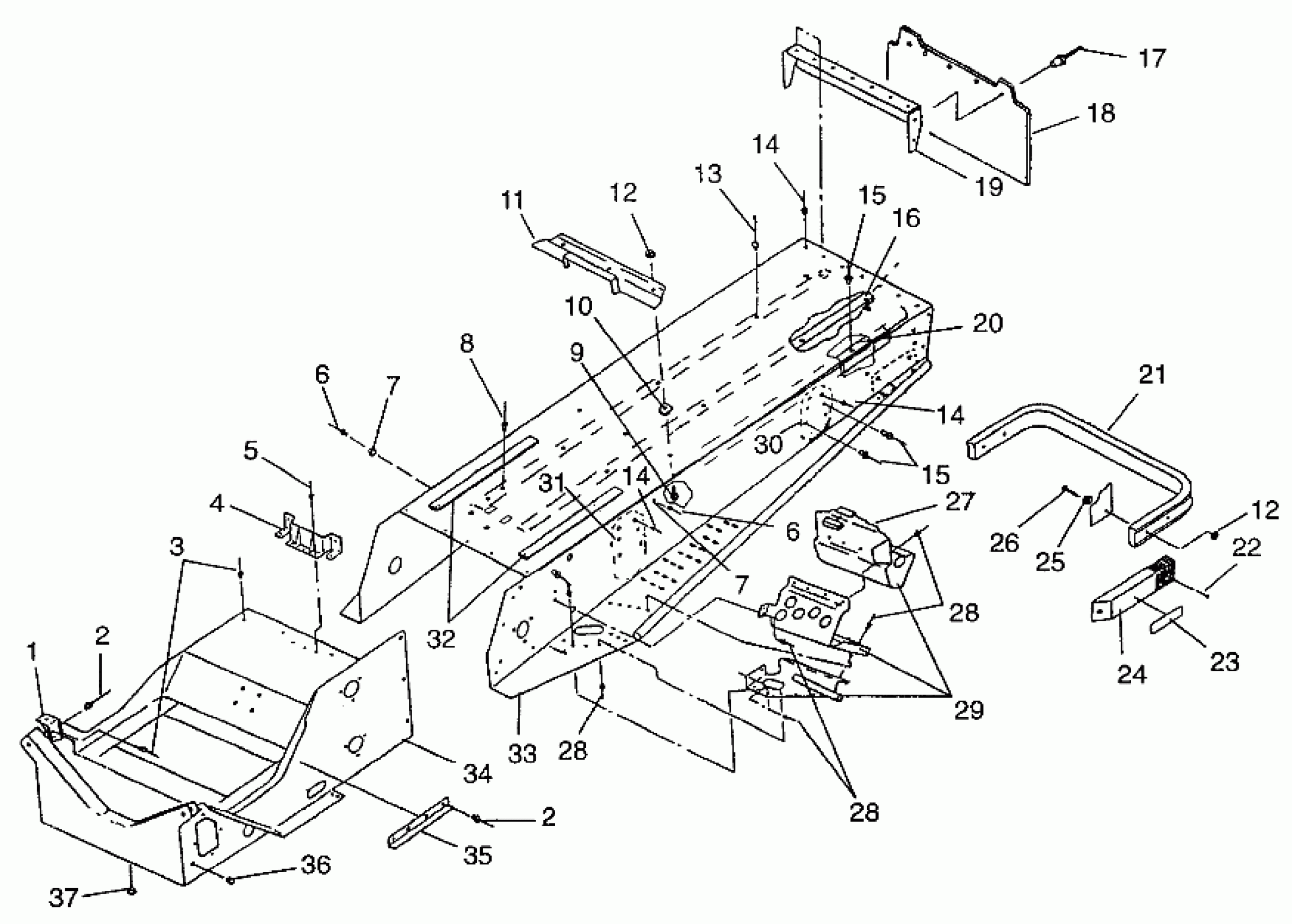

Polaris XCF - 0971643 TUNNEL XCF 0971643 (4938613861A005) Diagram
#
1
SUPPORT,MUFFLER,BLK.
1012233-067
Unavailable
2
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
2
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
3
RIVET-3/16-.090-.290
7661637
$1.49
4
BRKT,GASTANK,WELD.
1011733-067
$19.73
5
RIVET(50)
7621301
$3.99
6
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
6
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
7
SNAP-MALE(10)
7080227
Unavailable
7
SNAP-MALE(10)
7080227
Unavailable
8
RIVET,3/16X.402(50)
7621432
$1.49
9
BOLT(10)
7512193
$2.39
10
SPEED NUT(10)
7670021
$6.99
11
STRAP,GASTANK,BLK
1011732-067
Unavailable
12
NUT-LOCK(10)
7542122
$1.49
12
NUT-LOCK(10)
7542122
$1.49
13
POP RIVET(50)
7621402
$1.49
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
15
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
15
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
16
MOUNT,WEAR STRIP
5131009
Unavailable
17
POP RIVET(50)
7621418
$1.49
18
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
19
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
20
BRACE,TUNNEL,REINF.CORNER Substituted by 5244452
5241852
Unavailable
21
BUMPER,REAR,BLK.
5224334-067
Unavailable
22
SCREW(10)
7511863
$1.99
23
REFLECTOR RED
2670070
$9.91
24
CAP, BUMPER, BLK.
5430930-070
Unavailable
25
WASHER(10)
7558301
$1.49
26
BOLT(10)
7512240
$3.99
27
EXTRUSION,CLUTCHGUARD
5521238
$6.46
28
RIVET,INTERLOCK,B(50)
7661638
$1.49
28
RIVET,INTERLOCK,B(50)
7661638
$1.49
28
RIVET,INTERLOCK,B(50)
7661638
$1.49
29
FOOTREST ASM, LH
1011861
Unavailable
29
FOOTREST ASM,RH,BLK.
1012471
Unavailable
30
PAD,LH,R.SUSP.
5241268-067
Unavailable
30
PAD,RH,R.SUSP.
5241269-067
Unavailable
31
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
31
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
32
PAD-GAS TANK
5810063
$4.95
33
TUNNEL,F/C,BLK. (Incl. 19, 20, 30, 31)
1012513
$366.65
34
BULKHEAD,CRC
1012470-067
$396.83
35
GUARD,ADAPTER,DRIVE
5240441
Unavailable
36
PLUG, HOLE(10)
7080416
$5.65
37
PLUG-HOLE
7080398
$4.84
