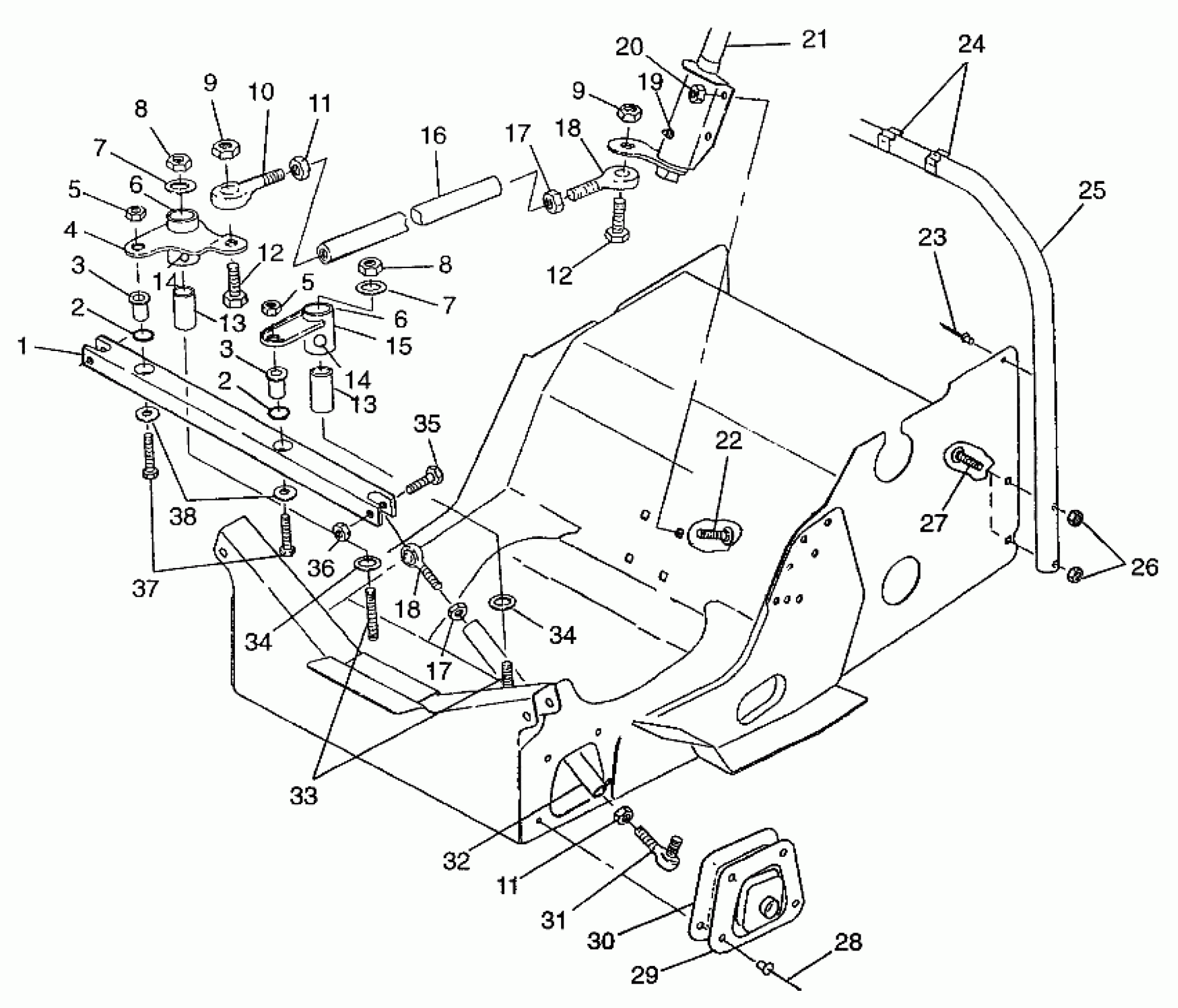

Polaris XCF - 0971643 STEERING XCF 0971643 (4938613861B004) Diagram
#
1
RACK ASM,STEERING
1822413
$77.78
2
O-RING
5411220
$6.46
2
O-RING
5411220
$6.46
3
TUBE,SPACER
5010384
Unavailable
3
TUBE,SPACER
5010384
Unavailable
4
ARM ASM,PITMAN Substituted by 1820585 (Incl. 6, 14)
1822441
Unavailable
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
BUSHING
3563907
$3.99
6
BUSHING
3563907
$3.99
7
WASHER(10)
7555721
$1.49
7
WASHER(10)
7555721
$1.49
8
NUT,FLEX LOC(10)
7542507
$3.99
8
NUT,FLEX LOC(10)
7542507
$3.99
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
10
ROD END,RH
7060167
$48.56
11
NUT HEX(10)
7542401
$2.39
11
NUT HEX(10)
7542401
$2.39
12
BOLT(10)
7512404
$3.99
12
BOLT(10)
7512404
$3.99
13
SPACER
5010385
Unavailable
13
SPACER
5010385
Unavailable
14
ZERK,FITTING,THREADED(10)
7080433
$1.49
14
ZERK,FITTING,THREADED(10)
7080433
$1.49
15
ARM,IDLER ASM. (Incl. 6, 14)
1822414
Unavailable
16
ROD,DRAG LINK
5020881
$18.23
17
NUT
7542424
$1.49
17
NUT
7542424
$1.49
18
ROD END,LH
7060166
$48.56
18
ROD END,LH
7060166
$48.56
19
FITTING,LUB/VEN(10)
7080561
$4.79
20
NUT-5/16-18 NYLOK-Y
7542324
$1.49
21
Steering Post (See Pg. A17, Ref. 20)
-------
Unavailable
22
BOLT(10) Substituted by 7512377
7512394
Unavailable
23
RIVET-3/16-.090-.290
7661637
$1.49
24
CLIP,CABLE RETAIN,(10)
7080631
$6.29
25
HOOP,STRG,BLK
1012514-067
Unavailable
26
NUT-LOCK(10)
7542122
$1.49
27
BOLT-CARRIAGE(10)
7512275
$3.99
28
POP RIVET(50)
7621323
$1.49
29
PLATE,BOOT,BLK
5211679-067
Unavailable
30
BOOT,TIE ROD
5410954
Unavailable
31
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
32
TIEROD,BLK
5020857-067
Unavailable
33
BOLT ,(10)
7512564
$3.81
34
WASHER,THRUST(10)
7555876
Unavailable
34
WASHER,THRUST(10)
7555876
Unavailable
35
SCREW(10)
7515434
Unavailable
36
NUT LOCK(10)
7542411
$3.19
37
BOLT(10) Substituted by 7517583
7515491
Unavailable
38
WASHER(10)
7555893
$1.49
