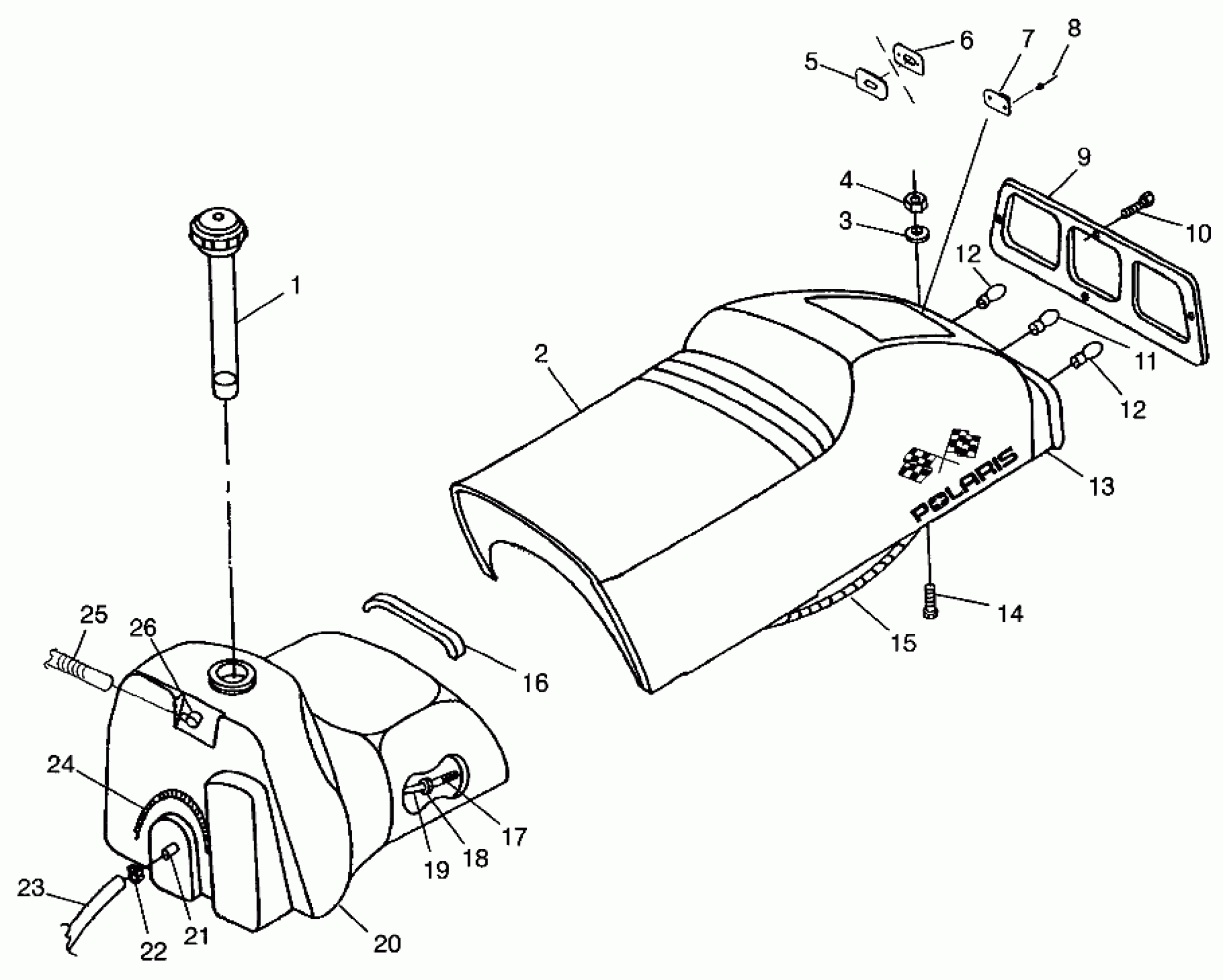

Polaris XCF - 0971643 SEAT and GAS TANK XCF 0971643 (4938613861A006) Diagram

#

Description
Price

1

Gasket, Fuel Cap

5810512

$9.11

1

CAP,GAS,W/GAUGE,2 1/2"

2511277

Unavailable

2

COVER,SEAT,SP,XCF (Incl. 5-8)

2681961

Unavailable

2

SEAT ASM,XCF (Incl. 2, 5-13, 15)

2681962

Unavailable

3

WASHER,TOOTHED,DISH(10)

7571630

Unavailable

4

NUT-LOCK(10)

7542122

$1.49

5

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

6

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

RIVET(50)

7621337

$1.49

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

Bulb, Brakelight

4030045

Unavailable

12

BULB,TAILLIGHT(10)

4030024

$4.84

12

BULB,TAILLIGHT(10)

4030024

$4.84

13

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

14

BOLT(10)

7512193

$2.39

15

Harness, Taillight

2460399

Unavailable

16

CUSHION,TANK H.D.

5420126

Unavailable

17

FUELPICKUP,W/STRAINER

7052037

$12.94

18

RING, COMPRESSION(10)

7080402

$1.60

19

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

20

TANK,FUEL,BLK,(SP) Substituted by 2200765 (Incl. 1, 17-21, 26)

2511278

Unavailable

21

FITTING - OUTLET(10)

7052023

$24.99

22

HOSE CLAMP, RED (Red)

7080003

$1.49

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

24

SPRING,TANK,(10)

7042020

$13.75

25

FUEL LINE,3/16 ID(600 CM.)

8450037-600

Unavailable

25

SPRING,PROTECT VENTHOSE

7041643

$3.51

26

ELBOW, TUBE

7052055

$4.95
