OIL TANK/AIR BOX XCF 0971643 (4938613861C003)

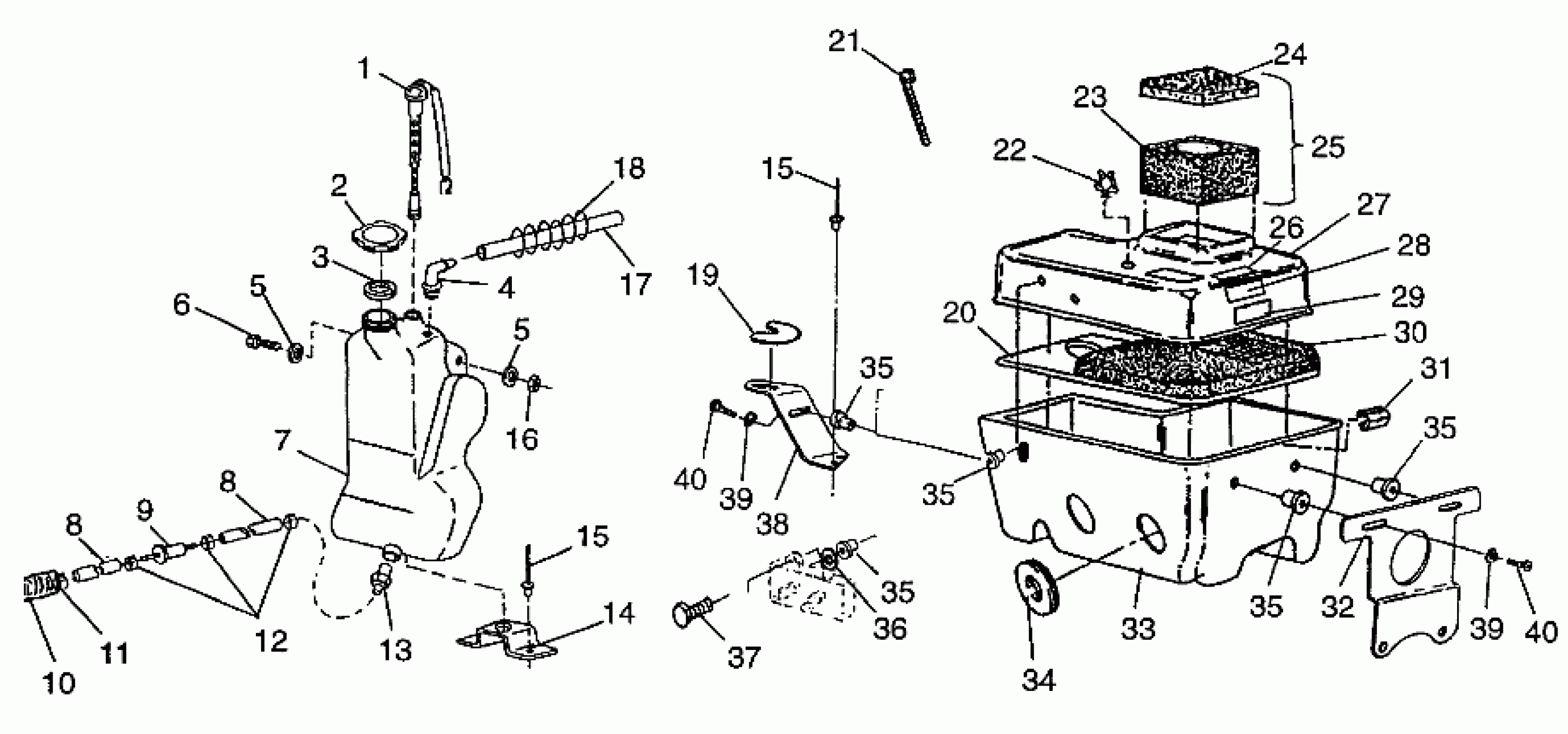

Polaris XCF - 0971643 OIL TANK/AIR BOX XCF 0971643 (4938613861C003) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
FITTING,90 DEG,1/8,(10)
7052095
$4.79
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
BOLT(10)
7512103
$3.19
7
TANK, OIL
5430997
Unavailable
8
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
8
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
9
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
10
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
11
CLAMP-HOSE,(10)
7080236
$1.59
12
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
13
FITTING, OUTLET
7052042
$8.99
14
BRKT,OILTANK,COINED (Coined)
5241334
$9.70
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
NUT-LOCK(10)
7542122
$1.49
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
18
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
19
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
20
PLATE,AIR SILENCER
5850075
$24.27
21
STRAP, BLK
7080272
Unavailable
22
CLIP, PLASTIC(10)
4020139
$4.79
23
FOAM, INTAKE
5810468
Unavailable
24
FOAM,INTAKE,TOP
5810457
Unavailable
25
INTAKE ASM, FOAM (Incl. 23, 24)
1253107
$36.41
26
DECAL,CAUTION,AIRBOX
7075351
Unavailable
27
COVER,SILENCER,DRILLED
5432243
Unavailable
28
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
29
DECAL, GREASING [No Longer Available]
7073426
$7.27
30
BAFFLE ASM. (Incl. 20)
1253102
$64.75
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
BRKT,AIR BOX
5241080-067
Unavailable
33
SILENCER,INTAKE,DRILLED
5431925
Unavailable
34
BOOT
5410403
$12.99
35
NUT-WELL(10)
7541923
$5.59
35
NUT-WELL(10)
7541923
$5.59
35
NUT-WELL(10)
7541923
$5.59
35
NUT-WELL(10)
7541923
$5.59
35
NUT-WELL(10)
7541923
$5.59
36
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
37
SCREW(10)
7512222
$2.39
38
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
39
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
39
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
40
SCREW(10)
7512279
$1.49
40
SCREW(10)
7512279
$1.49
