Description

Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

2

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

3

SCREW-AIR VENT

3083125

Unavailable

4

PACKING(10)

3083126

$4.03

5

PUMP, OIL (Incl. 3-10, 15)

3084987

Unavailable

6

SPRING-RETURN

3083123

Unavailable

7

COLLAR, CAMSHAFT(10)

3083445

$2.39

8

LEVER, CONTROL

3084474

Unavailable

9

WASHER-SPRING(10)

3083121

$299.99

10

NUT(10)

3083120

$3.19

11

SCREW&WASHER,(10)

3083783

$2.39

12

GEAR, SMALL Substituted by 3083131

3084592

Unavailable

13

BUSHING(OIL PUMP)

3083353

$31.99

14

SPACER #3 (.6mm)

3083673

Unavailable

14

SPACER #2 (.3mm)

3083672

Unavailable

14

SPACER #1 (.15mm)

3083671

Unavailable

15

O RING

3083127

Unavailable

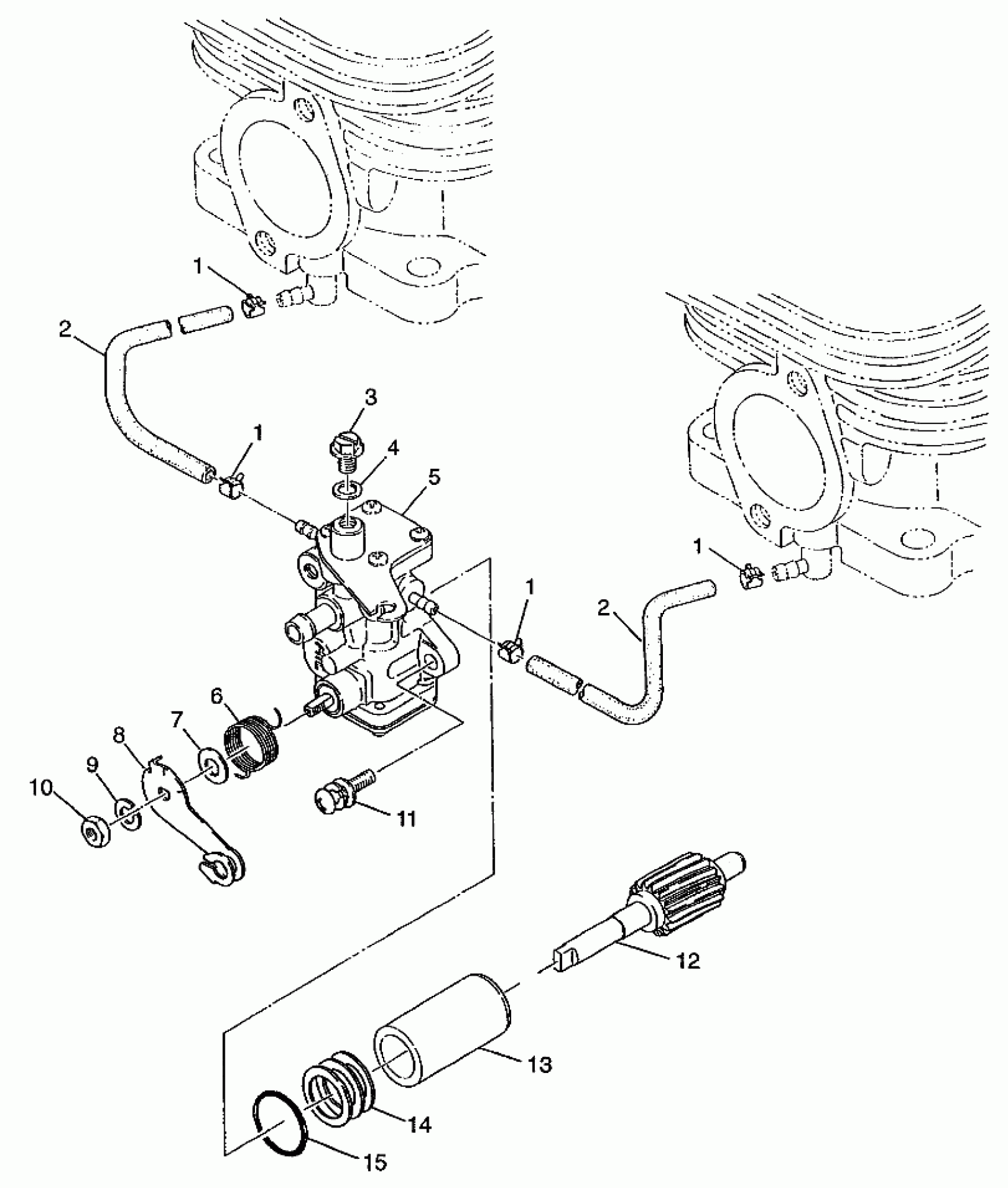

Polaris XCF - 0971643 OIL PUMP XCF 0971643 (4938613861C010) Diagram

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

PIPE#3,VINYL(L=315) Substituted by 3085591

PIPE#3,VINYL(L=315) Substituted by 3085591

SCREW-AIR VENT

PACKING(10)

PUMP, OIL (Incl. 3-10, 15)

SPRING-RETURN

COLLAR, CAMSHAFT(10)

LEVER, CONTROL

WASHER-SPRING(10)

NUT(10)

SCREW&WASHER,(10)

GEAR, SMALL Substituted by 3083131

BUSHING(OIL PUMP)

SPACER #3 (.6mm)

SPACER #2 (.3mm)

SPACER #1 (.15mm)

O RING
