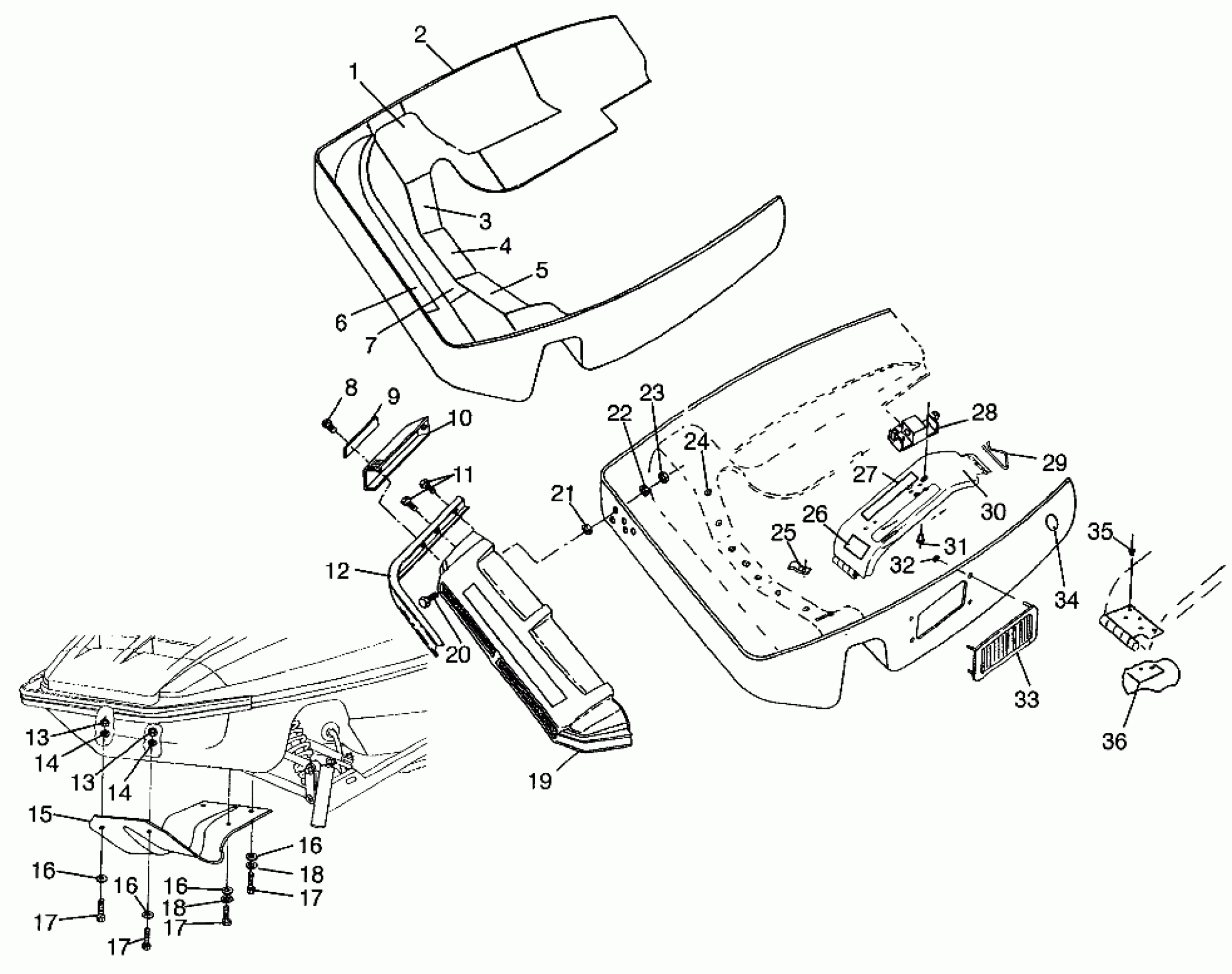

Polaris XCF - 0971643 NOSEPAN XCF 0971643 (4938613861A008) Diagram
#
1
TAPE,FOIL,PAN#6 Substituted by 5811723
5810496
Unavailable
2
TAPE,FOIL,PAN#7
5810497
Unavailable
3
TAPE,FOIL,PAN#3
5810493
Unavailable
4
TAPE,FOIL,PAN#5
5810495
$5.65
5
TAPE,FOIL,PAN#4
5810494
Unavailable
6
TAPE,FOIL,PAN#1
5810491
Unavailable
7
TAPE,FOIL,PAN#2
5810492
Unavailable
8
SCREW(10)
7511863
$1.99
9
EMBLEM'POLARIS'NEW PUR."C"
5431876-224
Unavailable
10
CAP,BUMPER,WHITE
5430930-133
Unavailable
11
SCREW(10)
7512102
$3.19
12
BUMPER,FR.LW,WHITE
5224517-133
$154.99
13
NUT(10)
7542124
Unavailable
13
NUT(10)
7542124
Unavailable
14
WASHER(10)
7558221
$2.39
14
WASHER(10)
7558221
$2.39
15
PLATE,SKID,HOLESHOT,P.RED Substituted by 2871659-07 (Red)
5432545-136
Unavailable
16
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
16
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
16
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
16
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
17
BOLT(10) Substituted by 7512247
7515184
Unavailable
17
BOLT(10) Substituted by 7512247
7515184
Unavailable
17
BOLT(10) Substituted by 7512247
7515184
Unavailable
17
BOLT(10) Substituted by 7512247
7515184
Unavailable
18
WASHER(10)
7552605
$5.27
18
WASHER(10)
7552605
$5.27
19
NOSECONE,(S'SPORT)
5430931-1038
Unavailable
20
SCREW(10)
7512279
$1.49
21
CAP, TOWER
5020517
$16.49
22
WASHER(10)
7558301
$1.49
23
NUT-LOCK(10)
7542122
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
25
CLIP,WIRING
7080665
Unavailable
26
DECAL,TRBL.SHOOT,X-10
7075714
Unavailable
27
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
28
CADDY,SPARKPLUG
5431761
$11.59
29
PIN,RETAINING,(10)
7080216
$9.70
30
GUARD ASM,CLUTCH,F/C Substituted by 1012823 (Incl. Hinge)
1012510
$65.87
31
RIVET, POP(50)
7621330
$1.49
32
PALNUT(10)
7670009
$2.39
33
GRILL,BLK,LOUVERED
5430958-070
$36.41
34
PLUG,NOSEPAN HOLE
5410820
$15.99
35
RIVET-3/16-.090-.290
7661637
$1.49
36
PLATE,BACKER,CLUTCH GUARD
5211722
$10.51
