Description

Price

1

MASTER CYL.ASM,3/4" (Incl. 2-17, 24)

2050070

Unavailable

2

SCREW,W/WASHER(10)

7512050

$3.99

3

COVER,MASTER CYL.

5630338

Unavailable

4

GASKET,MASTER CYL.

5410527

$8.99

5

WASHER, BAFFLE(10)

1930662

Unavailable

6

BAFFLE,MASTER CYL.

1930673

Unavailable

7

HOUSING,MASTERCYL.

5130955

$293.65

8

BOLT,SOCKET HEAD(10)

7512290

$4.79

9

CLAMP, MASTER CYL.

5630342

Unavailable

10

WASHER(10)

7555708

$3.99

11

SPRING, MASTERCYL.

7041311

Unavailable

12

U PACKING SEAL

5410164

Unavailable

13

PISTON,MASTER CYL.

5020679

Unavailable

14

O RING

5410163

$1.60

15

BUSHING,BRAKE LEVER

5332931

Unavailable

16

LEVER, BRAKE

5630409

Unavailable

17

NUT(10)

7542124

Unavailable

18

STRAP,PARK.BRAKE TAG

7080447

Unavailable

19

TAG,PARK.BRAKE

5431389

Unavailable

20

SCREW(10)

7511866

$4.79

21

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

22

LEVER,PARK.BRAKE

5240809

Unavailable

23

SPRING,PK.BRAKE

7041229

$32.37

24

BOLT,BRAKE LEVER(10)

7512287

Unavailable

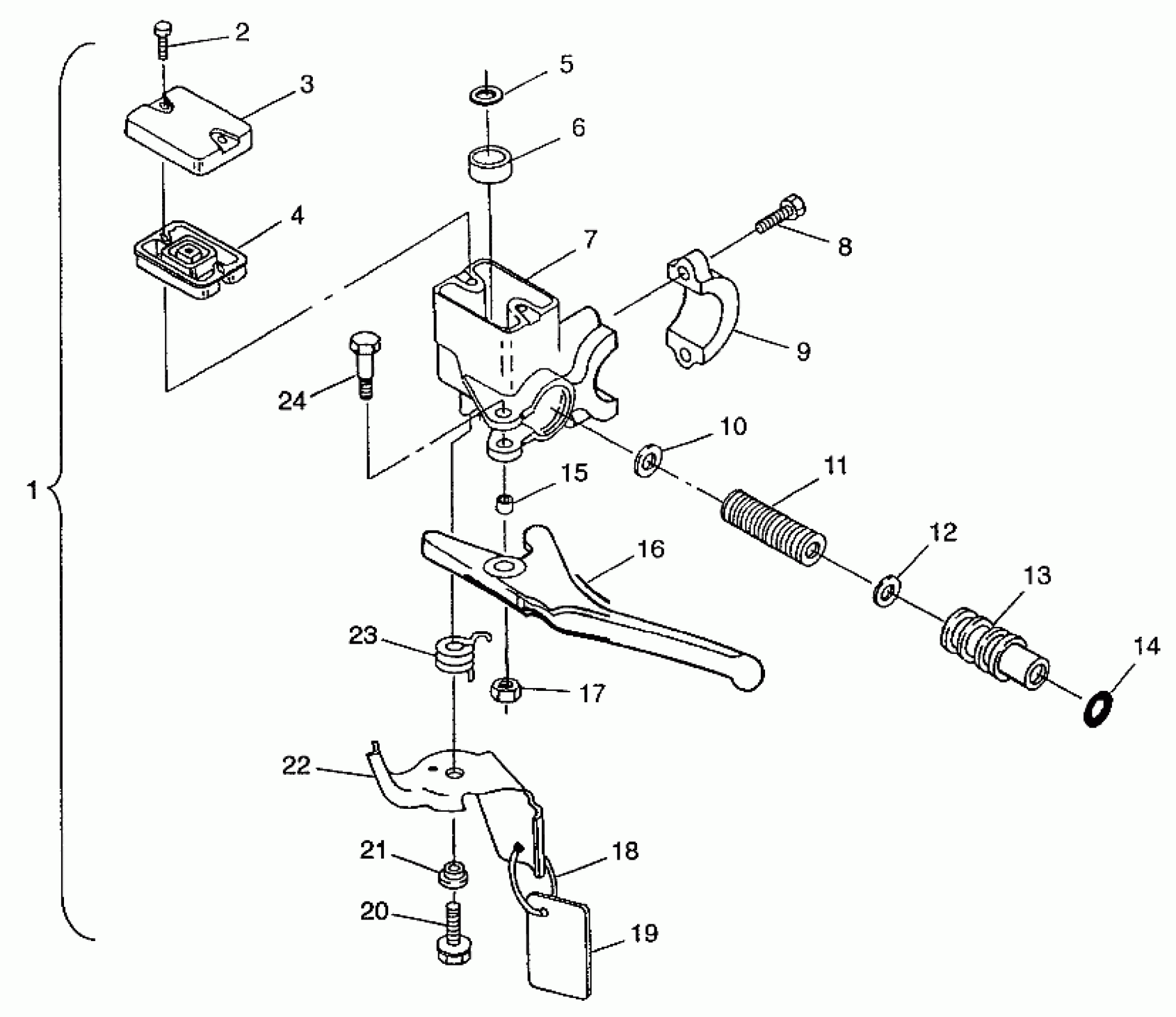

Polaris XCF - 0971643 MASTER CYLINDER XCF 0971643 (4938613861A014) Diagram

MASTER CYL.ASM,3/4" (Incl. 2-17, 24)

SCREW,W/WASHER(10)

COVER,MASTER CYL.

GASKET,MASTER CYL.

WASHER, BAFFLE(10)

BAFFLE,MASTER CYL.

HOUSING,MASTERCYL.

BOLT,SOCKET HEAD(10)

CLAMP, MASTER CYL.

WASHER(10)

SPRING, MASTERCYL.

U PACKING SEAL

PISTON,MASTER CYL.

O RING

BUSHING,BRAKE LEVER

LEVER, BRAKE

NUT(10)

STRAP,PARK.BRAKE TAG

TAG,PARK.BRAKE

SCREW(10)

BUSHING,PK.BRAKE LEVER

LEVER,PARK.BRAKE

SPRING,PK.BRAKE

BOLT,BRAKE LEVER(10)
