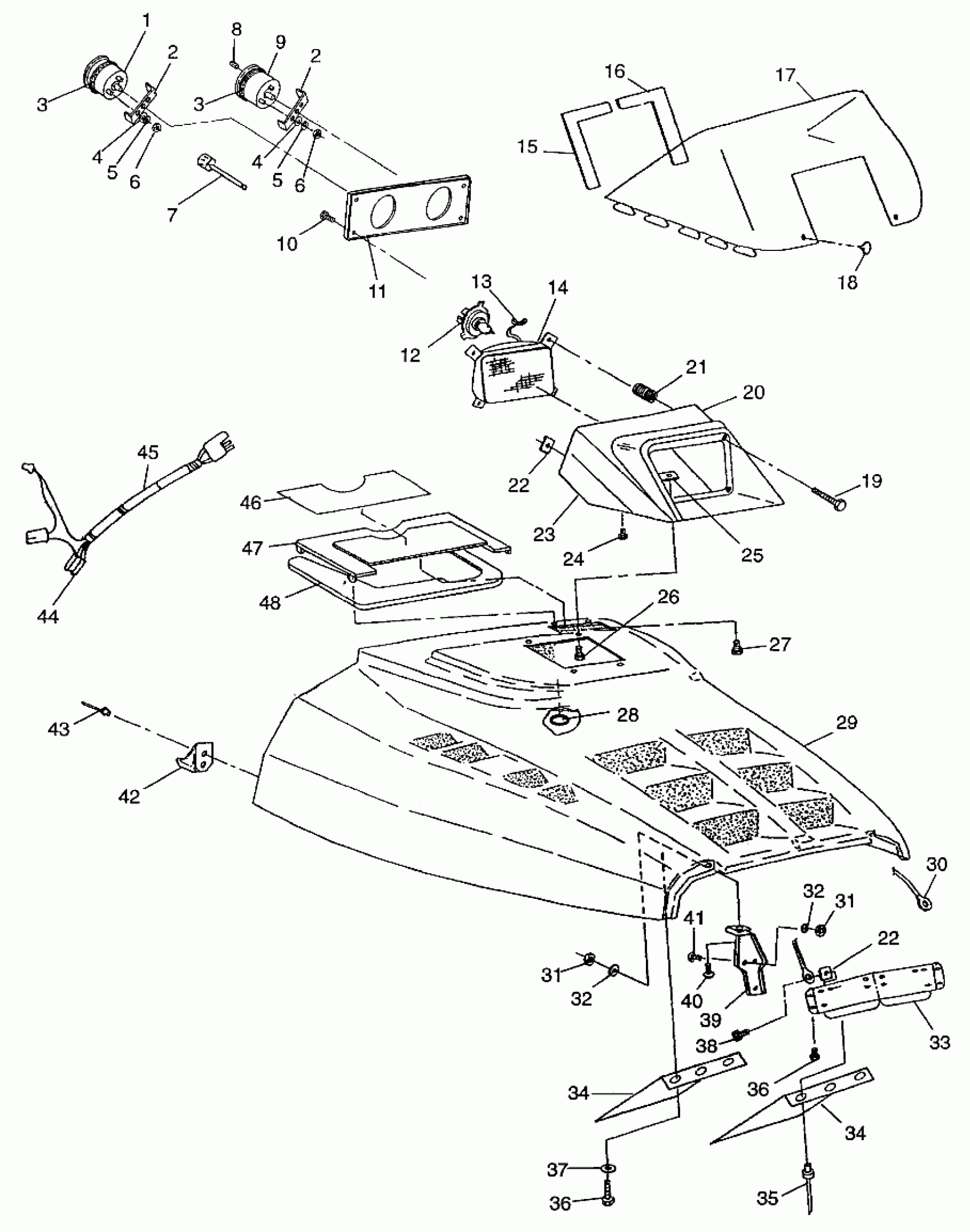

Polaris XCF - 0971643 HOOD XCF 0971643 (4938613861A009) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACH ASM,2P,BACKLIT,(5 IN.) Substituted by 3280293 (Incl. 2-6)
3280246
Unavailable
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
3
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
3
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
4
WASHER,FLAT,(10)
3280157
$2.39
4
WASHER,FLAT,(10)
3280157
$2.39
5
WASHER,SPLIT LOCK
3280156
$1.49
5
WASHER,SPLIT LOCK
3280156
$1.49
6
Nut
3280158
Unavailable
6
Nut
3280158
Unavailable
7
CABLE,SPEEDO.
3280094
$60.70
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
SPEEDO,BACKLIT (Incl. 2-6, 8)
3280204
Unavailable
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
BEZEL,INST,5IN.GAUGE
5432355
Unavailable
12
BULB, H/L
4030028
$29.99
13
RETAINER,H/L BULB
4032063
Unavailable
14
HEADLIGHT ASM. (Incl. 12, 13)
4032038
Unavailable
15
PAD, W/S
5810415
Unavailable
16
PAD, W/S, LH
5810414
Unavailable
17
WINDSHIELD,LOW,WHITE
5431712
Unavailable
18
RIVET,PLASTI-LOC.(50)
7621509
$1.49
19
SCREW, ADJ.(10)
4032003
Unavailable
20
HSG,INSTR,TOP,WHI.
5432349-133
Unavailable
21
SPRING-ADJ
4032002
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
23
HSG,INST.BOTT,WHITE
5430922-133
Unavailable
24
SCREW(10)
7512009
Unavailable
25
NUT, SPEED(10)
7670057
$1.49
26
SCREW, SEMS(10)
7512283
$3.99
27
SCREW(10)
7511840
Unavailable
28
RETAINER,WINDSHIELD,(10)
5410970
$1.49
29
HOOD,F/C,WHITE(INDY) (Incl. Foam, Foil & Warning Decals)
2631775-133
Unavailable
30
CABLE,HD.RETAINER
7080360
$24.27
31
NUT-LOCK(10)
7542122
$1.49
31
NUT-LOCK(10)
7542122
$1.49
32
WASHER,WROUGHT(10)
7558302
$1.59
32
WASHER,WROUGHT(10)
7558302
$1.59
33
PLATE,RE-INF.,(HD.)
5222105
$49.51
34
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
34
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
35
POP RIVET(50)
7621425
$1.49
36
SCREW(10)
7511861
Unavailable
36
SCREW(10)
7511861
Unavailable
37
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
38
SCREW(10)
7511989
Unavailable
39
HINGE ASM,HD,WHITE (White)
2635005-133
$15.70
40
BOLT-CARRIAGE(10)
7512263
$3.99
41
BOLT(10)
7512193
$2.39
42
CUP, HOOD LATCH,(10)
5430733
$4.84
43
RIVET(50)
7621334
$1.49
44
HOUSING
4020052
Unavailable
45
HARNESS,HEADLIGHT
2460576
Unavailable
46
DECAL,DASH WARN,PARKBRAKE
7075364
Unavailable
47
PANEL ASM,INTAKE,WHITE (Incl. 46)
2620091-133
Unavailable
48
SEAL, INTAKE
5810597
Unavailable
