FRONT SUSPENSION and SKI XCF 0971643 (4938613861B001)

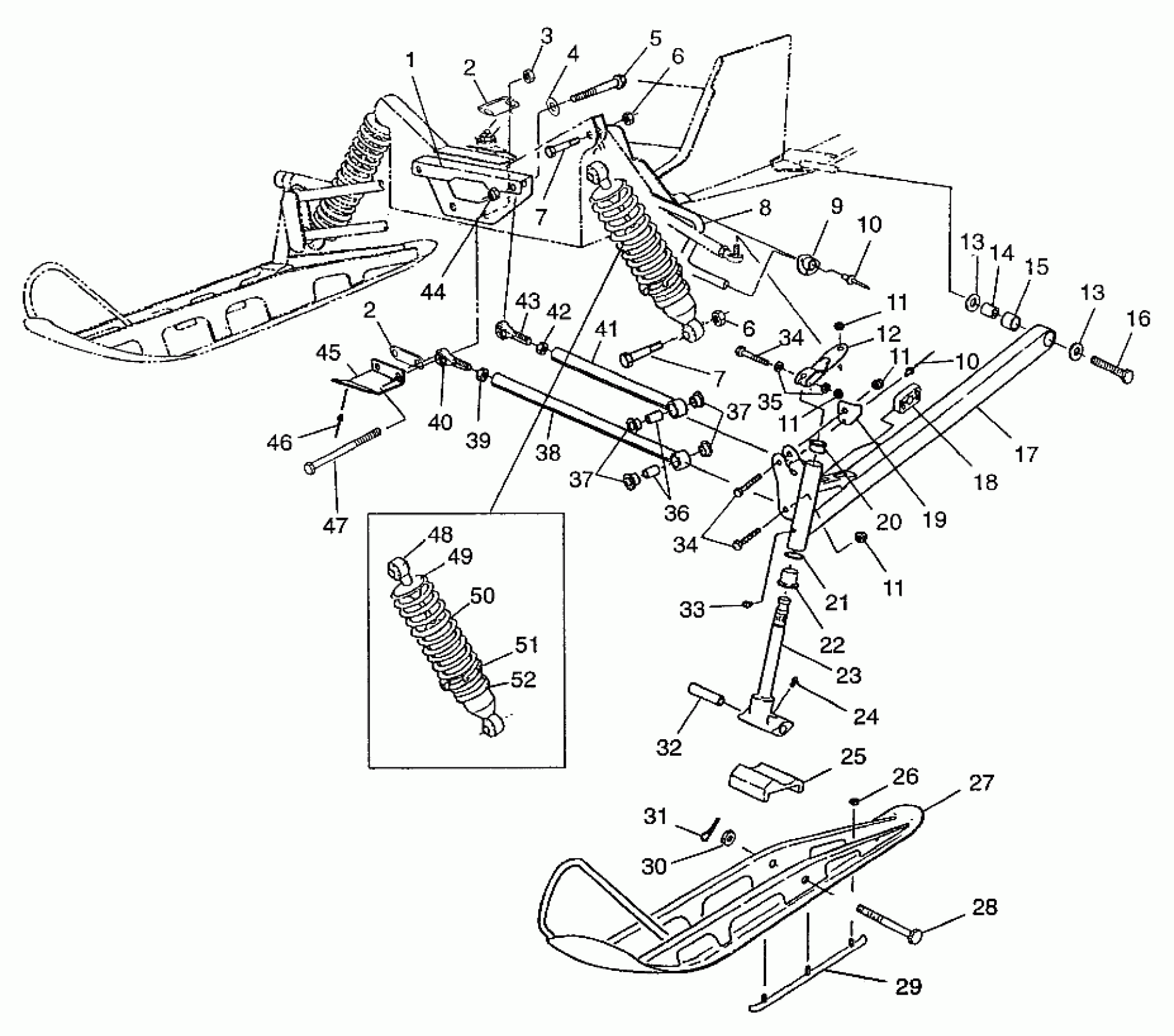

Polaris XCF - 0971643 FRONT SUSPENSION and SKI XCF 0971643 (4938613861B001) Diagram
#
1
BRACE,FR.BULKH.,BLK Substituted by 5242112-067
5241641-067
Unavailable
2
STRAP,SPACER BOTTOM
5211345
$12.99
2
STRAP,SPACER BOTTOM
5211345
$12.99
3
NUT FLEX,(10)
7542703
Unavailable
4
WASHER THRUST(10)
7558702
$1.59
5
BOLT(10)
7512551
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
7
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
BOLT(10) Substituted by 7515415
7515515
Unavailable
8
BAR,SWAY,9/16,X-10,BLK
5224743-067
$70.39
9
BUSHING,SWAY BAR
5432412
$15.99
10
RIVET(50) Substituted by 7661130
7661643
Unavailable
10
RIVET(50) Substituted by 7661130
7661643
Unavailable
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
ARM,LH,STRG,BLK.
5241660-067
Unavailable
12
ARM,RH,STRG,BLK.
5241661-067
Unavailable
13
WASHER(10)
7555721
$1.49
13
WASHER(10)
7555721
$1.49
14
TUBE, BUSHING
5010310
$9.70
15
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
16
BOLT(10)
7512557
$7.60
17
ARM,TRLG,LH (Incl. 14, 15)
1822449
Unavailable
17
ARM,TRLG,RH (Incl. 14, 15)
1822450
Unavailable
18
SLIDE,SWAYBAR,9/16
5432332
$32.37
19
STOP,LH,STRG,BLK
5241777-067
$15.08
19
STOP,RH,STRG,BLK.
5241778-067
$18.23
20
BUSHING-FLANGE
3573909
$2.39
21
WASHER SPECIAL(10)
7556509
$1.59
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
24
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
25
Stop, Rubber
5411083
$12.94
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
SKI WELD
1820430-067
Unavailable
28
BOLT(10)
7515462
$8.79
29
SKAG,PR.,CARBIDE
2870693
$69.99
30
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
31
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
32
BUSHING,PIVOT,(10)
5010158
$19.99
33
ZERK,FITTING,THREADED(10)
7080433
$1.49
34
BOLT(10) Substituted by 7517583
7515491
Unavailable
34
BOLT(10) Substituted by 7517583
7515491
Unavailable
35
WASHER(10) Substituted by 7555832
7555851
Unavailable
36
BUSHING-RADIUS ROD,(10)
5010127
$7.99
37
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
37
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
38
ROD,RAD,LOWER,BLK
1822377-067
Unavailable
39
NUT-JAM(10)
7542711
$2.39
40
ROD END,RH Substituted by 7061011
7060156
Unavailable
41
ROD,RAD,UPPER,BLK
1822375-067
Unavailable
42
NUT JAM(10)
7542520
$2.39
43
ROD END, RH Substituted by 7061010
7060155
Unavailable
44
NUT, LOCK,(10)
7542503
$10.39
45
BRACE, PAN
5223997-067
Unavailable
46
RIVET(50)
7621452
$1.49
47
BOLT(10)
7512678
$19.99
48
SHOCK,GAS,IFS,SELECT
7041523
Unavailable
49
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
50
SPRING,COMP,IFS
7041552-067
$44.51
51
RING,SPRING PRELOAD ADJ.
5431734
$52.60
52
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
