Description

Price

-

KIT,CLUTCH UPDATE (Incl. 7-9, 12, 16, 17)

2200386

$161.89

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

BEARING, COVER,(10)

3576510

$9.59

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-RED&WHITE

7041150

$64.99

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

SPACER(10) (.050mm)

5210754

Unavailable

10

SPACER(10) (.020mm)

5210752

Unavailable

10

SPACER(10) (.032mm)

5210753

Unavailable

11

WT/BUSH.ASM,10(3) (10)

1321526

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

SLEEVE, BEARING

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

NUT FLEX LOC(10)

7541906

$3.19

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

CLUTCH,BASIC#81(DRIVE) Substituted by 1321739 (Less 5 & 11)

1321721

Unavailable

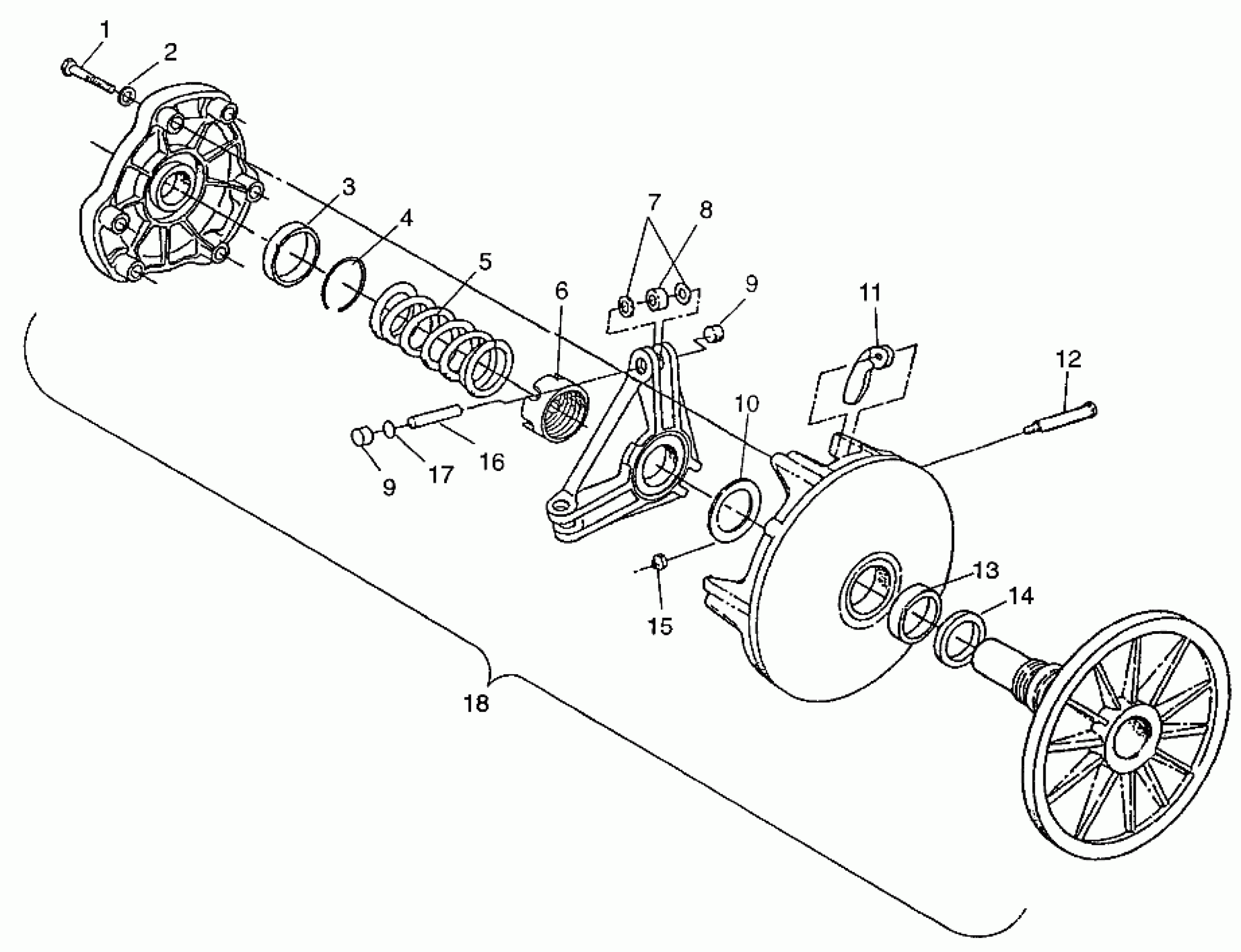

Polaris XCF - 0971643 DRIVE CLUTCH XCF 0971643 (4938613861B013) Diagram

KIT,CLUTCH UPDATE (Incl. 7-9, 12, 16, 17)

BOLT,(10)

LOCK WASHER(10)

BEARING, COVER,(10)

RING-RETAINING,COVER

SPRING-RED&WHITE

NUT-JAM

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE,(10)

BUTTON, GUIDE,(10)

SPACER(10) (.050mm)

SPACER(10) (.020mm)

SPACER(10) (.032mm)

WT/BUSH.ASM,10(3) (10)

PIN-WEIGHT,HARDENED,1/4X2.00

SLEEVE, BEARING

INSERT-MOVEABLE

NUT FLEX LOC(10)

PIN-ROLLER

Kit - Shim, Drive Clutch

CLUTCH,BASIC#81(DRIVE) Substituted by 1321739 (Less 5 & 11)
