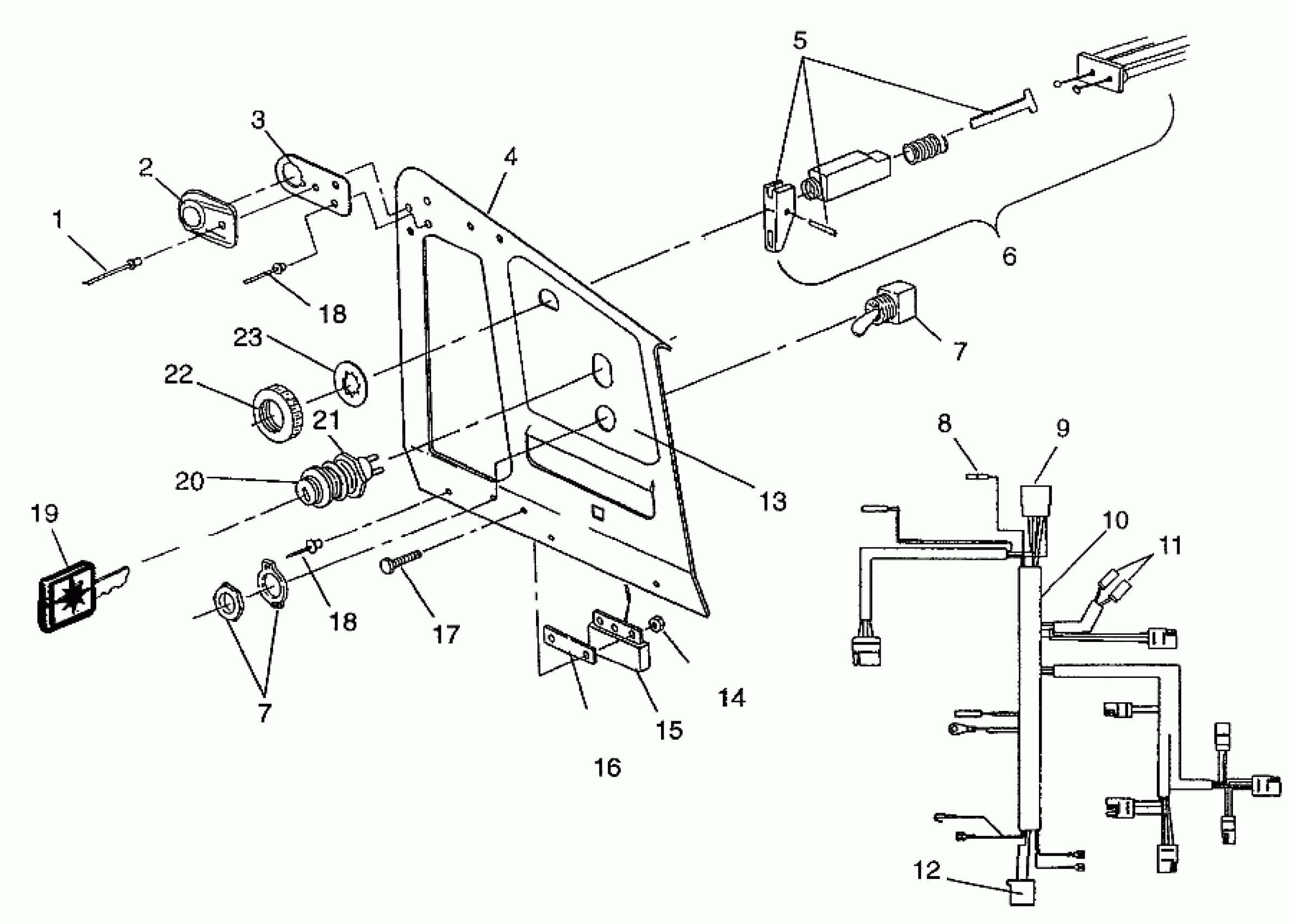

Polaris XCF - 0971643 CONSOLE XCF 0971643 (4938613861A013) Diagram
#
Description
Price
1
RIVET(50)
7621433
$1.49
2
GUIDE, RECOIL
5431385
$10.51
3
BRKT,ROPEGUIDE
5240277-067
Unavailable
4
CONSOLE,W/IGNITION,BLK,SP.
5241518-067
Unavailable
5
KIT-CHOKE CONTROL
2200188
$24.27
6
Cable, Choke Control
7080290
$105.22
7
SWITCH,H-BAR HEATER
4110066
Unavailable
7
SWITCH,H-BAR HEATER
4110066
Unavailable
8
HOUSING
4020133
Unavailable
9
Housing w/Receptacle
4020057
$3.51
10
HARNESS,MAIN WIRE
2460590
$108.06
11
Housing
4020153
$1.49
12
HOUSING
4020063
$3.19
13
DECAL,CONSOLE,VENTED
7076251
Unavailable
14
NUT(10)
7541925
$1.49
15
REGULATOR,14 VAC.LR-9
4060122
Unavailable
16
SPACER,REGULATOR
5211573
Unavailable
17
BOLT(10)
7512031
$2.23
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch bo
5410611
Unavailable
20
KIT,IGN. SWITCH (Incl. 19)
2200357
Unavailable
21
NUT, IGN.SWITCH(10)
7543101
Unavailable
22
Nut
7080229
$19.99
23
WASHER-LOCK(10)
7571610
$3.99
