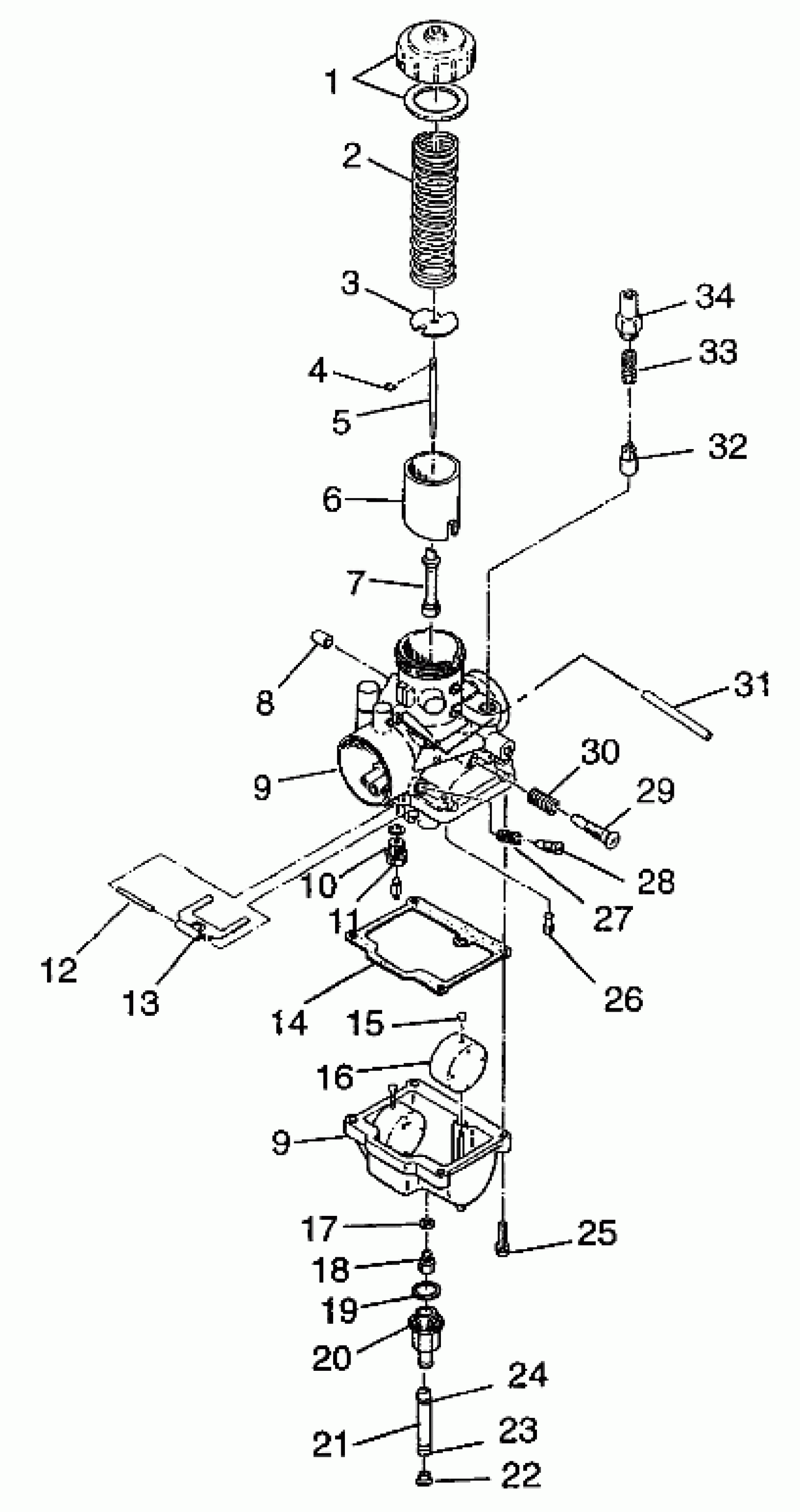

Polaris XCF - 0971643 CARBURETOR XCF 0971643 (4938613861C008) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE,(6FJ6-3) (6FJ6-3)
3130481
Unavailable
6
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
7
NEEDLE JET (166)
3130421
Unavailable
8
CAP
3130479
$14.56
9
CARBURETOR ASM. (Incl. 1-20, 25-34)
3130547
Unavailable
9
CARBURETOR ASM. (Incl. 1-20, 25-34)
3130547
Unavailable
10
PACKING(10)
3130017
$4.03
11
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
12
PIN, FLOAT
3130361
$8.89
13
ARM,FLOAT
3130018
$24.27
14
PACKING,FLOAT CHAMBER
3130020
$16.17
15
CAP,(10)
3130237
$4.03
16
FLOAT ASM.
3130430
$43.56
17
WASHER (10)
3130014
$1.59
18
JET,MAIN,HX.HD.#185(10) (#185)
3130120
$7.27
19
O RING
3130239
Unavailable
20
NIPPLE
3130573
$32.37
21
FUEL LINE, 5 FT.
8450045-153
Unavailable
22
PLUG,TRAP
5431893
$12.94
23
CLAMP,HOSE(10)
7080544
Unavailable
24
CLAMP,SPRING,(10)
7080534
$1.59
25
SCREW & WASHER(10)
3130025
$3.19
26
JET,PILOT,#35(10) (#35)
3130066
$8.89
27
SPRING,AIR ADJUST
3130012
$8.89
28
SCREW,AIR
3130011
$19.99
29
SCREW,THROTTLE STOP
3130009
$19.99
30
SPRING,THROTTLE ADJ.
3130010
$8.89
31
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
32
PLUNGER ASM, STARTER
3130328
$32.37
33
SPRING,PLUNGER
3130006
$8.89
34
HOLDER,GUIDE
3130199
$28.32
