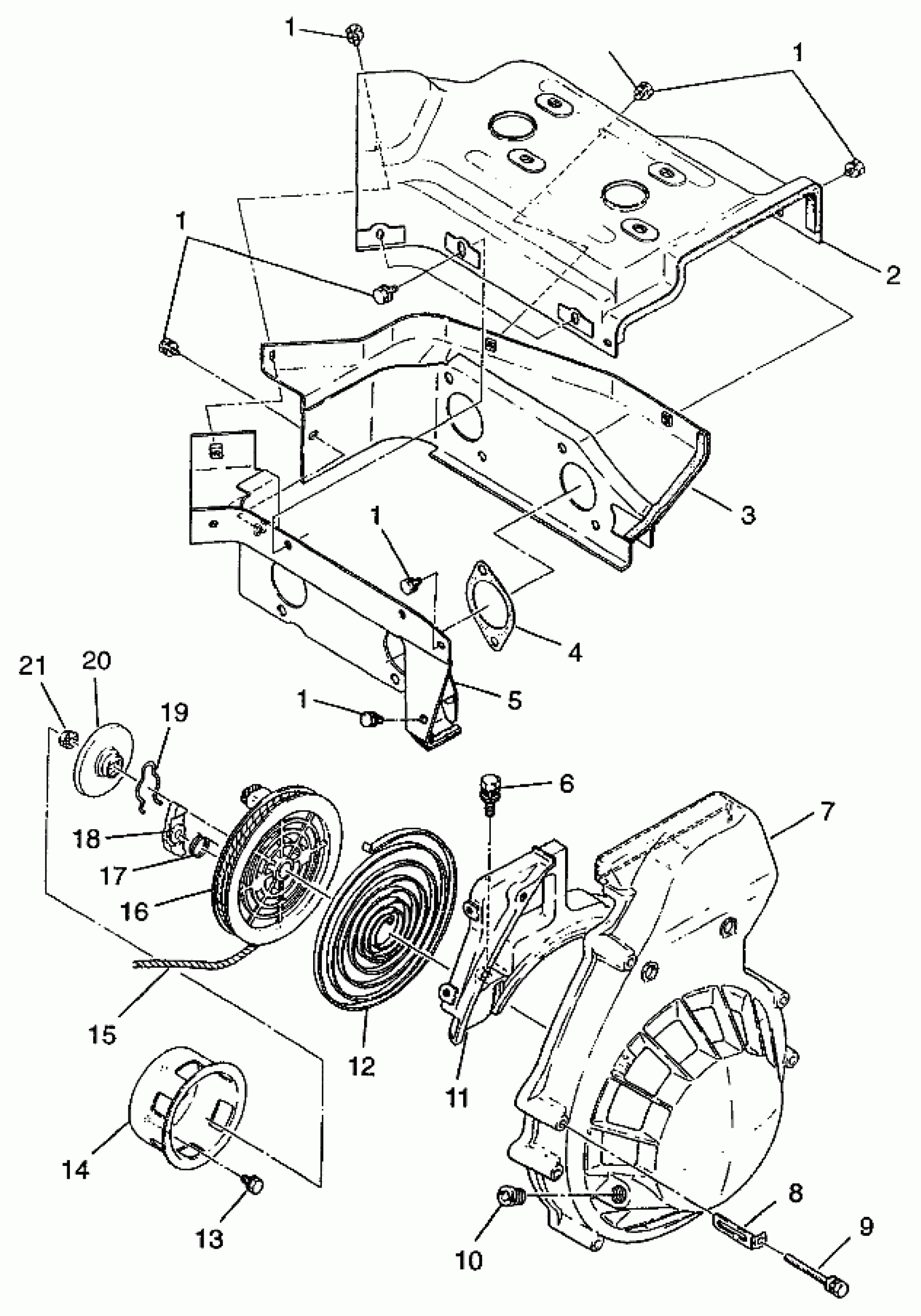

Polaris XCF - 0971643 BLOWER HOUSING and RECOIL STARTER XCF 0971643 (4938613861C007) Diagram

#

Description
Price

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

2

BAFFLE,CYL.#1

3084588

Unavailable

3

BAFFLE,CYL.#2

3085008

Unavailable

4

GASKET, INTAKE

3084027

Unavailable

5

BAFFLE,CYL.#3 (Incl. 4)

3085009

Unavailable

6

BOLT&WASHER ASM.

3084225

$3.99

7

RECOIL STARTER (Incl. 7, 10, 12, 15-18, 20, 21)

3083547

Unavailable

7

CASE, STARTER

3083548

Unavailable

8

Clamp

3083590

$3.99

9

BOLT&WASHER ASM.

3083550

Unavailable

10

GUIDE-ROPE

3083107

Unavailable

11

HOUSING,BLOWER,#2

3083697

Unavailable

12

Spring, Spiral

3083376

$179.11

13

BOLT,(10)

3081665

$3.19

14

PULLEY, STARTER

3083549

Unavailable

15

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

16

REEL, REWIND

3083377

$56.65

17

Spring, Return

3083463

$4.03

18

Ratchet

3083378

$20.22

19

Spring, Friction

3083379

$24.27

20

Plate, Friction

3083464

$28.32

21

NUT, FLANGE ,(10)

3083381

$2.99
