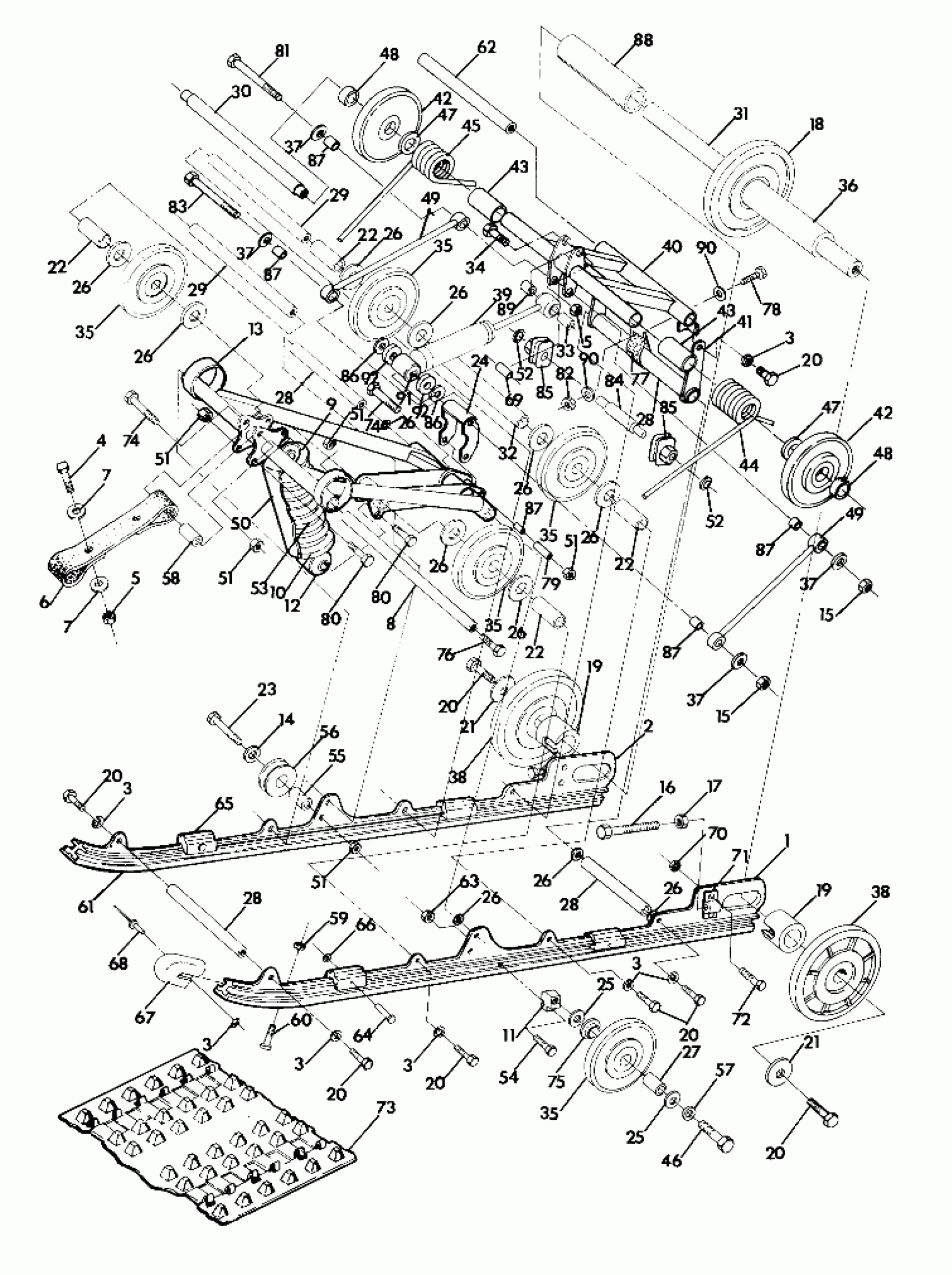

Polaris XC 400 - 0911759 SUSPENSION 400 XC (4920122012015A) Diagram
#
1
RAIL ASM, LH,SILVER (Incl. 64-66, 70-72)
1540553
Unavailable
2
RAIL ASM,RH, SILVER (Incl. 64-66, 70-72)
1540554
Unavailable
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BOLT(10)
7515307
$3.99
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
STRAP, LIMITER
5410397
Unavailable
7
WASHER(10)
7555716
$1.59
7
WASHER(10)
7555716
$1.59
8
SHAFT,MOUNTING
5010149
Unavailable
8
SHAFT,MOUNTING
5010149
Unavailable
9
RETAINER-TOP
5220225
$10.39
10
SPACER,SHOCK RETAINER(10)
5210953
$6.39
11
BRACKET,BOGIE WHEEL
5130570
$48.56
12
SHOCK,GAS,MIDDLE
7041254
Unavailable
13
ARM,FRONT TORQUE Substituted by 1540689-067
1540689
Unavailable
14
WASHER(10)
7555743
Unavailable
15
NUT FLEX LOC,(10)
7542402
$6.39
15
NUT FLEX LOC,(10)
7542402
$6.39
16
BOLT, ADJUSTER(10)
7515455
$29.99
17
NUT(10)
7542440
Unavailable
18
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
23
BOLT Substituted by 7515491
7515433
$1.59
24
ARM, SHOCK PIVOT Substituted by 1540664-067
1540664
Unavailable
25
WASHER(10)
7555804
$3.99
25
WASHER(10)
7555804
$3.99
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
27
SPACER
5332786
$7.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
30
SHAFT, MTG, REAR
5020570
Unavailable
31
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
32
TUBE, SUSPENSION
5332783
Unavailable
33
BUSHING,R.SHOCK
5333030
Unavailable
34
BOLT [No Longer Available]
7515329
Unavailable
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
36
SPACER INNER IDLER
5010169
Unavailable
37
WASHER(10) Substituted by 7555806
7555720
$0.79
37
WASHER(10) Substituted by 7555806
7555720
$0.79
37
WASHER(10) Substituted by 7555806
7555720
$0.79
37
WASHER(10) Substituted by 7555806
7555720
$0.79
38
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
38
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
39
SHOCK,GAS,REAR [No Longer Available]
7041256
Unavailable
40
ARM,REAR TORQUE Substituted by 1540678-067
1540678
Unavailable
41
ARM, REAR PIVOT Substituted by 1540677-067
1540677
Unavailable
42
WHEEL,CARRIER,ASM
1543022
$69.99
42
WHEEL,CARRIER,ASM
1543022
$69.99
43
Tube, Spring
5521234
Unavailable
43
Tube, Spring
5521234
Unavailable
44
SPRING,LH R.SUSP. Substituted by 7041248-067
7041248
Unavailable
45
SPRING,RH R.SUSP. Substituted by 7041249-067
7041249
Unavailable
46
BOLT(10)
7512659
$7.99
47
WASHER-WAVE(10)
7571605
$6.39
47
WASHER-WAVE(10)
7571605
$6.39
48
SCREW-SET(10)
7512257
$3.99
48
COLLAR-BRG. LOCK
5010155
Unavailable
48
SCREW-SET(10)
7512257
$3.99
48
COLLAR-BRG. LOCK
5010155
Unavailable
49
ROD, SUSPENSION Substituted by 1540662-067
1540662
Unavailable
49
ROD, SUSPENSION Substituted by 1540662-067
1540662
Unavailable
50
SHIELD-SPRING
5430671
$24.27
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
52
CLIP-PUSH ON
7080394
$2.39
52
CLIP-PUSH ON
7080394
$2.39
53
DESC NOT_AVAILABLE
7041253
Unavailable
54
BOLT(10)
7512404
$3.99
55
Spacer
5332787
Unavailable
56
ROLLER-SPRING
5430540
Unavailable
57
LOCK WASHER(10)
7553201
$3.99
58
BUSHING,SUSPENSION
5010212
Unavailable
59
NUT-LOCK(10)
7542122
$1.49
60
SCREW(10)
7512227
$3.19
61
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
62
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
63
NUT LOCK(10)
7542403
$3.99
64
RIVET,(50)
7661609
Unavailable
65
BUMPER-SUSPENSION Substituted by 5810554
5410315
Unavailable
66
PALNUT(10)
7670009
$2.39
67
COVER-RAIL TIP
5430627
$32.37
68
RIVET(50)
7621435
$1.49
69
SPACER,R.PIVOT ARM
5333026
$3.03
71
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
72
RIVET,(50)
7621501
$2.39
73
TRACK, (400XC)
5410616
Unavailable
74
BOLT(10)
7515438
$4.79
74
BOLT(10)
7515438
$4.79
75
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
76
BOLT(10)
7515415
$1.49
77
STRAP, LIMITER
5410587
Unavailable
78
BOLT(10)
7512247
$2.39
79
Spacer
5333028
$1.59
81
BOLT(10)
7515459
$5.59
82
NUT, LOCK(10)
7542103
$5.59
83
BOLT(10)
7515496
$9.59
84
ROD
5130762
Unavailable
85
ROLLER, SPRING ADJ.
5431168
Unavailable
85
ROLLER, SPRING ADJ.
5431168
Unavailable
86
SPACER, R.SHOCK(10)
5211224
Unavailable
86
SPACER, R.SHOCK(10)
5211224
Unavailable
87
BUSHING,PIVOT TUBE
5020561
$1.59
87
BUSHING,PIVOT TUBE
5020561
$1.59
87
BUSHING,PIVOT TUBE
5020561
$1.59
87
BUSHING,PIVOT TUBE
5020561
$1.59
87
BUSHING,PIVOT TUBE
5020561
$1.59
89
BUSHING
5430537
$3.99
90
WASHER(10)
7558221
$2.39
90
WASHER(10)
7558221
$2.39
91
BUSHING
5222616
Unavailable
92
CLIP,METAL(YOKOHAMA),(10)
5222109
$2.54
92
BUSHING
5410617
Unavailable
92
CLIP,METAL(YOKOHAMA),(10)
5222109
$2.54
92
BUSHING
5410617
Unavailable
