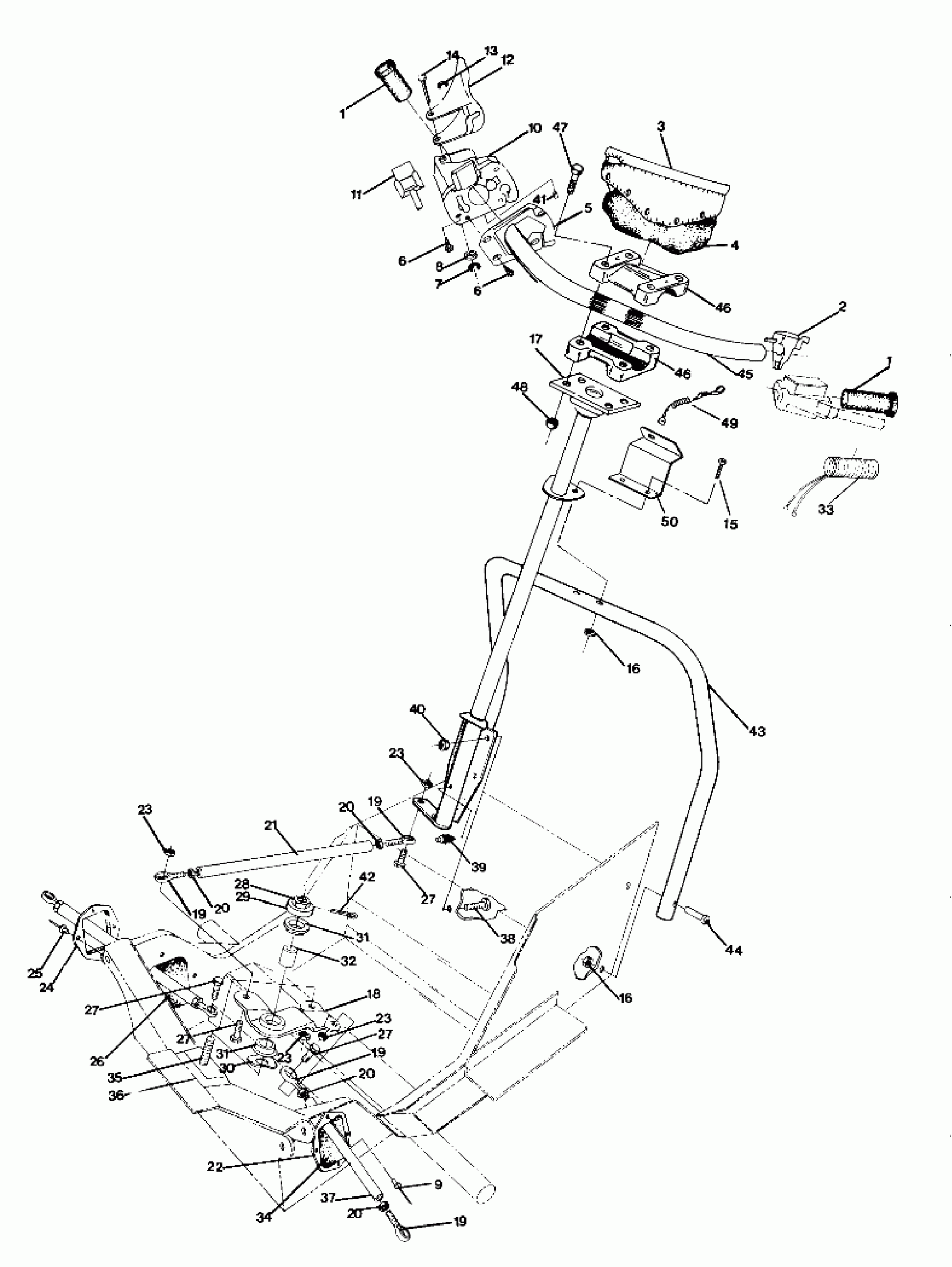

Polaris XC 400 - 0911759 STEERING 400 XC (4920122012009A) Diagram
#
1
GRIP,H'BAR,RED Substituted by 5410272-067
5410272-093
$24.27
1
GRIP,H'BAR,RED Substituted by 5410272-067
5410272-093
$24.27
2
Switch, Dimmer
4110107
$60.70
3
PAD ASM,H'BAR(400) [No Longer Available]
2690050
Unavailable
4
PAD,HANDLEBAR
5810448
Unavailable
4
PAD,HANDLEBAR
5810448
Unavailable
5
BLOCK-ADAPTER
5430604
$13.75
6
SCREW-SEMS(10)
7511848
$3.99
6
SCREW-SEMS(10)
7511848
$3.99
7
RING-RETAINING EXTERNAL
7710401
$3.99
8
WASHER(10)
7555730
$3.99
9
POP RIVET(50)
7621303
Unavailable
10
BLOCK,THROTTLE/BRAKE Substituted by 5431592
5431265
$49.99
11
SWITCH,AUX.SHUT-OFF
4110106
$94.99
12
LEVER ASM,W/WARMER
2010094
Unavailable
14
PIN-RETAINING .186X1.780-AL
7661624
$12.79
15
SCREW(10)
7512183
Unavailable
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
17
POST,STEERING
1823143-067
Unavailable
18
ARM, STRG.,CTR. Substituted by 1822093-067
1822093
Unavailable
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
21
ROD-DRAG LINK
5332712
Unavailable
22
PLATE,LH,BOOTSEAL Substituted by 5210959-067
5210959
Unavailable
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
24
PLATE,RH,BOOT SEAL
5210904
Unavailable
25
RIVET(50)
7621301
$3.99
26
BOOT-TIE ROD
5410328
Unavailable
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
28
NUT(10)
7542712
$9.59
29
WASHER(10)
7555721
$1.49
30
WASHER,WAVE(10)
7555735
$3.99
31
BUSHING
3563907
$3.99
31
BUSHING
3563907
$3.99
32
BUSHING-SPACER
5010161
Unavailable
33
GRIP-HEATER ASM,HI/LOW
2460311
$56.65
34
BOOT , LH
5410388
Unavailable
35
BOLT(10)
7512658
Unavailable
36
BLOCK-CTR.STEERING
5130534
Unavailable
37
ROD,TIE,BLACK
5332713-067
Unavailable
38
BOLT(10) Substituted by 7512377
7512394
Unavailable
39
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
SCREW(10)
7512465
$3.99
42
PIN COTTER(10)
7661203
$1.49
43
HOOP, STEERING Substituted by 1011513-067
1011513
Unavailable
45
BLOCK,HANDLEBAR
5630187-067
$44.99
46
BOLT(10)
7512254
Unavailable
46
BOLT(10)
7512254
Unavailable
48
THROTTLE CONTROL ASM. [No Longer Available]
2010096
Unavailable
49
SWITCH,TETHER
2870668
$84.99
50
MOUNT,TETHER SWITCH Substituted by 5222614-067
5222614
Unavailable
