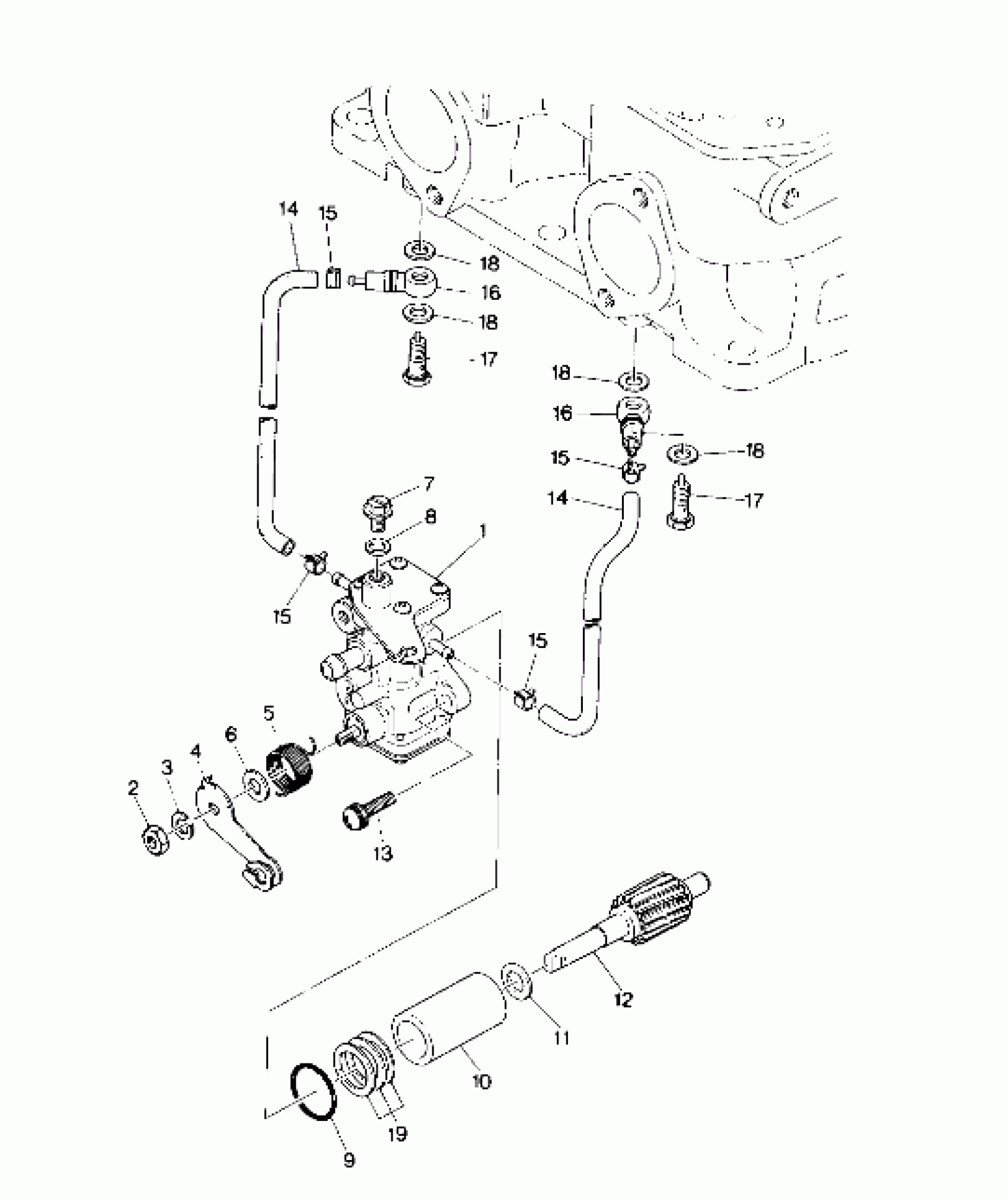

Polaris XC 400 - 0911759 OIL PUMP 400 XC (4920122012033A) Diagram
#
Description
Price
1
PUMP, OIL (Incl. 2-9)
3083964
Unavailable
2
NUT(10)
3083120
$3.19
3
WASHER-SPRING(10)
3083121
$299.99
4
LEVER, CONTROL
3084321
Unavailable
5
SPRING-RETURN
3083123
Unavailable
6
COLLAR, CAMSHAFT(10) Substituted by 3083445
3083124
Unavailable
7
SCREW-AIR VENT
3083125
Unavailable
8
PACKING(10)
3083126
$4.03
9
O RING
3083127
Unavailable
10
BUSHING(OIL PUMP)
3083353
$31.99
11
SPACER
3083130
$1.59
12
GEAR,SMALL,OIL PUMP
3083131
$89.99
13
SCREW&WASHER,(10)
3083783
$2.39
14
PIPE,RUBBER(L=145) Substituted by 3083534
3083163
Unavailable
14
PIPE,RUBBER(L=145) Substituted by 3083534
3083163
Unavailable
15
CLAMP-HOSE,(10)
3083141
$1.49
15
CLAMP-HOSE,(10)
3083141
$1.49
15
CLAMP-HOSE,(10)
3083141
$1.49
15
CLAMP-HOSE,(10)
3083141
$1.49
16
VALVE, CHECK
3083894
Unavailable
16
VALVE, CHECK
3083894
Unavailable
17
BOLT-BANJO
3083137
Unavailable
17
BOLT-BANJO
3083137
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
19
SPACER #3
3083673
Unavailable
19
SPACER #2
3083672
Unavailable
19
SPACER #1
3083671
Unavailable
