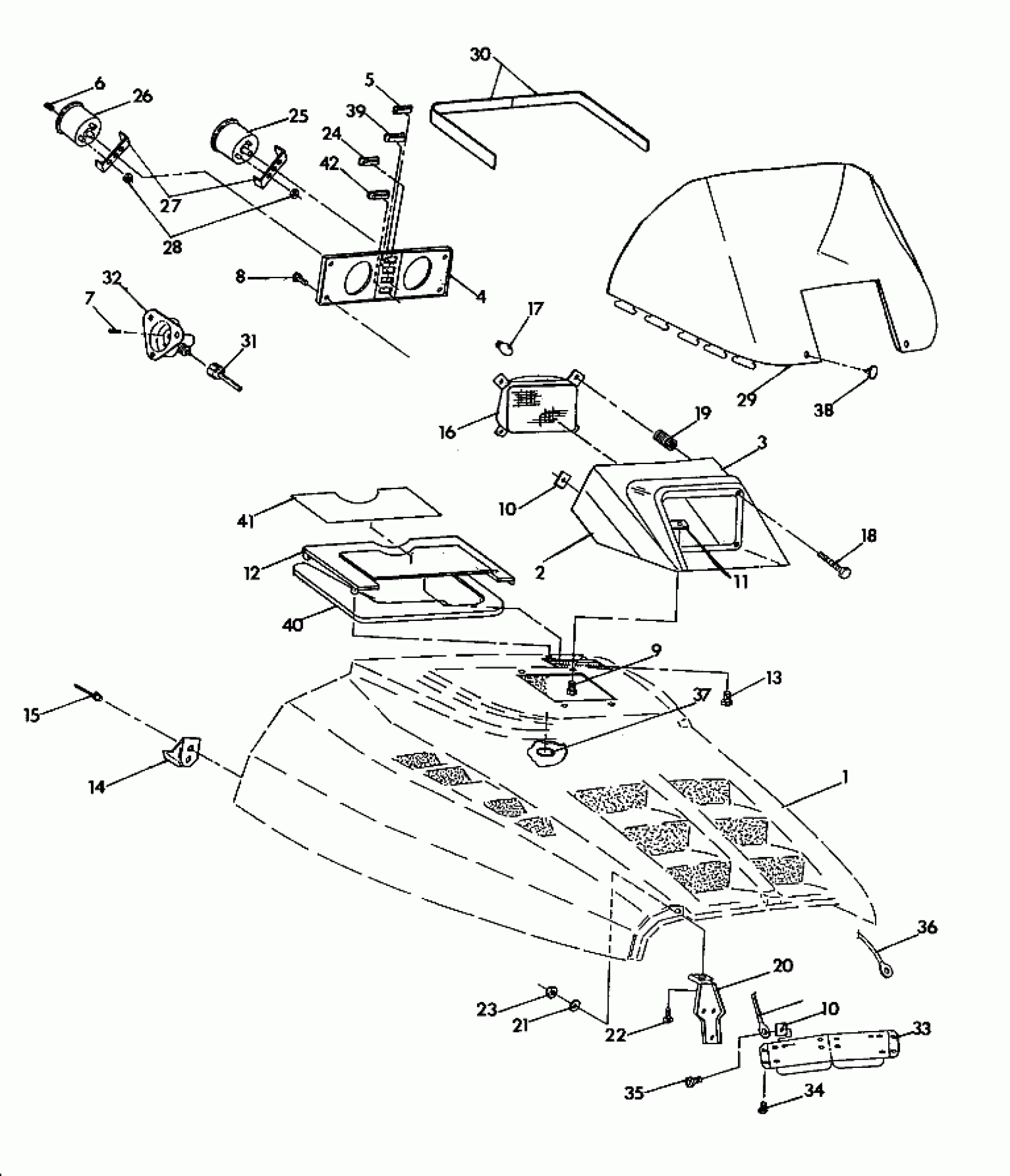

Polaris XC 400 - 0911759 HOOD 400 XC (4920122012003A) Diagram
#
1
HOOD,'400 INDY' Substituted by 2631574-136
5431194-136
Unavailable
2
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
3
HSG,INST,TOP,BLK
5430923-070
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
KNOB,TRIP ODOMETER
3280103
$3.83
7
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
8
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
9
SCREW, SEMS(10)
7512283
$3.99
10
NUT, SPEED(10)
7670056
Unavailable
10
NUT, SPEED(10)
7670056
Unavailable
11
NUT, SPEED(10)
7670057
$1.49
12
DESC NOT_AVAILABLE
5431195
Unavailable
13
SCREW(10)
7511840
Unavailable
14
CUP, HOOD LATCH,(10)
5430733
$4.84
15
RIVET(50)
7621334
$1.49
16
HEADLIGHT ASM.
4032040
Unavailable
17
BULB,QUARTZ.H/L,INDY
2870448
$24.99
17
BULB, H/L
4030028
$29.99
18
SCREW, ADJ.(10)
4032003
Unavailable
19
SPRING-ADJ
4032002
Unavailable
20
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
21
WASHER,WROUGHT(10)
7558302
$1.59
22
BOLT-CARRIAGE(10)
7512263
$3.99
23
NUT-LOCK(10)
7542122
$1.49
24
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
25
SPEEDOMETER
3280092
$111.99
26
TACHOMETER
3280093
Unavailable
27
BRACKET
3280098
Unavailable
28
NUT
3280063
Unavailable
29
WINDSHIELD,LO(90-96)STD
2870785
Unavailable
30
PAD,W/S,LH,BLACK
5810437
Unavailable
30
PAD,W/S,RH,BLACK
5810438
$1.67
31
CABLE,SPEEDO.
3280094
$60.70
32
ANGLEDRIVE Substituted by 3280116
3280075
Unavailable
33
PLATE,RE-INF.,(HD.)
5222105
$49.51
34
SCREW(10)
7511861
Unavailable
35
SCREW(10)
7511989
Unavailable
36
CABLE,HD.RETAINER
7080360
$24.27
37
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
38
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
39
PLUG,INDIC.HOLE
5430967
$5.65
40
SEAL, INTAKE Substituted by 5810597
5810503
Unavailable
41
DECAL,DASH WARNING [No Longer Available]
7072491
Unavailable
42
INDICATOR,'ACC'WARN.
4040014
Unavailable
42
KIT,DECAL(400XC HOOD) [No Longer Available]
2200375
Unavailable
