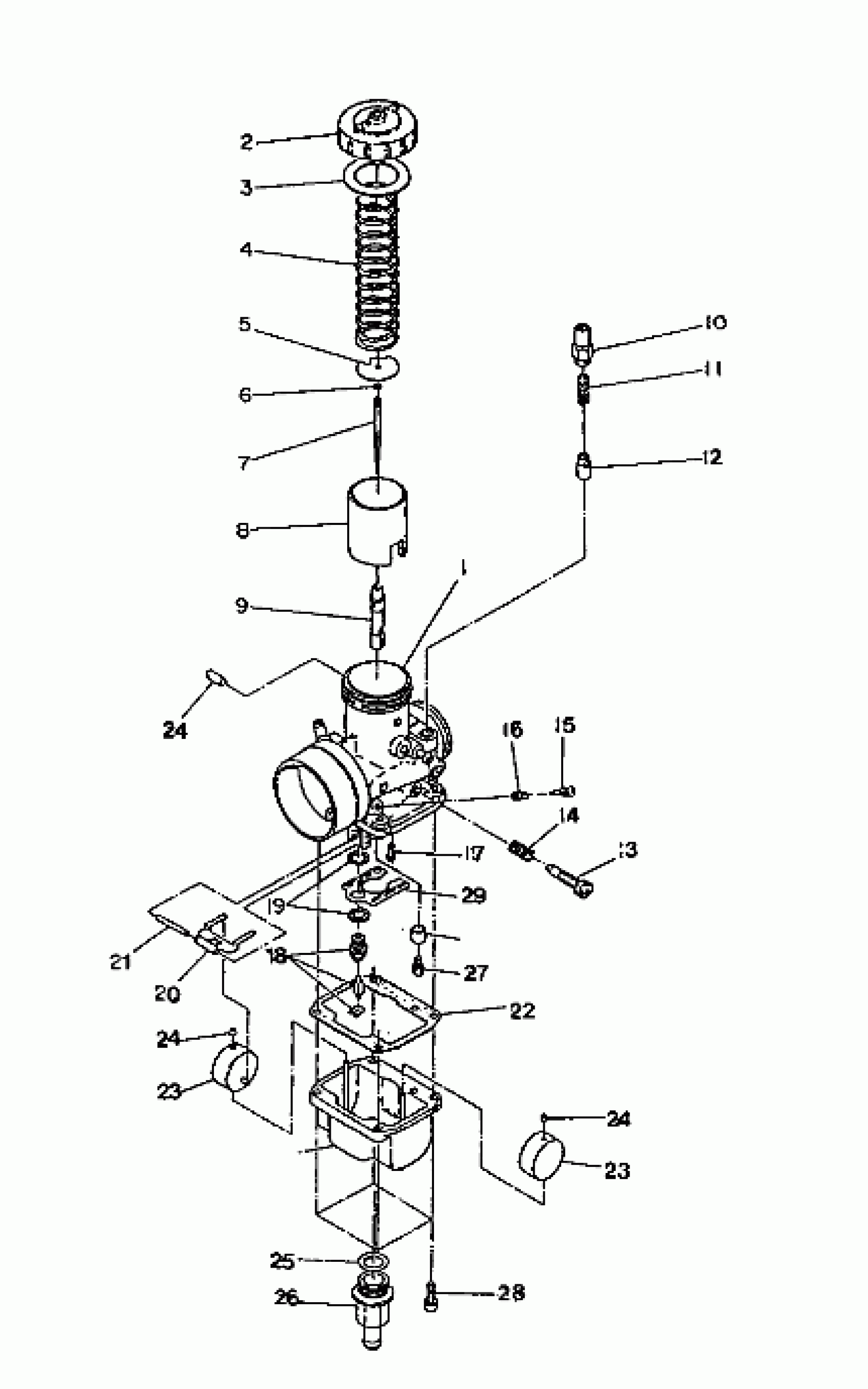

Polaris XC 400 - 0911759 CARBURETOR 400 XC (4920122012035A) Diagram
#
Description
Price
1
CARBURETOR (Incl. 2-32)
3130458
Unavailable
2
TOP ASM (Incl. 3)
3130184
$32.37
3
GASKET
-------
Unavailable
4
SPRING,THROTTLE Substituted by 3130444
3130334
Unavailable
5
PLATE, THROTTLE
3130054
$6.46
6
E RING,(10) Substituted by 3130508
3130230
Unavailable
7
NEEDLE,JET,(6F9-3)
3130378
Unavailable
8
VALVE,THROTTLE,(3.0)
3130352
Unavailable
9
JET,NEEDLE,Q-2
3130165
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW, AIR Substituted by 3130011
3130451
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET, IDLER H30 Substituted by 3130065
3130331
Unavailable
18
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
19
WASHER(10) Substituted by 3130047
3081422
Unavailable
20
ARM,FLOAT
3130048
Unavailable
21
PIN, FLOAT Substituted by 3130361
3130235
$8.89
22
GASKET,FLOAT CHAMBER
3130236
$12.13
23
FLOAT ASM
3130021
$40.46
23
FLOAT ASM
3130021
$40.46
24
CAP,(10) Substituted by 3130237
3130022
Unavailable
24
CAP,(10) Substituted by 3130237
3130022
Unavailable
24
CAP,(10) Substituted by 3130237
3130022
Unavailable
25
O RING Substituted by 3130239
3082472
Unavailable
26
NIPPLE Substituted by 5020476
3130387
$10.56
27
JET,MAIN,HX.HD#270(10)
3130130
$7.27
28
SCREW & WASHER(10)
3130025
$3.19
29
PLATE
3130243
Unavailable
