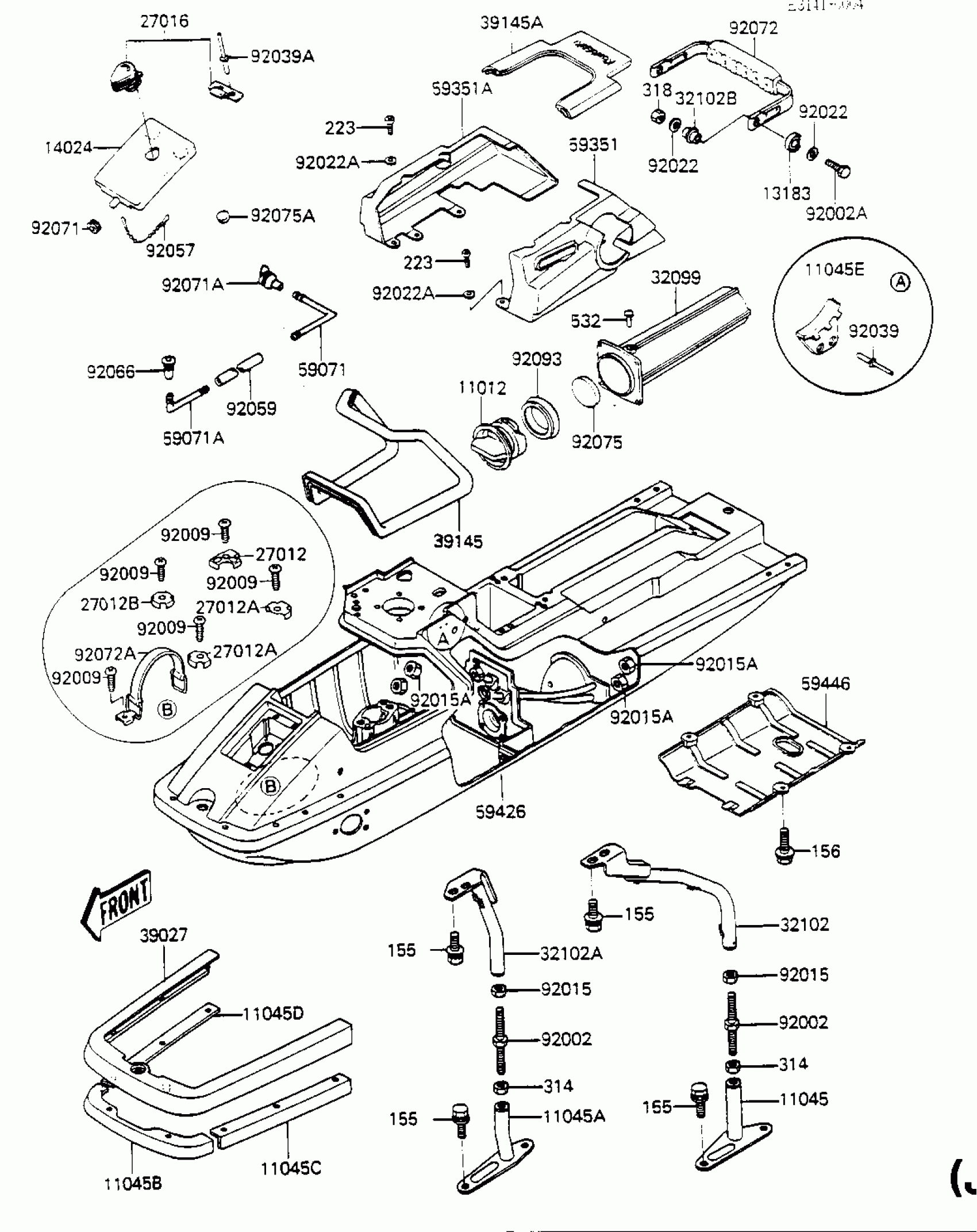

Kawasaki X2 HULL (JF650-A2) Diagram
#
11012
CAP
11012-3708
$9.10
11045
BRACKET,DECK,LH
11044-3710
Unavailable
11045A
BRACKET,DECK,RH
11044-3711
Unavailable
11045B
BRACKET,BUMPER,CNT
11046-3818
Unavailable
11045C
BRACKET,BUMPER,LH
11045-3711
Unavailable
11045D
BRACKET,BUMPER,RH
11045-3712
Unavailable
11045E
BRACKET
11045-3755
Unavailable
13183
PLATE
13169-3714
Unavailable
14024
COVER,TANK CAP,JET WHITE
14024-3731-8C
$23.12
27012
HOOK
27012-3705
Unavailable
27012A
HOOK
27012-501
Unavailable
27012B
HOOK
27012-502
Unavailable
27016
LOCK-ASSY,TANK CAP COVER
27016-3705
Unavailable
32099
CASE,FIRE EXT.
32099-3705
Unavailable
32102
PIPE,DECK,LH
32033-3718
$148.59
32102A
PIPE,DECK,RH
32033-3719
Unavailable
32102B
PIPE
32102-3704
Unavailable
39027
BUMPER-FRONT
39027-3710
$254.01
39145
TRIM-SEAL
39145-3701
Unavailable
39145A
TRIM-SEAL,DECK
39145-3702
Unavailable
59071
JOINT
59071-3706
$9.32
59071A
JOINT
59071-3714
Unavailable
59351
DECK,LH,JET WHITE
59351-3708-8C
Unavailable
59351A
DECK,RH,JET WHITE
59351-3709-8C
Unavailable
59426
HULL-COMP,JET WHITE
59426-5512-8C
$1,490.76
59446
COVER-JET PUMP
59446-3703
Unavailable
92002
BOLT,10MM
92002-3731
Unavailable
92002A
BOLT,8X30
92002-3742
Unavailable
92009
SCREW,TAPPING
92011-561
Unavailable
92015
NUT,10MM
92015-3737
$6.58
92015A
NUT,20MM
92015-3738
$7.31
92022
WASHER,8.5X19X1.2
92022-3730
$4.31
92022A
WASHER
92022-567
$2.67
92039
RIVET
92039-3002
$5.82
92039A
RIVET
92039-3714
$0.95
92057
CHAIN,COVER,L=250
92057-3701
Unavailable
92059
TUBE,5.8X10.8X220
92059-3765
$9.11
92066
PLUG
92066-3706
$5.14
92071
GROMMET
92071-3733
$4.14
92071A
GROMMET
92071-3736
Unavailable
92072
BAND,TANDEM
92072-3711
$135.72
92072A
BAND,L=318
92072-3723
Unavailable
92075
DAMPER
92075-3719
$9.40
92075A
DAMPER
92075-3760
Unavailable
92093
SEAL,OSR70X82X7.5
92093-3704
$15.74
155
BOLT-WSP-SMALL,8X16
155R0816
$5.35
156
BOLT-WP,6X22
156R0622
$4.09
223
SCREW-PAN-WS-CROS,6X20
223R0620
$3.35
314
NUT-HEX-FINE,10MM
314R1000
$2.02
318
NUT-HEX-SMALL
318R0800
$4.18
532
RIVET-FLAT
532R0508
$1.78
