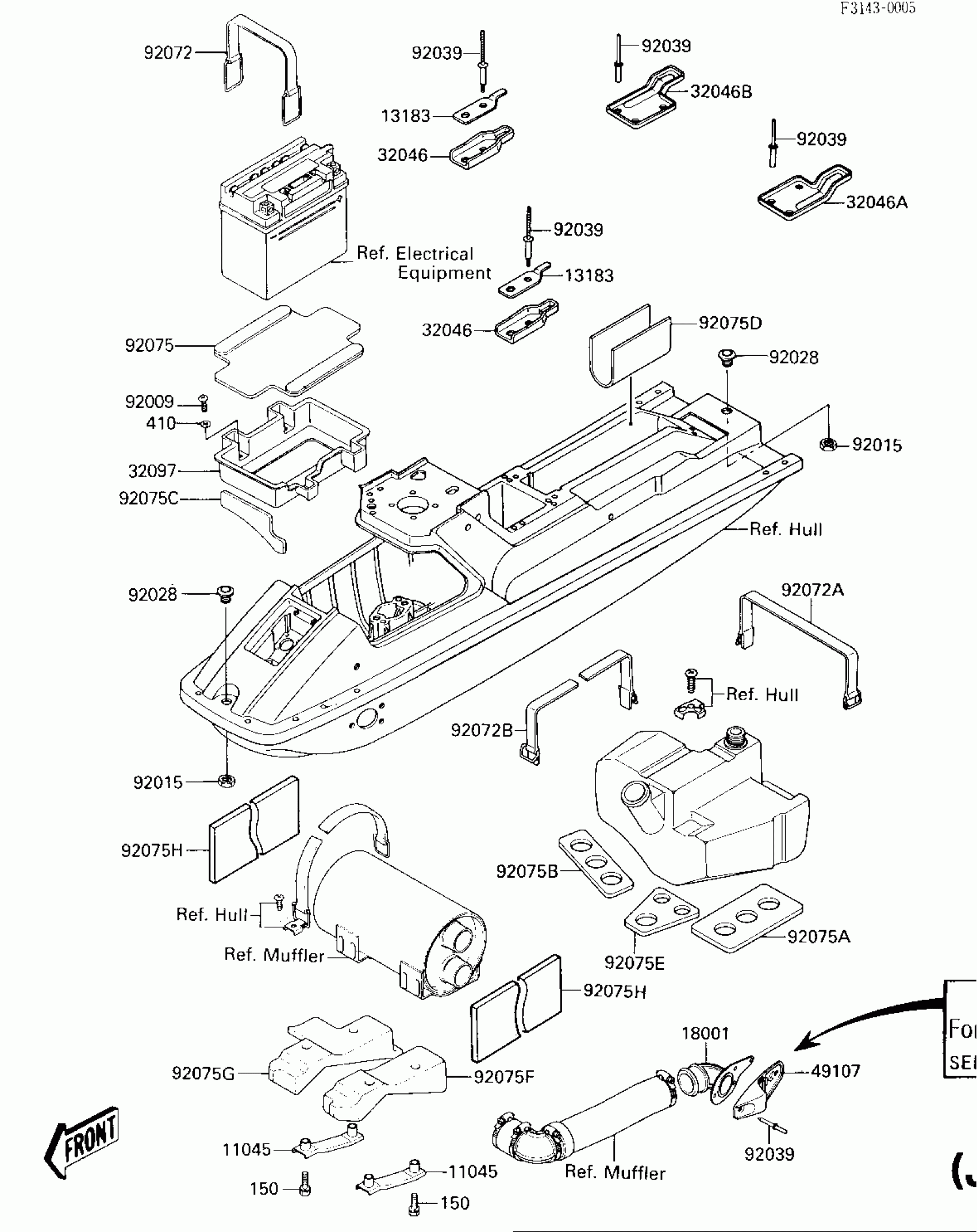

Kawasaki X2 HULL FITTINGS (JF650-A2) Diagram
#
Description
Price
11045
BRACKET,WATER MUFFLER
11045-3763
Unavailable
13183
PLATE,SEAT,FR
13183-3721
Unavailable
18001
MUFFLER,TAIL
18001-3719
$79.51
32046
BRACKET-SEAT,FR
32046-3704
Unavailable
32046A
BRACKET-SEAT,CNT,LH
32046-3705
Unavailable
32046B
BRACKET-SEAT,CNT,RH
32046-3706
Unavailable
32097
CASE-BATTERY
32097-3702
Unavailable
49107
COVER-EXHAUST PIPE
49107-3703
$59.07
92009
SCREW,TAPPING
92011-561
Unavailable
92015
NUT,20MM
92015-3721
Unavailable
92028
BUSHING,L=18
92028-3724
Unavailable
92039
RIVET
92039-3002
$5.82
92072
BAND,BATTERY,L=366
92072-3706
$40.40
92072A
BAND,L=544
92072-3709
Unavailable
92072B
BAND,L=479
92072-3712
$34.31
92075
DAMPER,BATTERY
92075-3714
$16.74
92075A
DAMPER,FUEL TANK,LH
92075-3727
$35.45
92075B
DAMPER,FUEL TANK,RH
92075-3729
Unavailable
92075C
DAMPER,FUEL TANK
92075-3738
Unavailable
92075D
DAMPER,FIRE EXTINGUISHER
92075-3750
$18.98
92075E
DAMPER,FUEL TANK
92075-3751
Unavailable
92075F
DAMPER,WATER MUFFLER,LH
92075-3761
$184.18
92075G
DAMPER,WATER MUFFLER,RH
92075-3762
$194.05
92075H
DAMPER,MUFFLER
92075-522
Unavailable
150
BOLT-WS,6X22
150R0622
$4.67
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
