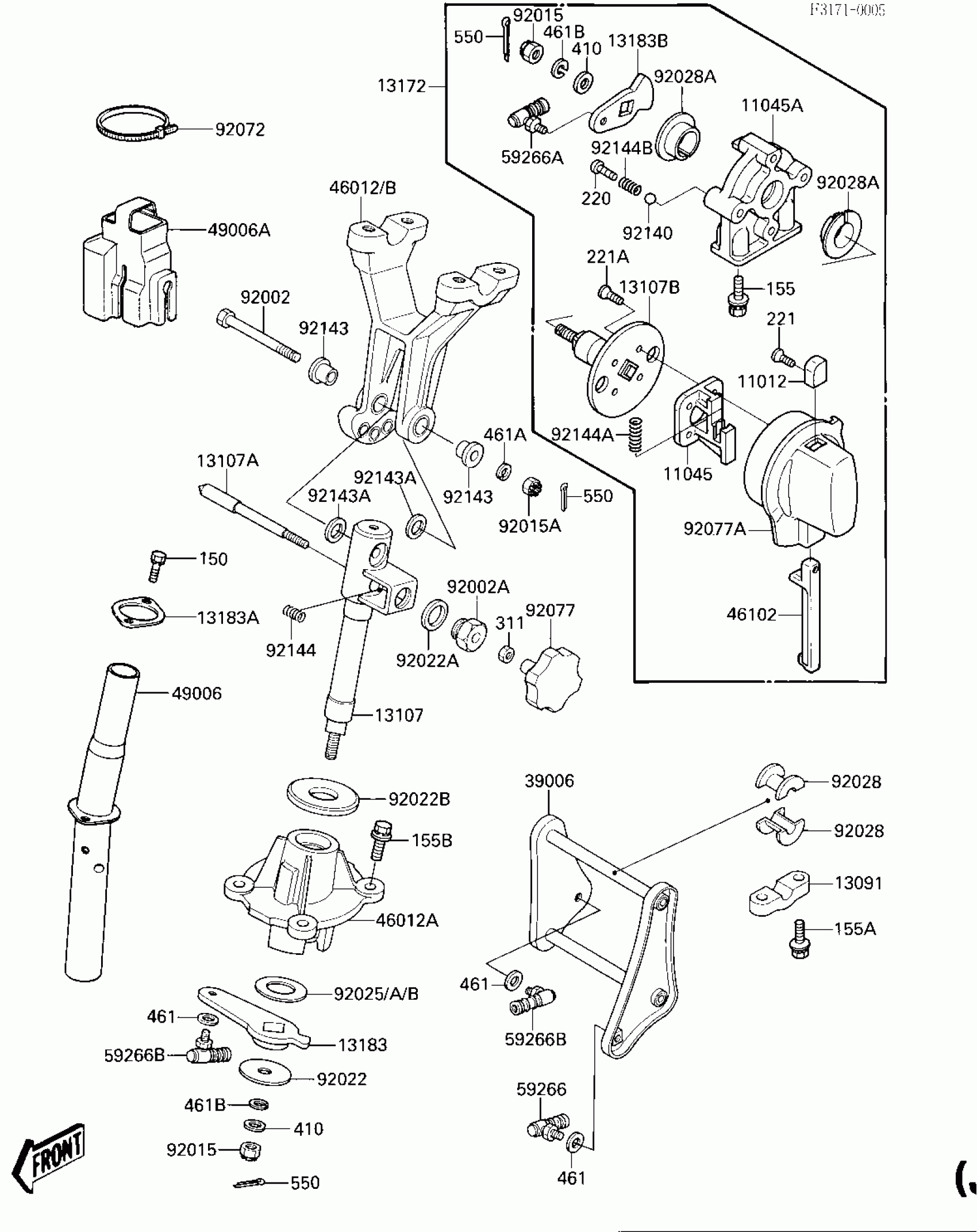

Kawasaki X2 HANDLE POLE (JF650-A2) Diagram
#
11012
CAP,TILT NOZZLE
11012-3716
Unavailable
11045
BRACKET,TILT KNOB
11045-3753
Unavailable
11045A
BRACKET
11045-3754
Unavailable
13091
HOLDER,STEERING ARM
13091-3708
Unavailable
13107
SHAFT,STEERING
13107-5002
Unavailable
13107A
SHAFT,STEERING ADJUST
13107-3706
Unavailable
13107B
SHAFT,TILT NOZZLE
13107-3711
Unavailable
13172
SHAFT-ASSY-CHANGE
13172-3701
Unavailable
13183
PLATE,STEERING
13169-3710
Unavailable
13183A
PLATE,T=2MM
13169-3712
Unavailable
13183B
PLATE
13183-3725
Unavailable
39006
ARM-STRG
39006-3701
Unavailable
46012
HOLDER-HANDLE,H=75MM
46012-3702
$241.67
46012A
HOLDER-HANDLE
46012-3703
$121.95
46012B
HOLDER-HANDLE,H=115MM
46012-3709
$193.63
46102
ROD,TILT NOZZLE KNOB
46102-3708
Unavailable
49006
BOOT,CABLE&HARNESS
49006-3705
Unavailable
49006A
BOOT,HANDLE HOLDER
49006-3707
Unavailable
59266
JOINT-BALL
59266-3707
$66.16
59266A
JOINT-BALL
59266-3704
$44.11
59266B
JOINT-BALL
59266-3705
$49.07
92002
BOLT,8X73.5
92002-3733
Unavailable
92002A
BOLT,16X10
92002-3734
$26.49
92015
NUT,CASTLE,10MM
92015-3718
Unavailable
92015A
NUT,CASTLE,8MM
92015-3719
Unavailable
92022
WASHER,10.5X40X4
92022-3724
Unavailable
92022A
WASHER,16.5X26X4
92022-3727
Unavailable
92022B
WASHER
92022-571
$36.16
92025
SHIM,21X40X0.3
92025-3712
Unavailable
92025A
SHIM,21X40X0.5
92025-3713
Unavailable
92025B
SHIM,21X40X1.0
92025-3714
Unavailable
92028
BUSHING
92028-3715
Unavailable
92028A
BUSHING
92028-3722
Unavailable
92072
BAND,L=292.1
92072-3509
Unavailable
92077
KNOB
92077-3713
Unavailable
92077A
KNOB,TILT NOZZLE
92077-3711
$80.00
92140
BALL,6.35MM
92140-3703
Unavailable
92143
COLLAR,L=18
92143-3701
Unavailable
92143A
COLLAR,14.2X20X3.8
92143-3703
Unavailable
92144
SPRING
92081-3707
$2.29
92144A
SPRING
92144-3701
$4.95
92144B
SPRING
92144-3708
Unavailable
150
BOLT-WS,5X20
150R0520
$3.42
155
BOLT-WSP-SMALL,8X25
155R0825
$5.77
155A
BOLT-WSP-SMALL,8X30
155R0830
$6.57
155B
BOLT-WSP-SMALL,8X35
155R0835
$8.19
220
SCREW-PAN-CROS,8X10
220R0810
$3.02
221
SCREW-CSK-CROS,3X8
221R0308
$1.51
221A
SCREW-CSK-CROS,5X16
221R0516
$2.78
311
NUT-HEX,6MM
311R0600
$0.70
410
W-PLAIN-S,10MM
410S1000
$3.12
461
WASHER-SPRING,6MM
461S0600
$1.07
461A
WASHER SPRING 8MM
461S0800
$0.65
461B
WASHER-SPRING,10MM
461S1000
$1.03
550
PIN-COTTER
550S2020
$2.76
