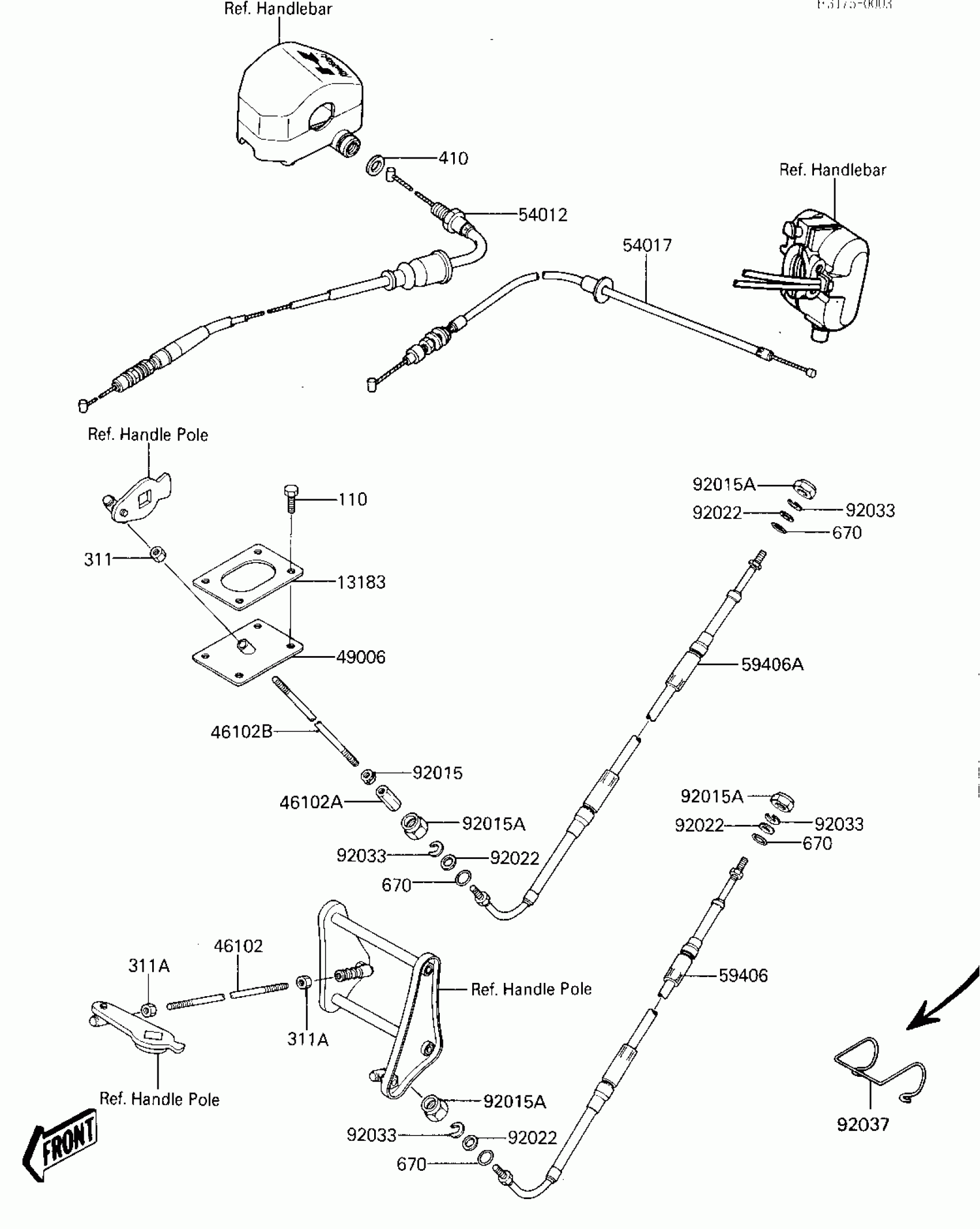

Kawasaki X2 CABLES (JF650-A2) Diagram

Description

Price

13183

PLATE

13169-3713

Unavailable

46102

ROD,STEERING,6X190

46102-3704

Unavailable

46102A

ROD,L=40

46102-3706

Unavailable

46102B

ROD,5X125

46102-3707

Unavailable

49006

BOOT

49006-3706

Unavailable

54012

CABLE-THROTTLE

54012-3704

Unavailable

54017

CABLE-STARTER

54017-3702

Unavailable

59406

CABLE-STRG

59406-3723

Unavailable

59406A

CABLE-STRG,UP&DOWN

59406-3704

$206.31

92015

NUT,5MM

92015-3754

Unavailable

92015A

NUT,20MM

92015-526

$29.72

92022

WASHER

92022-535

$7.34

92033

RING-SNAP

92036-501

Unavailable

110

BOLT,5X16

110R0516

$2.83

311

NUT-HEX,5MM

311R0500

$1.75

311A

NUT-HEX,6MM

311R0600

$0.70

410

W-PLAIN-S,10MM

410S1000

$3.12

670

O RING,11MM

670B2011

$1.28
