OIL TANK / AIR BOX WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C004)

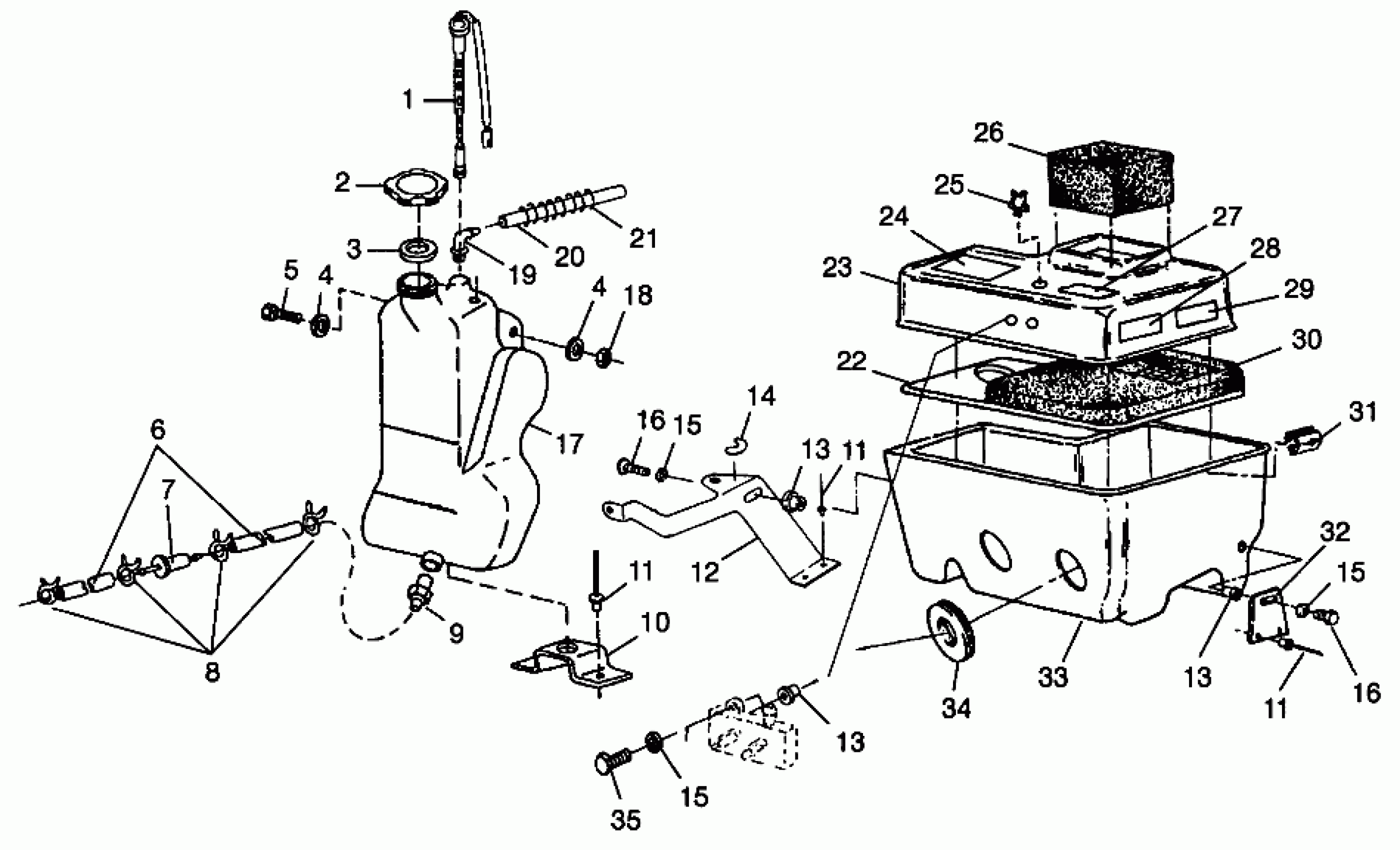

Polaris WIDETRAK LX - 0982065 OIL TANK / AIR BOX WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C004) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512103
$3.19
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
9
FITTING, OUTLET
7052042
$8.99
10
BRKT,OILTANK,COINED
5241334
$9.70
11
RIVET-3/16-.090-.290
7661637
$1.49
11
RIVET-3/16-.090-.290
7661637
$1.49
11
RIVET-3/16-.090-.290
7661637
$1.49
12
BRKT,SIL./REM.FILLER
5241792-067
$24.27
13
NUT-WELL(10)
7541923
$5.59
13
NUT-WELL(10)
7541923
$5.59
13
NUT-WELL(10)
7541923
$5.59
14
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
15
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
15
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
15
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
16
SCREW(10)
7512279
$1.49
16
SCREW(10)
7512279
$1.49
17
TANK, OIL
5430997
Unavailable
18
NUT-LOCK(10)
7542122
$1.49
19
FITTING,90 DEG,1/8,(10)
7052095
$4.79
20
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
21
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
22
PLATE,AIR SILENCER
5850075
$24.27
23
COVER,SILENCER,DRILLED(ABS)
5432244
Unavailable
24
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
25
CLIP, PLASTIC(10)
4020139
$4.79
26
FOAM, INTAKE
5810470
Unavailable
27
DECAL,CAUTION,AIRBOX
7075351
Unavailable
28
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
29
DECAL, GREASING [No Longer Available]
7073426
$7.27
30
BAFFLE ASM. (Incl. 22)
1253102
$64.75
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
BRACKET, SILENCER
5211274
$9.70
33
SILENCER,INT.MOD,DRILLED
5432647
$214.51
34
BOOT
5410403
$12.99
35
SCREW(10)
7512222
$2.39
