HOOD WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388A011)

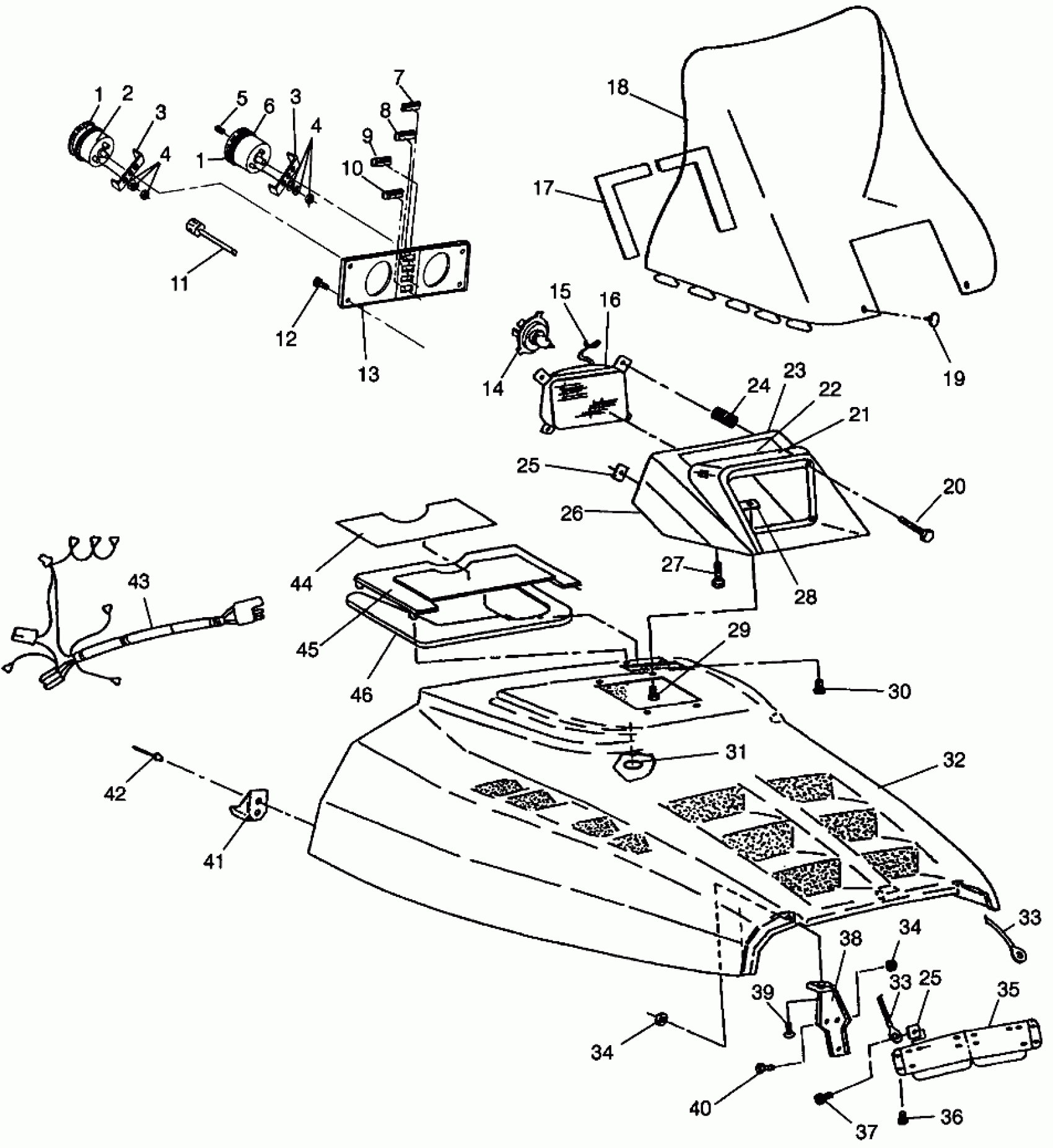

Polaris WIDETRAK LX - 0982065 HOOD WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388A011) Diagram
#
1
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
1
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
2
BULB TAILLIGHT(10)
4030015
$4.03
2
TACHOMETER,BACKLIT(2P) (Incl. 1, 3, 4)
3280149
Unavailable
3
BRKT,SPEEDO/TACH
3280153
Unavailable
3
BRKT,SPEEDO/TACH
3280153
Unavailable
4
WASHER,FLAT,(10)
3280157
$2.39
4
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
4
WASHER,FLAT,(10)
3280157
$2.39
4
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
5
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
6
SPEEDOMETER,BACKLIT (Incl. 1, 3-5)
3280148
Unavailable
6
SPEEDO,KILOMETER (Incl. 1, 3-5) (Euro)
3280159
$113.99
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR'REVERSE'WARN.
4040019
$28.32
11
CABLE,SPEEDO.
3280094
$60.70
12
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
13
BEZEL, INST.
5430924
Unavailable
14
BULB,QUARTZ.H/L,INDY
2870448
$24.99
15
RETAINER,H/L BULB
4032063
Unavailable
16
HEADLIGHT ASM. (Incl. 14, 15)
4032040
Unavailable
17
PAD,W/S,LH,BLACK
5810437
Unavailable
17
PAD,W/S,RH,BLACK
5810438
$1.67
18
WINDSHIELD,CLR,X-HIGH
5431630
Unavailable
19
RIVET,PLASTI-LOC.(50)
7621509
$1.49
20
SCREW, ADJ.(10)
4032003
Unavailable
21
DECAL,POD WARN.TOP [No Longer Available]
7073111
Unavailable
22
DECAL,POD WARN.BOTT. [No Longer Available]
7073112
Unavailable
23
HSG,INST,TOP,BLK
5430923-070
Unavailable
24
SPRING-ADJ
4032002
Unavailable
25
NUT, SPEED(10)
7670056
Unavailable
25
NUT, SPEED(10)
7670056
Unavailable
26
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
27
SCREW(10)
7512009
Unavailable
28
NUT, SPEED(10)
7670057
$1.49
29
SCREW, SEMS(10)
7512283
$3.99
30
SCREW(10)
7511840
Unavailable
31
RETAINER,WINDSHIELD,(10)
5410970
$1.49
32
HOOD,WDTRK,LIQ. (Incl. Foam & Foil)
2631748-210
Unavailable
33
CABLE,HD.RETAINER
7080360
$24.27
33
CABLE,HD.RETAINER
7080360
$24.27
34
NUT(10)
7542153
$1.59
34
NUT(10)
7542153
$1.59
35
PLATE,RE-INF.,(HD.)
5222105
$49.51
36
SCREW(10)
7511861
Unavailable
37
SCREW(10)
7511989
Unavailable
38
HINGE ASM,HD,BLK
2635005-067
$16.67
39
BOLT-CARRIAGE(10)
7512263
$3.99
40
BOLT(10)
7512193
$2.39
41
CUP, HOOD LATCH,(10)
5430733
$4.84
42
RIVET(50)
7621334
$1.49
43
HARNESS,H/L POD
2460552
$22.06
44
DECAL,DASH WARN.(PARK BRK) Substituted by 7075457
7075440
Unavailable
45
PANEL ASM,INTAKE,EMERALD (Incl. 44)
2620094-210
Unavailable
46
SEAL, INTAKE
5810597
Unavailable
