FRONT TORQUE ARM WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388B006)

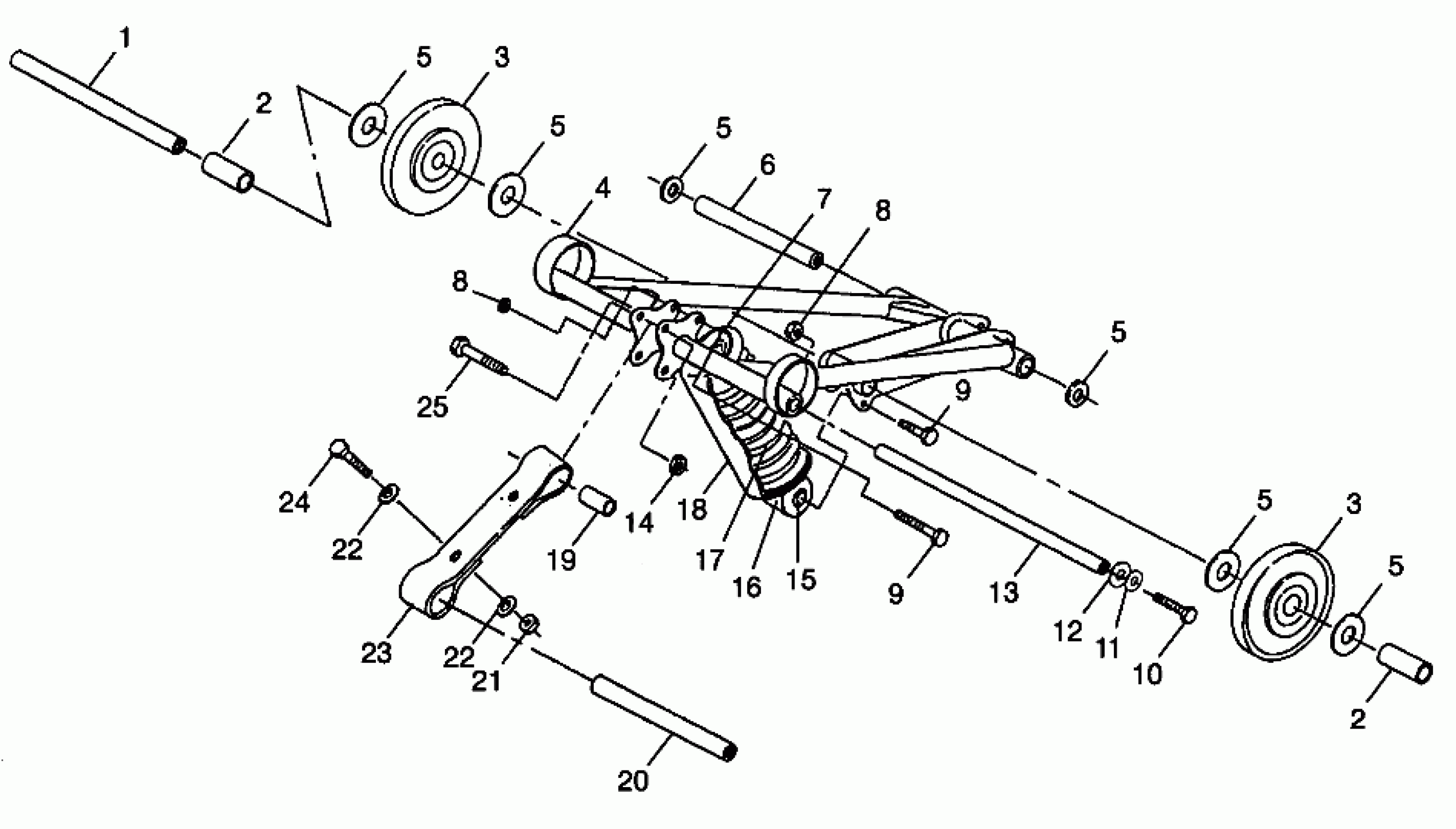

Polaris WIDETRAK LX - 0982065 FRONT TORQUE ARM WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388B006) Diagram
#
Description
Price
1
Shaft, Spanner (See Pg. A22, Ref. 45)
-------
Unavailable
2
TUBE,OUTER SPACER
5333012
$12.99
2
TUBE,OUTER SPACER
5333012
$12.99
3
Asm., Bogie Wheel (See Pg. A22, Ref. 28)
-------
Unavailable
3
Asm., Bogie Wheel (See Pg. A22, Ref. 28)
-------
Unavailable
4
ARM,F.TORQUE,HD,LX,BLK
1541044-067
Unavailable
5
MACHINERY BUSHING(10)
7556301
$3.19
5
MACHINERY BUSHING(10)
7556301
$3.19
5
MACHINERY BUSHING(10)
7556301
$3.19
5
MACHINERY BUSHING(10)
7556301
$3.19
5
MACHINERY BUSHING(10)
7556301
$3.19
5
MACHINERY BUSHING(10)
7556301
$3.19
6
Shaft, Front Pivot Arm (See Pg. A22, Ref. 43)
-------
Unavailable
7
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
8
NUT LOCK(10)
7542411
$3.19
8
NUT LOCK(10)
7542411
$3.19
9
BOLT Substituted by 7515491
7515433
$1.59
9
BOLT Substituted by 7515491
7515433
$1.59
10
SCREW,(10)
7517247
$3.19
11
WASHER(10)
7552603
$1.49
12
WASHER(10)
7555893
$1.49
13
Shaft
5020909
$35.99
14
NUT-LOCK(10)
7542439
$1.49
15
SHOCK,FR.TRACK Substituted by 7041742
7041711
$214.99
16
DESC NOT_AVAILABLE
5241276
Unavailable
17
SPRING,FR.TRACK,BLK
7041712-067
$52.60
18
SHIELD-SPRING
5430671
$24.27
19
BUSHING,SUSPENSION
5010212
Unavailable
20
Shaft, Rear Pivot Arm (See Pg. A23, Ref. 58)
-------
Unavailable
21
NUT,NYLOC,(10)
7542344
$3.99
22
WASHER(10)
7555716
$1.59
22
WASHER(10)
7555716
$1.59
23
STRAP, LIMITER
5410397
Unavailable
24
SCREW ,(10)
7517313
$4.79
25
BOLT(10)
7515438
$4.79
